What is RGB Aura Sync?

RGB Aura Sync is a lighting coordination feature that allows supported MCHOSE devices to display unified RGB lighting effects.

It is mainly used to synchronize RGB effects across different product types, such as:

• Keyboards
• Mice
• Audio devices

With RGB Aura Sync, supported devices can display coordinated dynamic lighting effects and music-reactive lighting for a more unified desktop setup.

Driver and System Requirements

RGB Aura Sync has the following requirements:

• It is only supported in the M HUB desktop client
• It is not supported in the web-based driver
• The sync effect will stop after the M HUB desktop client is closed
• It currently supports Windows 10 / Windows 11 64-bit systems

When enabling RGB Aura Sync for the first time, a pop-up may appear asking you to install a required Microsoft audio support library. This library is an official Microsoft component used to read audio data for lighting sync. It is safe to install.

How to Customize RGB Aura Sync

You can customize RGB Aura Sync in the M HUB desktop client.

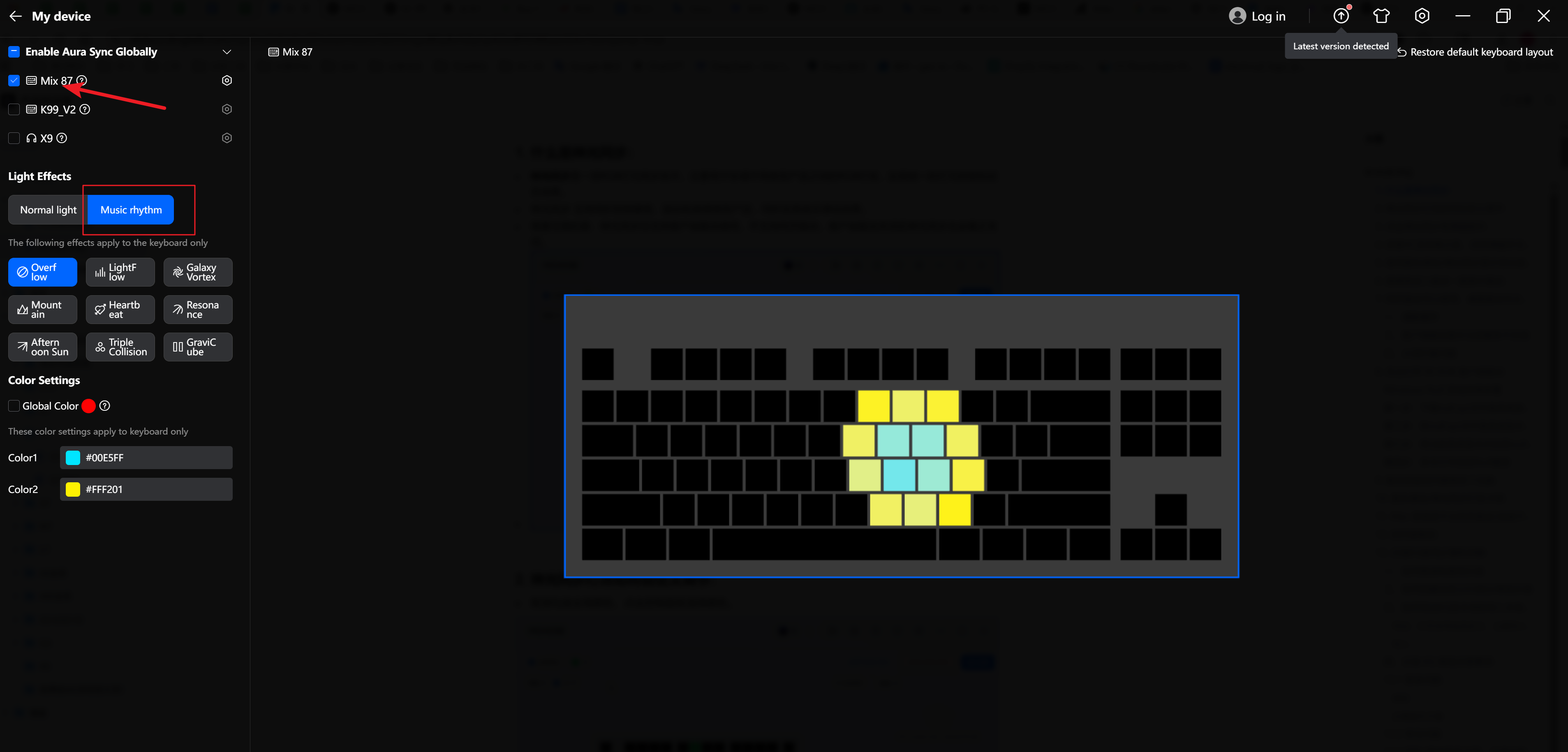

1. Disable Global Color

To customize colors for individual devices, first uncheck Global Color.

After disabling Global Color, you can set different lighting colors for each supported device, such as your keyboard, mouse, or audio device.

2. Choose a Color Mode

In the control panel, you can choose different color modes, including:

• Single color
• Gradient single color

Gradient single color supports up to 4 gradient colors.

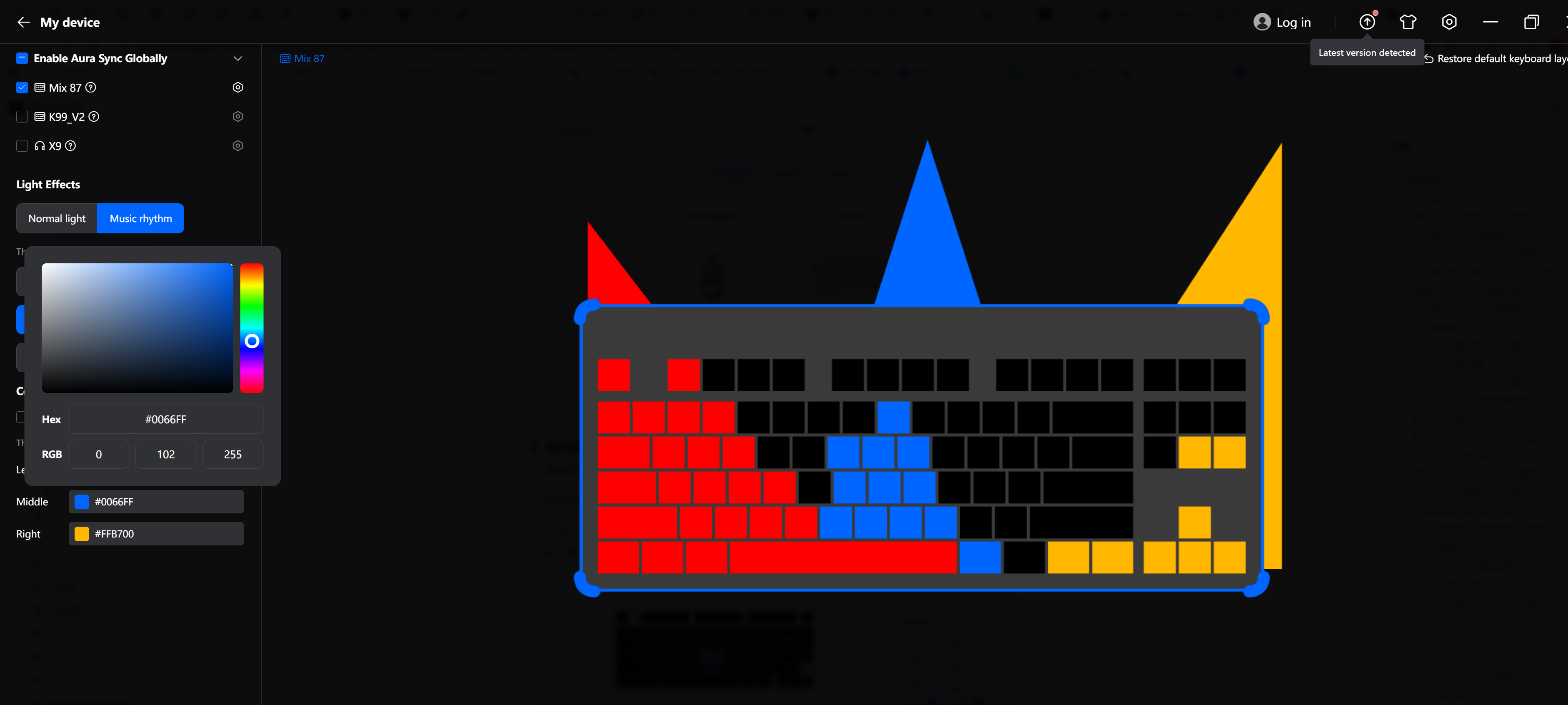

3. Customize Colors

You can customize colors in several ways:

• Select a color directly from the color palette
• Enter a Hex color code
• Enter RGB values manually

4. Adjust Lighting Effects and Parameters

In the RGB Aura Sync control panel, you can select different lighting effects and adjust supported effect parameters.

Depending on the effect, you may be able to adjust options such as:

• Effect type
• Scaling
• Rotation
• Other supported lighting parameters

Important Notes and Limitations

Please note the following before using RGB Aura Sync:

1. The web-based driver does not support RGB Aura Sync
   This feature must be used in the M HUB desktop client.
2. RGB Aura Sync stops when the desktop client is closed
   The feature depends on the M HUB desktop client running in the background.
3. Keyboard brightness adjustment is not supported
   RGB Aura Sync currently does not support adjusting keyboard lighting brightness.
4. It may use system memory
   Enabling RGB Aura Sync will use some system memory. The actual usage depends on your computer configuration and the number of connected devices.
5. 2.4G mode may have incomplete lighting display
   Due to hardware limitations, some devices may not display the full sync effect in 2.4G mode. For the best experience, we recommend using a wired connection.
