How to Use Onboard Profiles in M HUB for Mouse

What are onboard profiles?

Onboard profiles allow you to save your personalized mouse settings directly to the mouse through M HUB.

These settings may include:

• Macros
• Button mapping
• DPI settings
• Other supported mouse parameters

Once saved to an onboard profile, the settings are stored on the mouse itself.

Core benefit:
After saving settings to onboard profiles, you can use the mouse on another computer without installing M HUB again. The mouse can work with your saved settings as soon as it is connected.

Firmware and model support

To use multiple onboard profiles, please update your mouse firmware to the latest version.

Multiple onboard profiles are currently supported on:

• All A7 Series mice

Other mouse models are not supported at this time.

Onboard profiles vs custom profiles

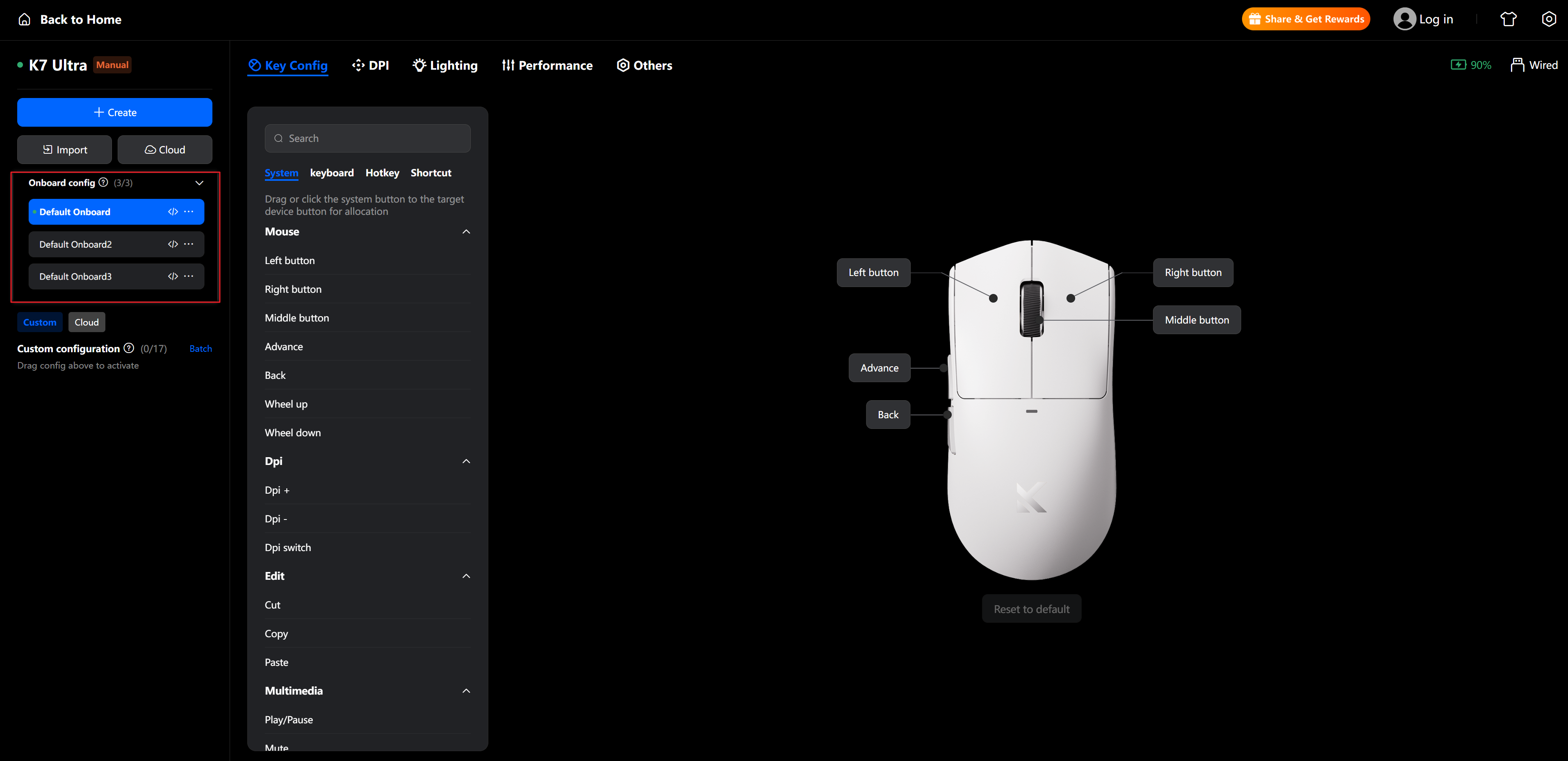

Onboard profiles

Onboard profiles are stored directly on the mouse. They remain available even if you change computers or browsers.

Note:
When switching to Bluetooth mode under the current onboard profile, the profile settings will also be saved.

Custom profiles

Custom profiles are used only as preset configurations in the current browser or computer. They are not automatically synced to other browsers or computers.

To use a custom profile on your mouse, move it to Onboard Profiles. Once moved, the profile will be loaded onto the mouse.

How to create, export, and import profiles

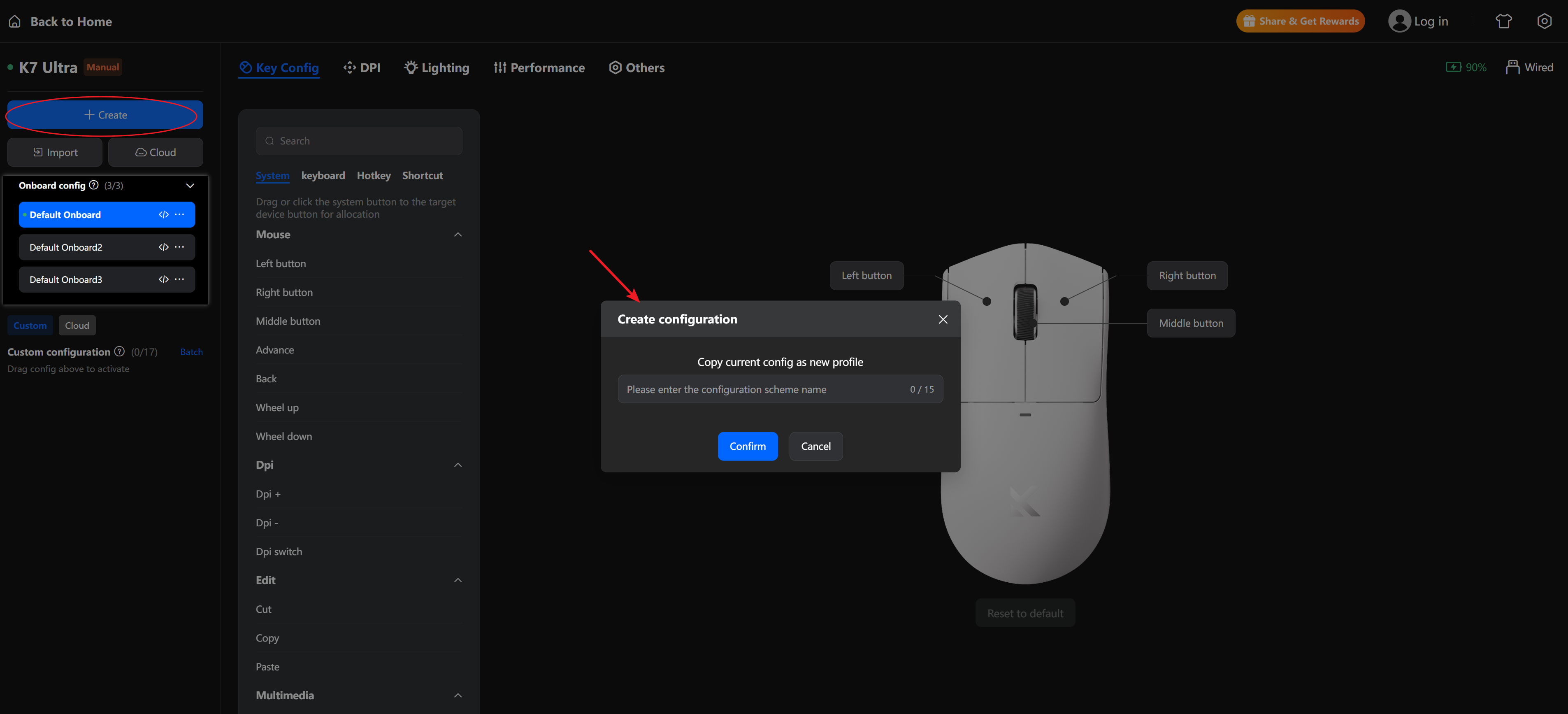

Create a profile

Click the Create Profile button in M HUB.
Enter a profile name, then click Confirm.

Export a profile

Move your cursor to the “...” menu next to the profile, then select Export.

The profile will be exported as a JSON file if export is supported for your current version.

Import a profile

Click Import, then select a compatible profile file or import method.

Please make sure the imported profile matches the same mouse model. Profiles from different models may not be compatible.

How to use profile codes

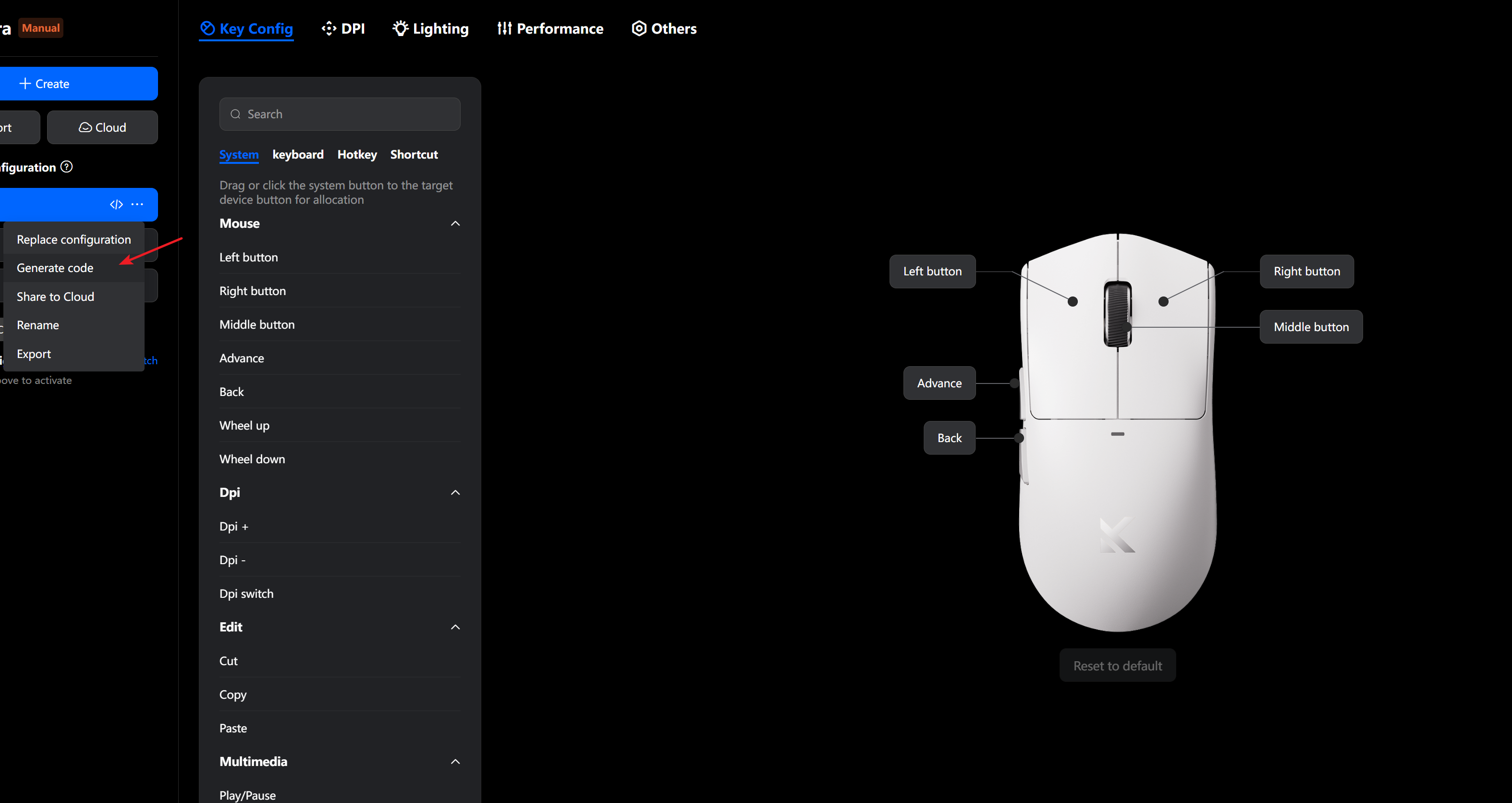

Generate a profile code

Move your cursor to the “...” menu next to the profile, then select Generate Profile Code.

Import with a profile code

1. Click the Import button.
2. Select Import by Profile Code.
3. Paste the profile code into the input box.
4. Choose where to save the profile.
5. Click Confirm.

Note:
Profile codes do not support cross-device import. Please use profile codes only with compatible devices.

FAQ

Can I use onboard profiles without opening M HUB?

Yes. After the profile is saved to the mouse, the settings are stored on the mouse itself. You can use the mouse on another computer without installing M HUB.

Will onboard profiles stay after changing computers or browsers?

Yes. Onboard profiles are stored on the mouse, so they remain available even if you switch computers or browsers.

Are custom profiles saved to the mouse?

No. Custom profiles are only local presets. To use them on the mouse, move them to Onboard Profiles.

Which mouse models support multiple onboard profiles?

Currently, multiple onboard profiles are supported on all A7 Series mice. Other models are not supported at this time.

Can I import profile codes across different devices?

No. Profile codes do not support cross-device import.
