How to Use Onboard Profiles in M HUB for Keyboards

What are onboard profiles?

Onboard profiles allow you to save your personalized keyboard settings directly to the keyboard through M HUB.

These settings may include:

• Macros
• Key remapping
• Lighting effects
• Actuation distance
• Rapid Trigger settings
• Other supported keyboard parameters

Once saved to an onboard profile, the settings are stored on the keyboard itself.

Core benefit:
After saving settings to onboard profiles, you can use the keyboard on another computer without installing M HUB again. The keyboard will keep your saved settings as soon as it is connected.

Firmware and model support

To use multiple onboard profiles, please update your keyboard firmware to the latest version.

Multiple onboard profiles are supported on:

• All MCHOSE magnetic switch keyboards, except Zero75 and Zero75S
• Mechanical keyboard K87S

Note:
Some functions may vary depending on the keyboard model and firmware version.

Onboard profiles vs inactive profiles

Onboard profiles

Onboard profiles are stored directly on the keyboard. They remain available even if you change computers or browsers.

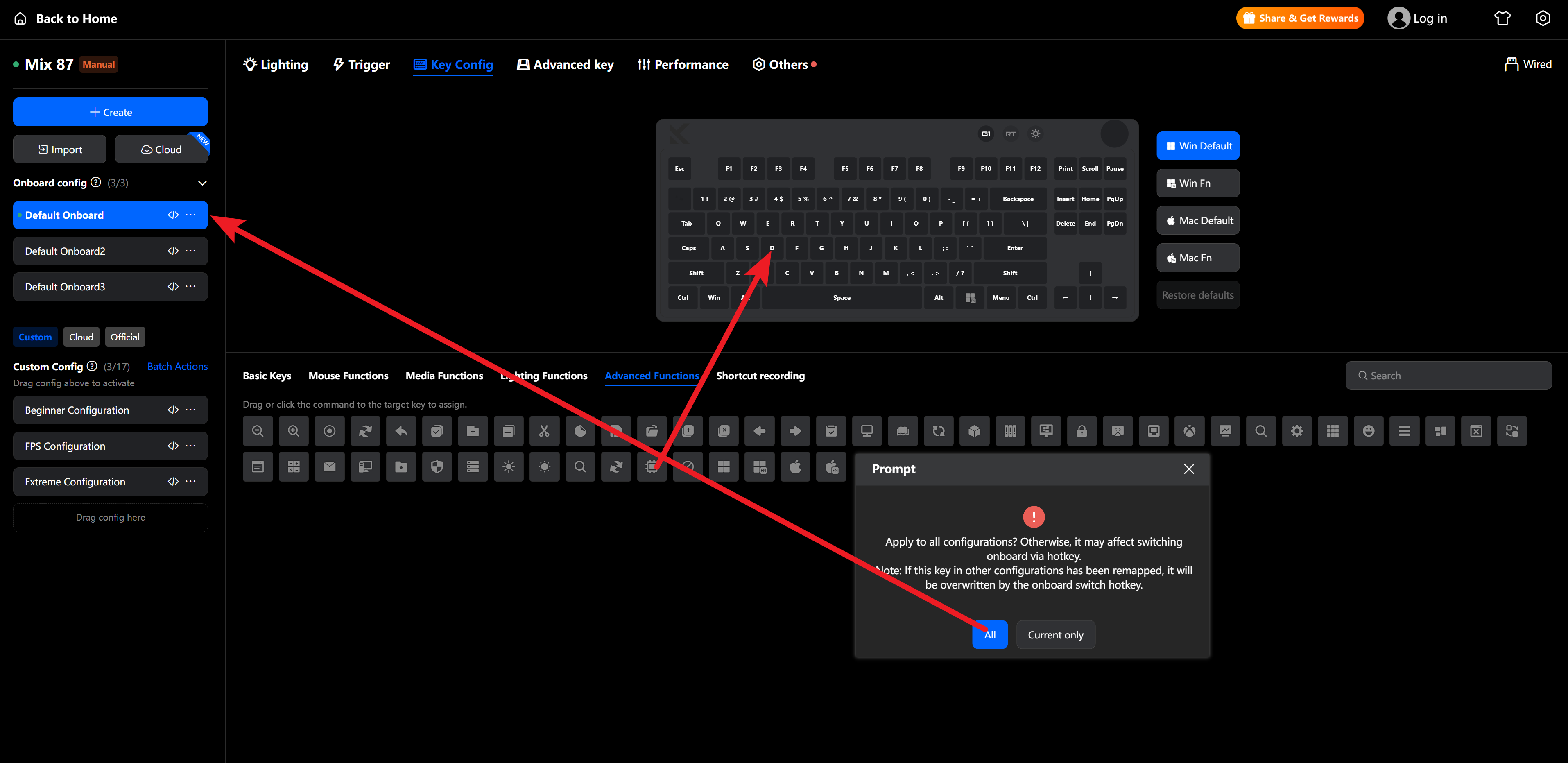

To switch onboard profiles without opening M HUB:

1. Open M HUB.
2. Go to the key remapping settings.
3. Bind the Switch Onboard Profile function to any key.
4. Select Apply to All Onboard Profiles.
5. Press the assigned key on the keyboard to switch profiles.

Note:
Polling rate settings are currently not supported in onboard profiles.

Inactive profiles

Inactive profiles are used only as preset configurations in the current browser or computer. They are not automatically synced to other browsers or computers.

To use an inactive profile on your keyboard, move it to Onboard Profiles. Once moved, the profile will be loaded onto the keyboard.

How to create, export, and import profiles

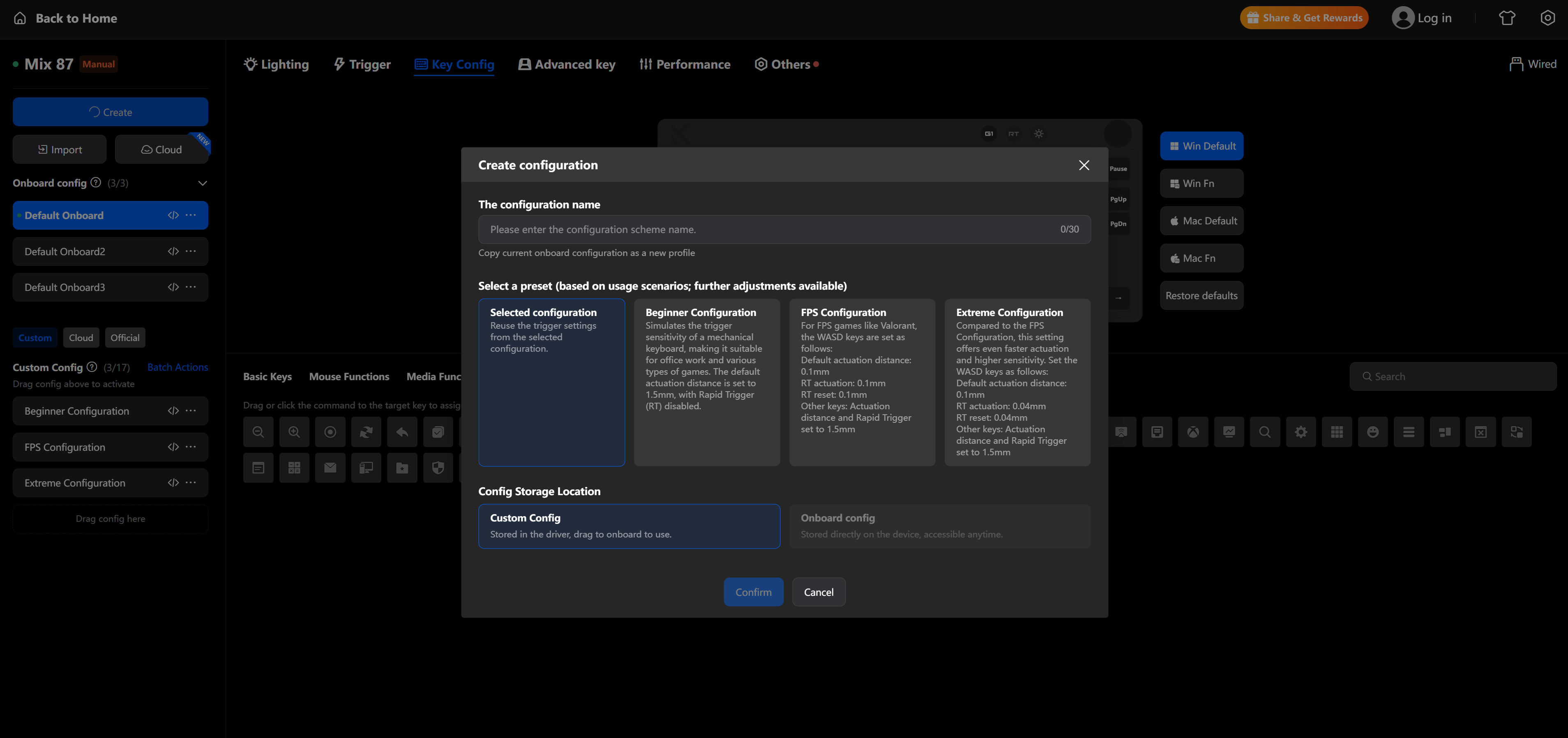

Create a profile

Click the Create Profile button in M HUB.

M HUB also provides official preset profiles that can be selected and used directly, such as:

• Beginner
• Quick Stop
• Extreme

These presets are designed for different usage preferences and can be used as a starting point for customization.

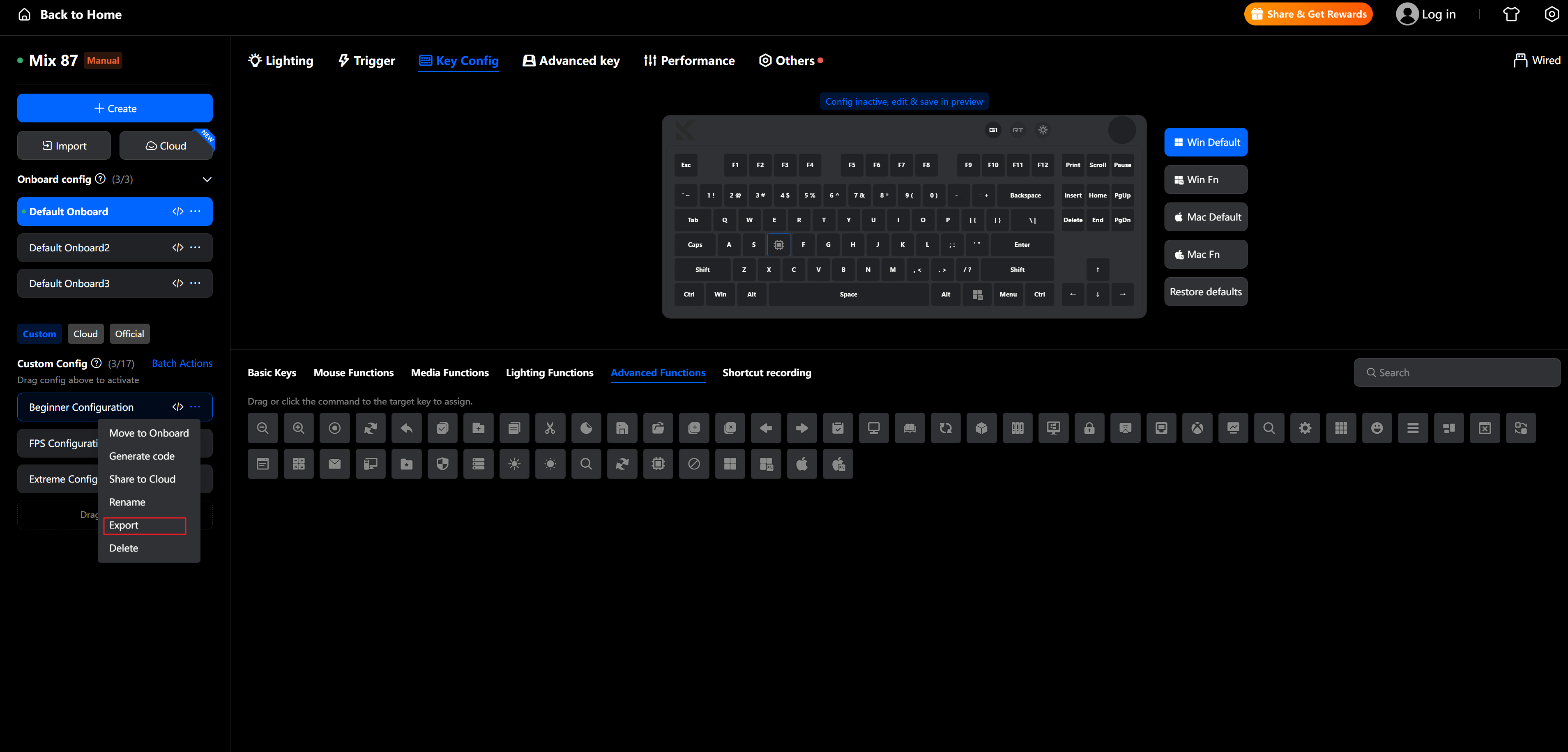

Export a profile

Move your cursor to the “...” menu next to the profile, then select Export.

The profile will be exported as a JSON file.

Import a profile

Click Import, then select a compatible JSON file.

Please make sure the imported file matches the same keyboard model. Profiles from different models may not be compatible.

How to use profile codes

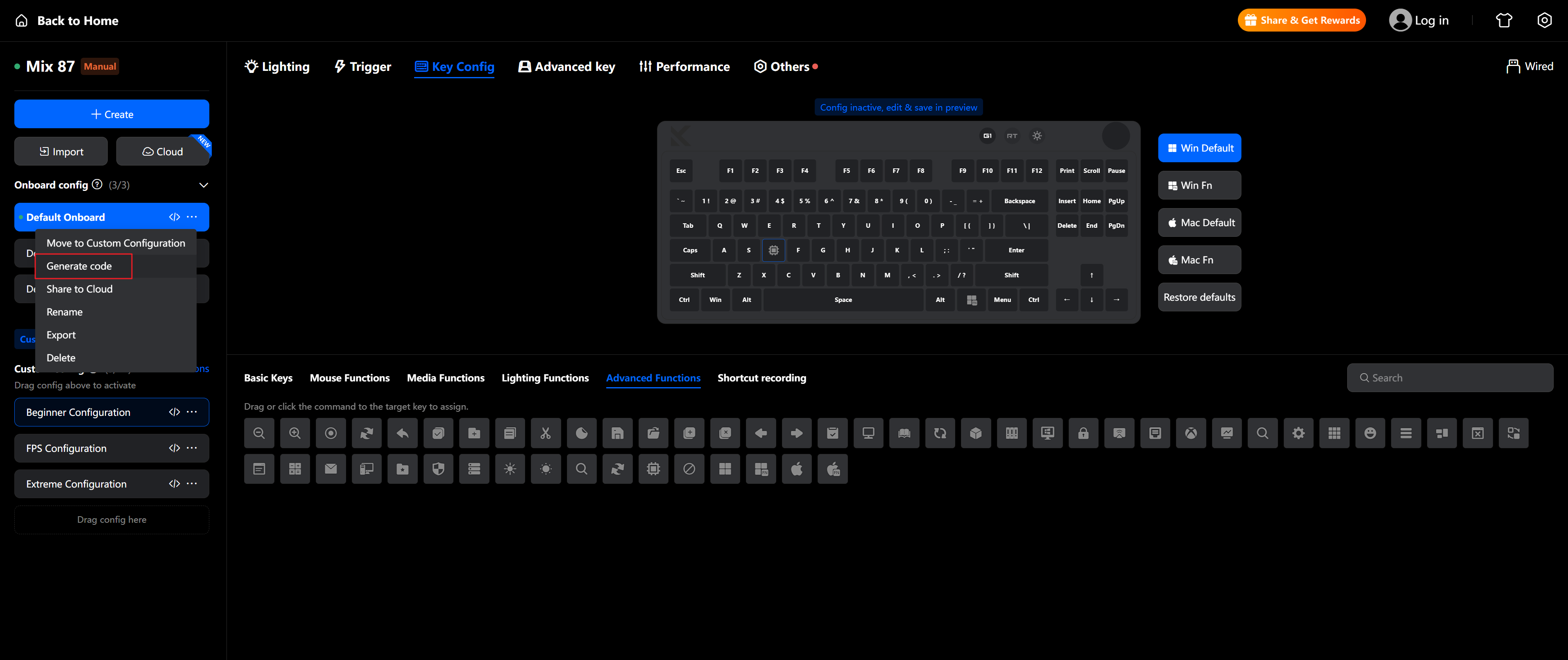

Generate a profile code

Move your cursor to the “...” menu next to the profile, then select Generate Profile Code.

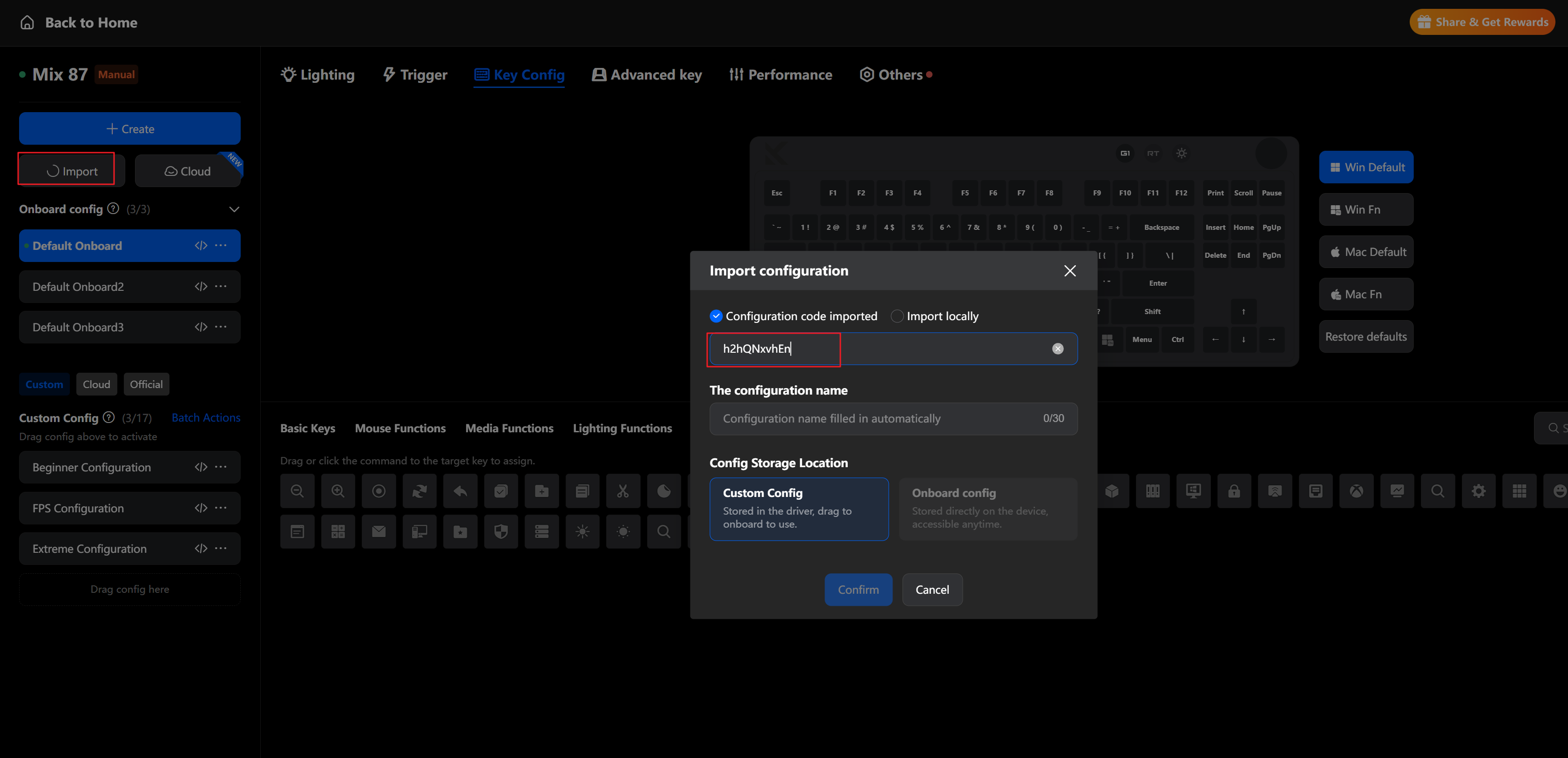

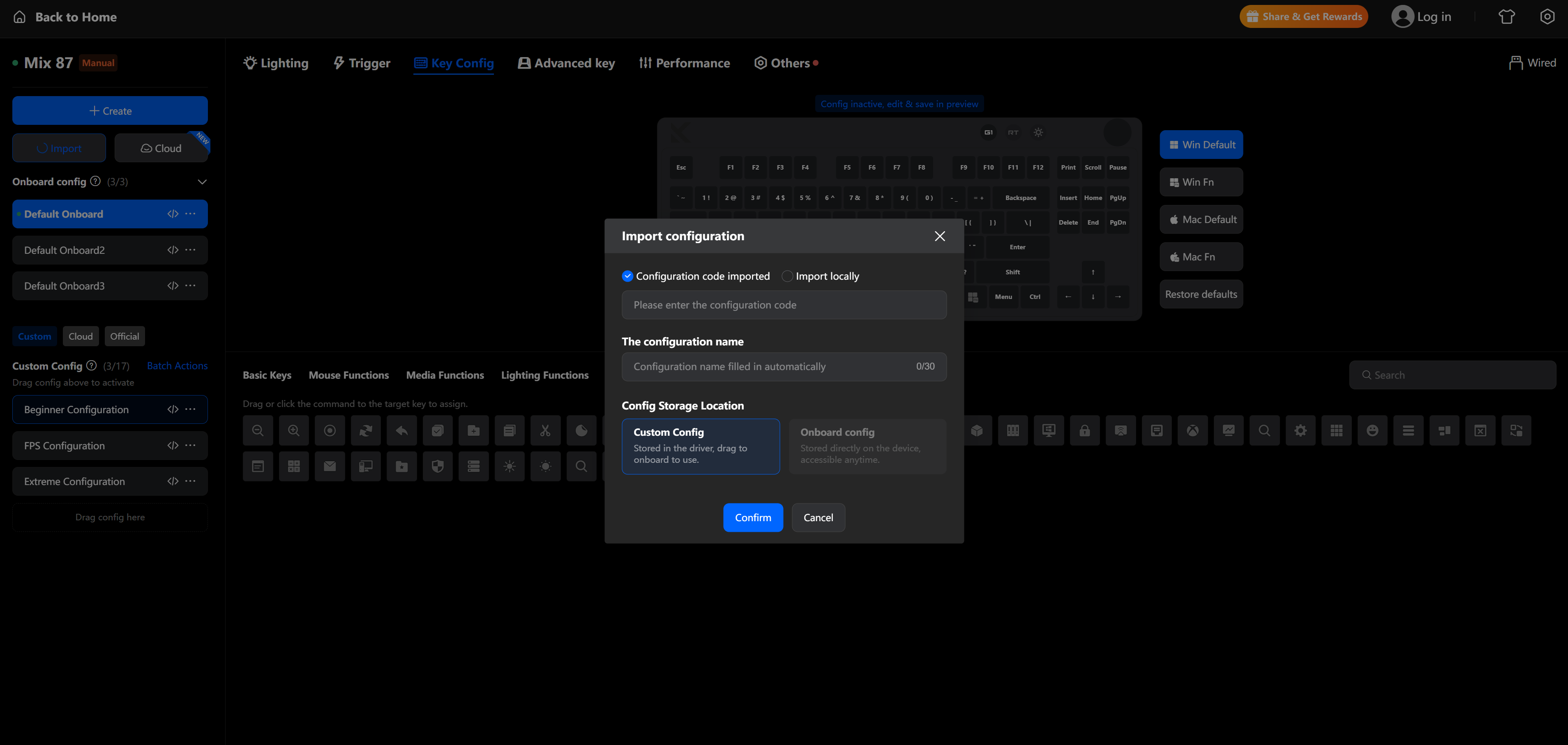

Import with a profile code

1. Click the Import button.
2. Select Import by Profile Code.
3. Paste the profile code into the input box.
4. Choose where to save the profile.
5. Click Confirm.

Note:
Profile codes do not support cross-device import. Please use profile codes only with compatible devices.

FAQ

Can I use onboard profiles without opening M HUB?

Yes. After the profile is saved to the keyboard and the Switch Onboard Profile function is assigned to a key, you can switch profiles directly from the keyboard.

Will onboard profiles stay after changing computers?

Yes. Onboard profiles are stored on the keyboard, so they remain available when you use the keyboard on another computer.

Are inactive profiles saved to the keyboard?

No. Inactive profiles are only local presets. To use them on the keyboard, move them to Onboard Profiles.

Can I import profile codes across different devices?

No. Profile codes do not support cross-device import.

Does polling rate support onboard profiles?

No. Polling rate settings are currently not supported in onboard profiles.
