MCHOSE A5 V3 Tri-mode Gaming Mouse User Guide

Aurora
Updated

Welcome to the MCHOSE A5 V3 Tri-mode Gaming Mouse User Guide. This guide provides detailed information about the product structure, connection methods, software configuration, performance settings, and additional functions.

Whether you are setting up the mouse for the first time or customizing advanced features, this guide will help you get the best experience from your A5 V3.

Table of Contents

1. Product Overview

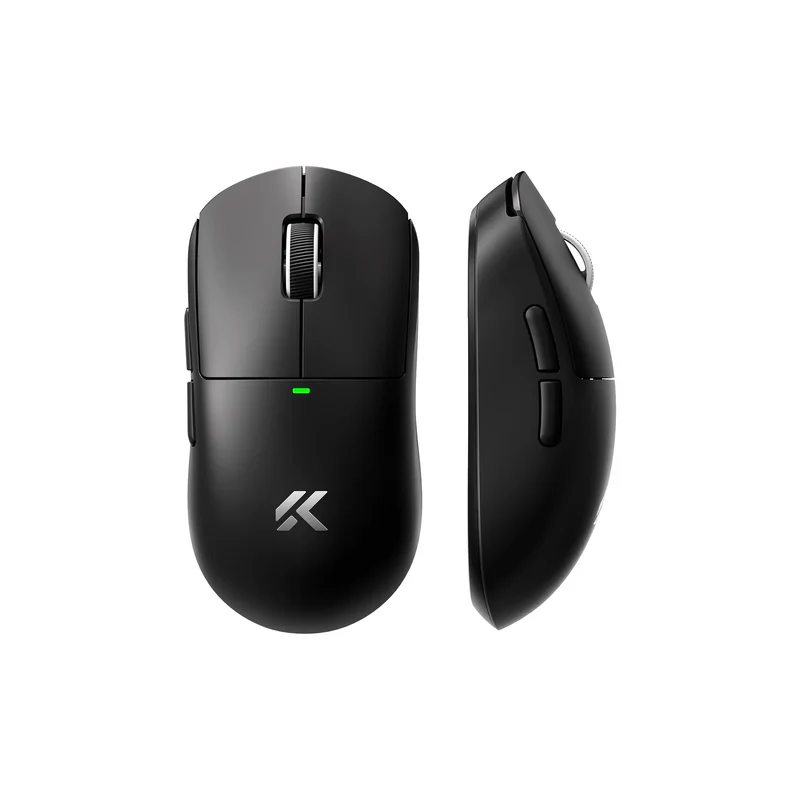

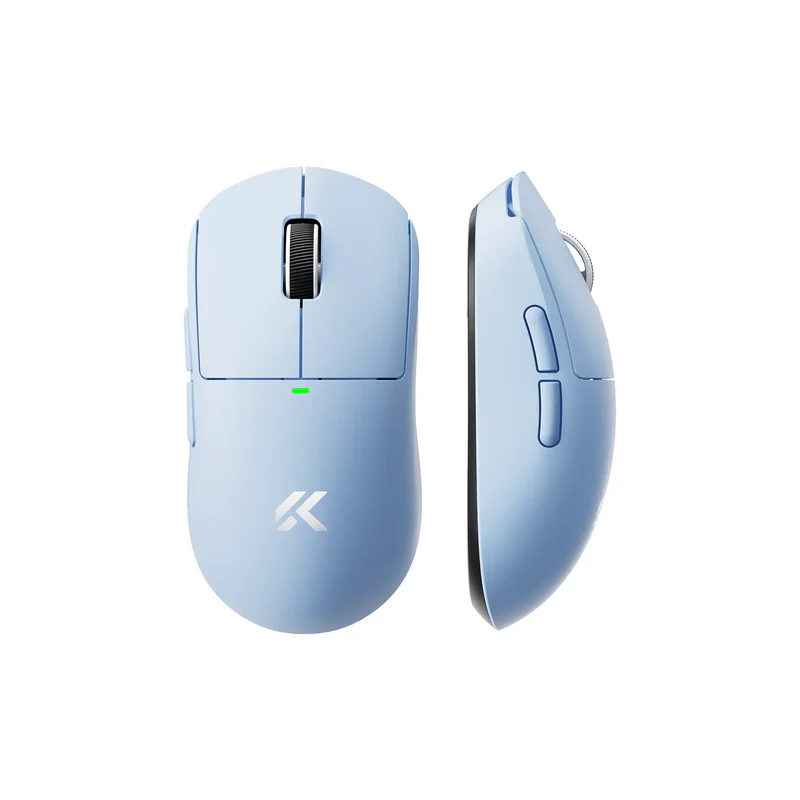

The MCHOSE A5 V3 Tri-mode Gaming Mouse is a high-performance wireless gaming mouse designed for competitive gaming and everyday use. It supports three connection methods:

  • USB Wired Mode — Provides a stable connection and supports all configuration features.
  • 2.4GHz Wireless Mode — Delivers low-latency wireless performance for gaming.
  • BT Mode — Provides convenient wireless connectivity for laptops and mobile devices.

Using MCHOSE HUB,  users can customize button functions, adjust DPI settings, configure performance options, and update firmware.

1.1 Package Contents

The A5 V3 package includes the following items:

  • A5 V3 Gaming Mouse ×1
  • 2.4GHz Wireless Receiver ×1
  • USB Type-C Charging Cable ×1
  • Receiver Adapter ×1
  • User Manual ×1
Note: Package contents may vary slightly depending on region, sales channel, or product version.

1.2 Product Specifications

Specification Details
Product Name MCHOSE A5 V3 Tri-mode Gaming Mouse
Connection Modes USB Wired / 2.4GHz Wireless / BT
Interface USB Type-C
Software Support MCHOSE HUB
Battery Built-in rechargeable lithium battery
Note: Specifications may vary depending on the specific product version. Please refer to the official product page for the latest specifications.

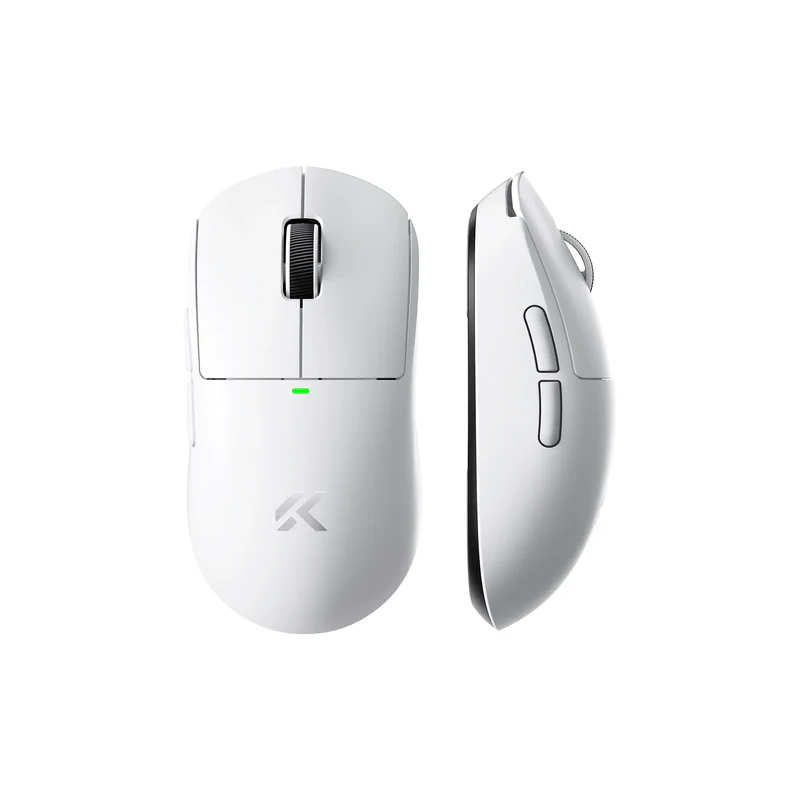

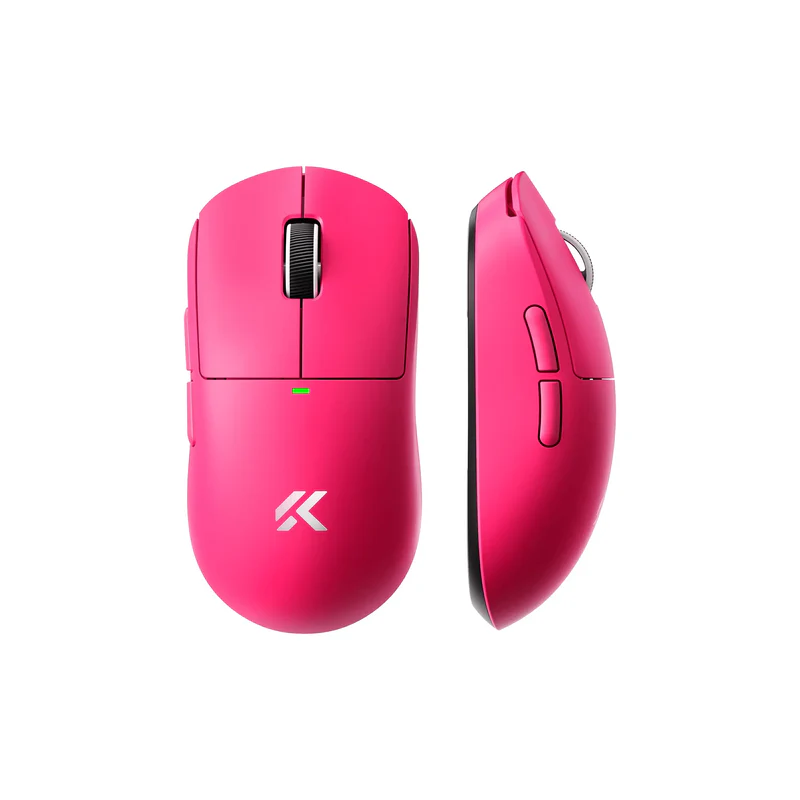

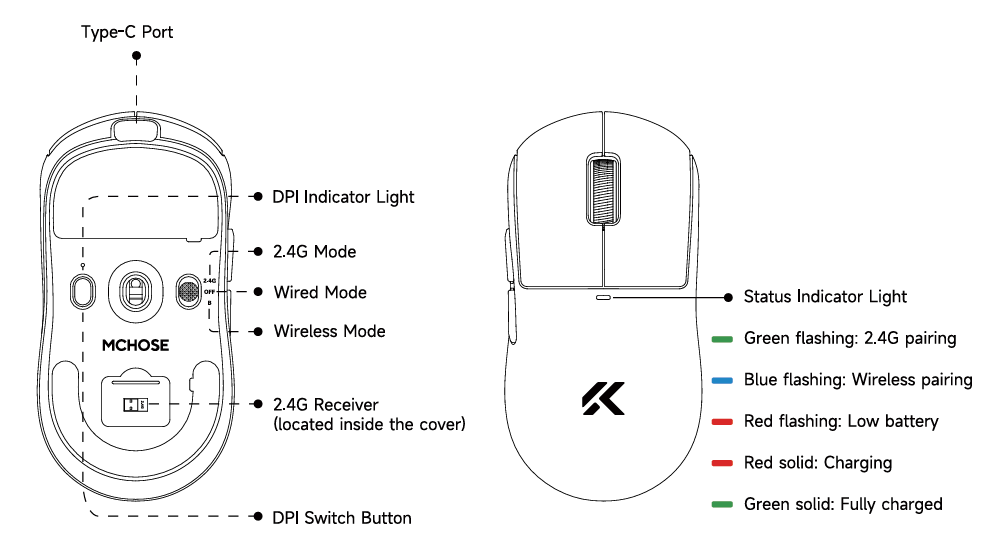

1.3 Mouse Layout

The A5 V3 includes the following buttons and components:

  • Left Button
  • Right Button
  • Scroll Wheel / Middle Button
  • DPI Button
  • Side Buttons
  • USB Type-C Port
  • Power / Connection Mode Switch
  • Optical Sensor
  • 2.4GHz Wireless Receiver Storage Area
Tip: The programmable buttons can be customized through MCHOSE HUB to match your gaming or productivity needs.

2. Getting Started

Before using the A5 V3, please charge the mouse and select the preferred connection method according to your usage scenario. The A5 V3 supports three connection modes: USB Wired Mode, 2.4GHz Wireless Mode, and BT Mode.

2.1 Charging the Mouse

The A5 V3 features a built-in rechargeable battery. Use the included USB Type-C cable to charge the mouse.

Charging Steps

  1. Connect the USB Type-C cable to the charging port on the front of the mouse.
  2. Connect the USB-A end of the cable to your computer or another compatible USB power source.
  3. The mouse will begin charging automatically.
  4. The mouse can continue to be used while charging.
Tip: Using Wired Mode while charging allows you to continue gaming without interrupting your workflow.

Charging Indicator

Indicator Status Description
Red Light Charging
Light Off Fully charged or charging indicator inactive
Note: Battery performance may vary depending on polling rate, connection mode, performance settings, and usage habits.

2.2 Wired Mode Connection

USB Wired Mode provides the most stable connection and is recommended for firmware updates, driver configuration, and users who prefer a direct connection.

Connection Steps

  1. Connect the USB Type-C cable to the mouse.
  2. Connect the USB-A end to your computer.
  3. The mouse will automatically enter Wired Mode.
  4. Your computer will detect the mouse automatically.
Tip: Wired Mode supports all MCHOSE HUB features, including button customization, DPI adjustment, macro settings, and firmware updates.

Recommended Uses

  • Firmware updates
  • Driver configuration
  • Competitive gaming
  • Battery charging

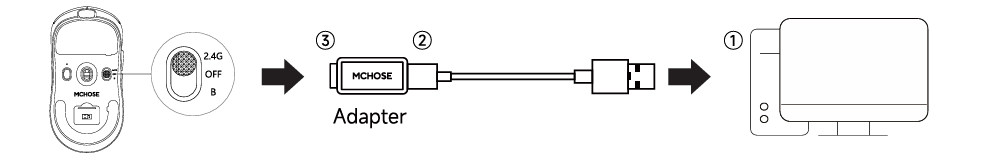

2.3 2.4GHz Wireless Mode Connection

The 2.4GHz wireless mode provides a low-latency wireless connection designed for gaming and high-performance use.

Connection Steps

  1. Connect the USB receiver to the included receiver adapter.
  2. Connect the adapter to your computer's USB port.
  3. Turn the power switch to the 2.4GHz Wireless Mode position.
  4. The mouse will automatically connect to the receiver.
Tip: For the best wireless performance, place the receiver close to the mouse and avoid obstacles or strong wireless interference.

Receiver Placement Recommendation

For optimal signal stability:

  • Keep the receiver within approximately 30 cm of the mouse when possible.
  • Avoid placing the receiver behind large metal objects or inside enclosed areas.
  • Avoid using the receiver near other high-interference wireless devices.

2.4 BT Mode Connection

BT Mode provides convenient wireless connectivity for laptops, tablets, and other BT-enabled devices.

BT Pairing Steps

  1. Switch the mouse to BT Mode.
  2. Open the BT settings on your device.
  3. Search for available BT devices.
  4. Select MCHOSE A5 V3.
  5. Wait until pairing is completed.
Note: BT Mode is recommended for daily office work and portable devices. For gaming or advanced configuration, use Wired Mode or 2.4GHz Wireless Mode.

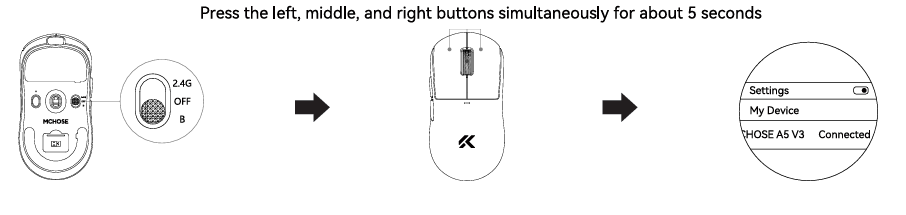

BT Pairing Reset

If the mouse cannot be detected or fails to connect, reset the BT pairing mode:

  1. Press and hold Left Button + Scroll Wheel + Right Button simultaneously.
  2. Continue holding for approximately 5 seconds.
  3. The indicator light will begin flashing, indicating pairing mode.
  4. Search for MCHOSE A5 V3 again on your device.
Tip: If the mouse was previously connected to another device, remove the old BT pairing record before reconnecting.

2.5 Switching Connection Modes

The A5 V3 allows you to switch between different connection methods depending on your needs.

Mode Recommended Use
USB Wired Mode Maximum stability, firmware updates, configuration
2.4GHz Wireless Mode Gaming and low-latency wireless use
BT Mode Office work and portable devices
Important: Only one connection mode can be active at a time. Switching modes will disconnect the current connection and activate the selected mode.

3. MCHOSE HUB Software

MCHOSE HUB is the configuration software designed for the A5 V3. It allows you to customize button functions, adjust DPI settings, create macros, manage profiles, and update device firmware.

Important: MCHOSE HUB configuration features are available only when the mouse is connected through USB Wired Mode or 2.4GHz Wireless Mode. BT Mode does not support advanced driver configuration.

3.1 Installing MCHOSE HUB

Before configuring your A5 V3, install the latest version of MCHOSE HUB from the official MCHOSE website.

Installation Steps

  1. Download the latest version of MCHOSE HUB.
  2. Open the installation package.
  3. Follow the on-screen instructions to complete installation.
  4. Connect the A5 V3 using USB Wired Mode or 2.4GHz Wireless Mode.

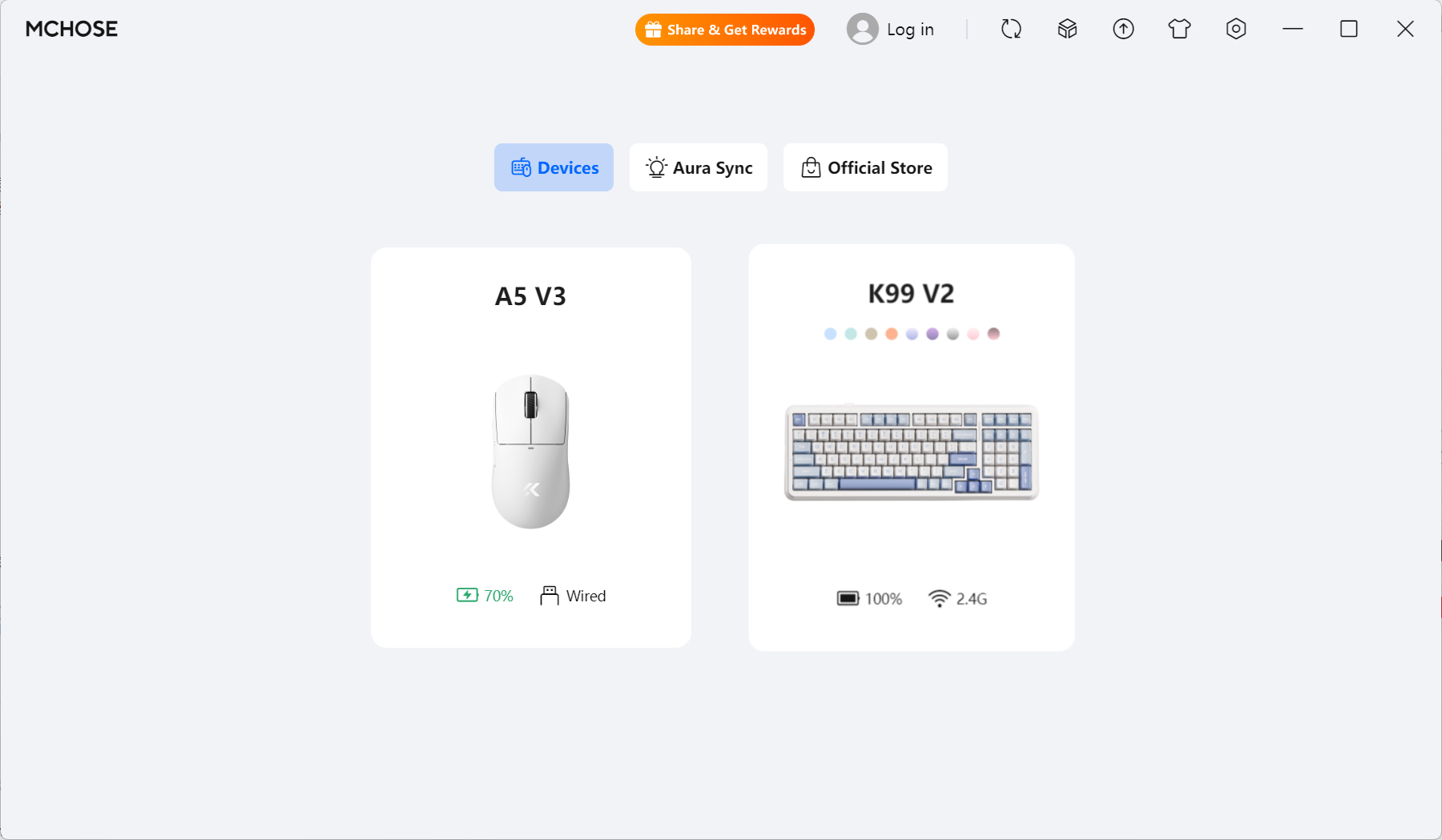

  5. Launch MCHOSE HUB and wait for the software to detect your mouse.

Tip: For the most stable connection during setup, we recommend connecting the mouse through USB Wired Mode.

If MCHOSE HUB Cannot Detect the Mouse

Try the following steps:

  • Confirm the mouse is connected through USB Wired Mode or 2.4GHz Wireless Mode.
  • Reconnect the USB cable or wireless receiver.
  • Restart MCHOSE HUB.
  • Restart your computer if necessary.
  • Ensure you are using the latest version of MCHOSE HUB.
Note: BT Mode is intended for basic wireless operation and does not support MCHOSE HUB configuration.

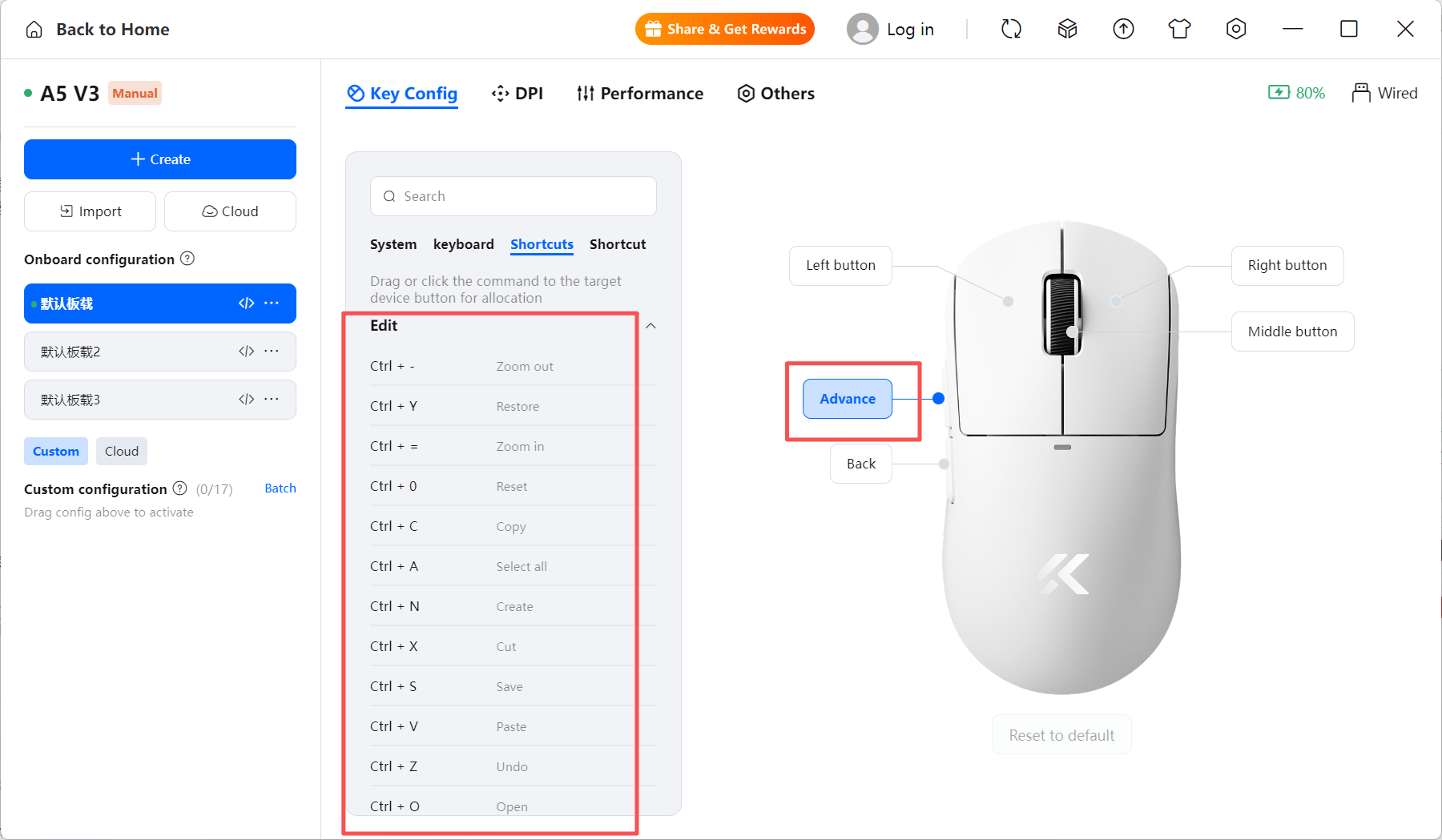

3.2 Button Customization

The A5 V3 supports programmable buttons that can be customized according to your gaming or productivity needs.

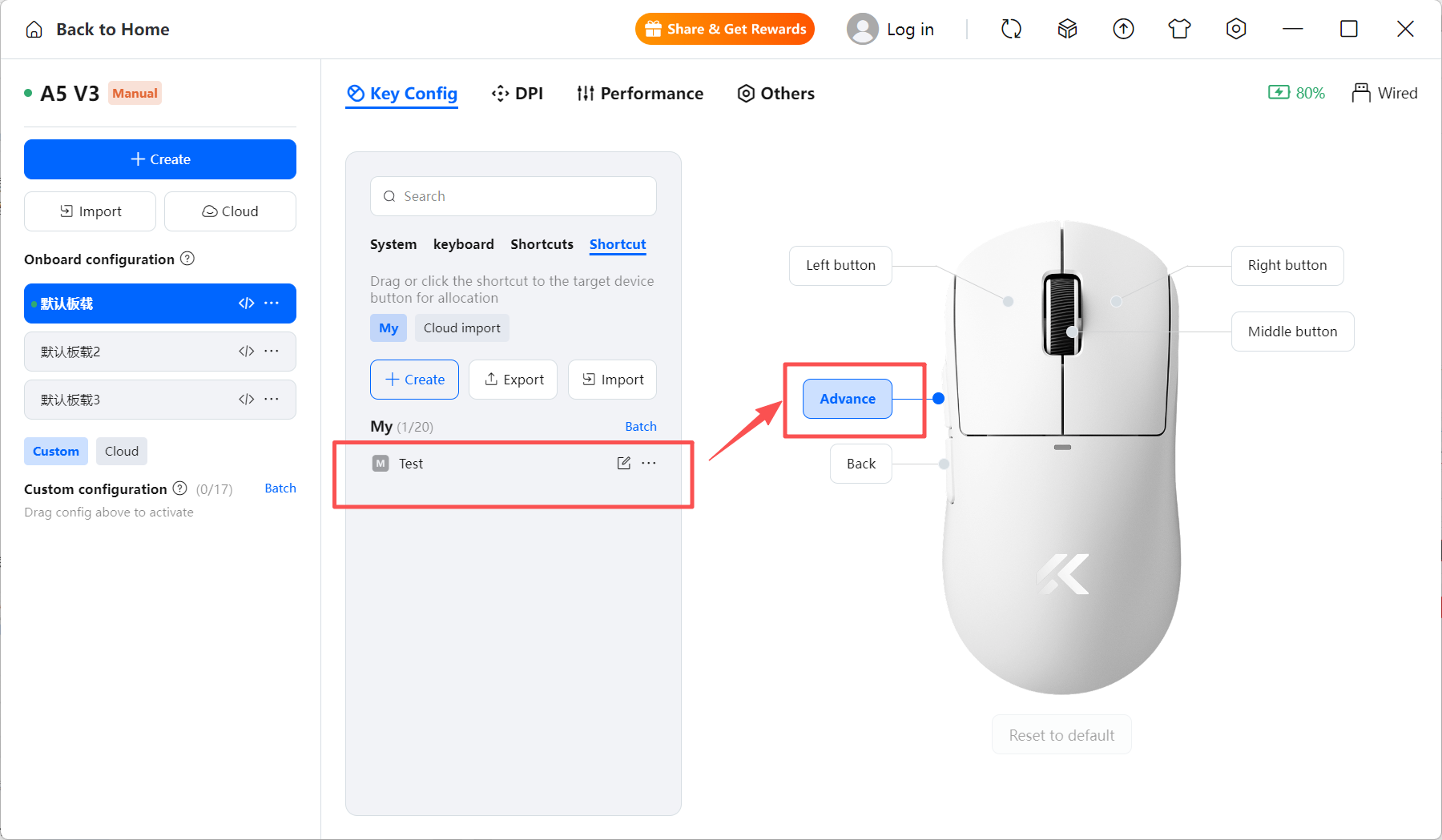

Changing Button Functions

  1. Open MCHOSE HUB.
  2. Select the Button Setting page.
  3. Click the button you want to customize.
  4. Select the desired function.
  5. Apply and save the settings.

Available Button Functions

Function Type Description

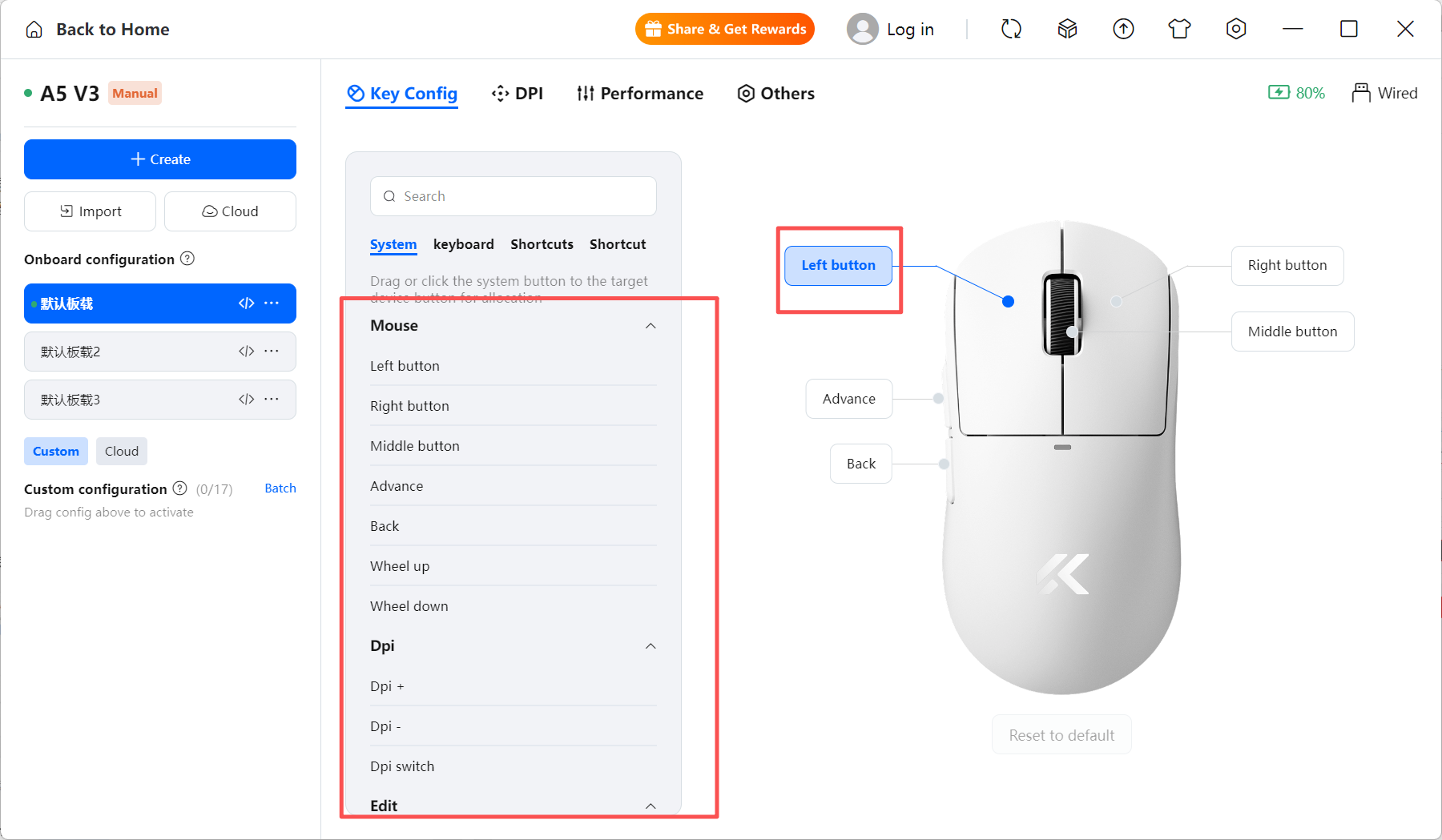

Mouse Functions

Assign standard mouse actions such as left click, right click, middle click, and side buttons.

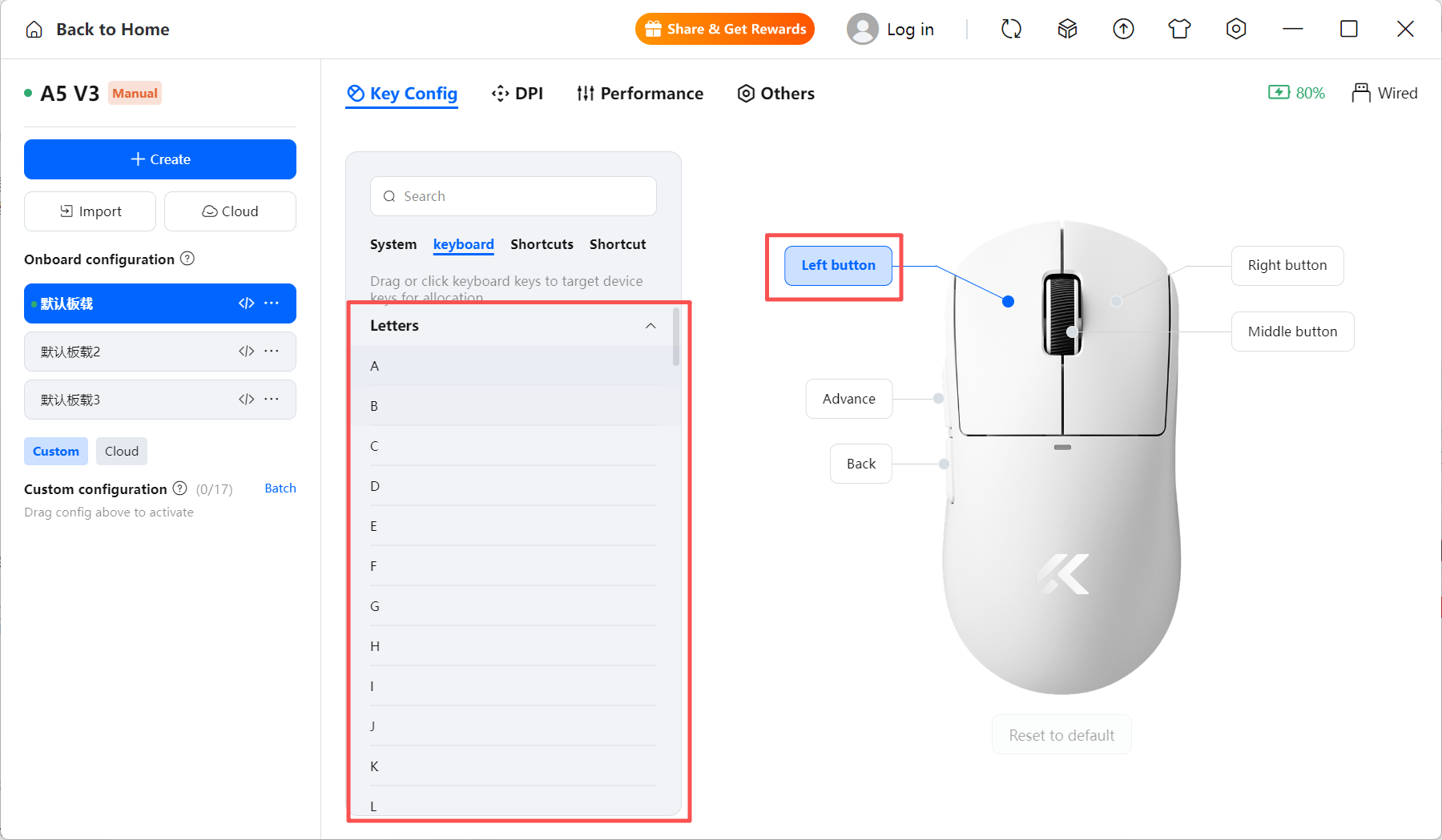

Keyboard Functions

Assign keyboard keys or shortcuts to mouse buttons.
Shortcuts Functions

Used to set up complex operations or multi-step actions, such as opening a specific program, running a script, or performing a series of operations.
Macro Functions Execute recorded macros through assigned buttons.
Tip: Side buttons are commonly used for frequently accessed commands in games, browsers, and productivity applications.

3.3 DPI Settings

DPI determines how sensitive the mouse movement feels. A higher DPI moves the cursor faster, while a lower DPI provides more precise control.

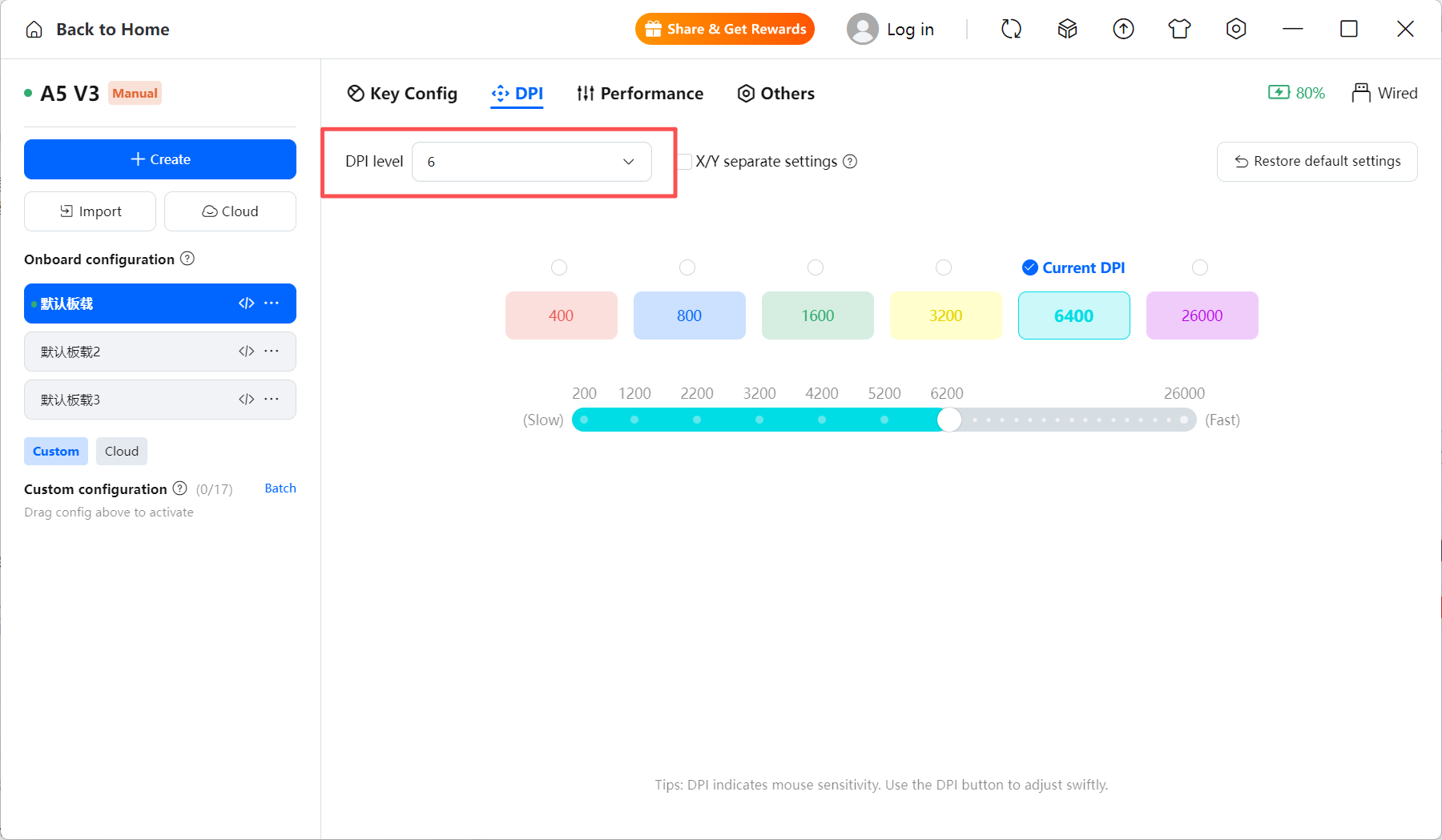

Adjusting DPI

  1. Open MCHOSE HUB.
  2. Navigate to the DPI Setting page.
  3. Select the DPI level you want to adjust.
  4. Enter your preferred DPI value.
  5. Save the settings.

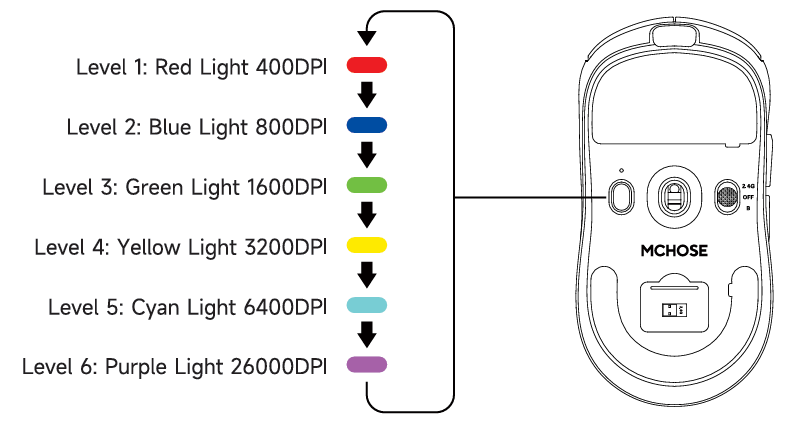

DPI Stages

The A5 V3 supports multiple DPI levels that can be switched using the DPI button.

  • Each DPI stage can be customized individually.
  • Unused DPI stages can be disabled.
  • The DPI button can be reassigned through MCHOSE HUB.
Note: DPI settings affect cursor sensitivity only. They do not change the mouse polling rate or sensor performance.

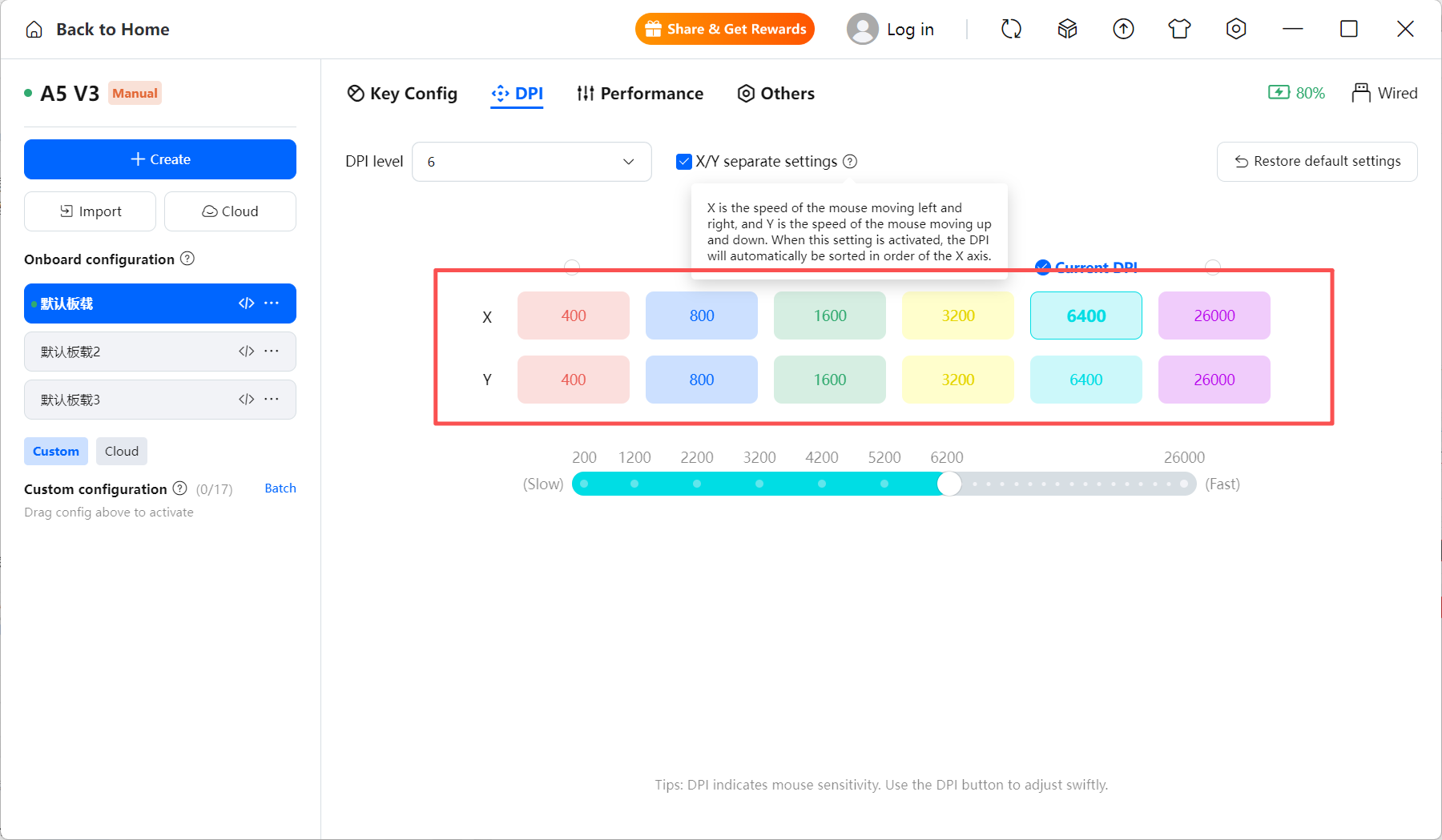

X/Y DPI Adjustment

Advanced users can separately adjust horizontal and vertical sensitivity.

  • X-axis DPI controls horizontal movement.
  • Y-axis DPI controls vertical movement.
Tip: For most users, keeping X-axis and Y-axis DPI values the same provides the most natural tracking experience.

3.4 Macro Settings

Macro settings allow you to record multiple keyboard or mouse actions and assign them to a single button.

Important: Some games and applications may restrict the use of macros. Please ensure your macro usage follows the rules of the software or game.

Creating a Macro

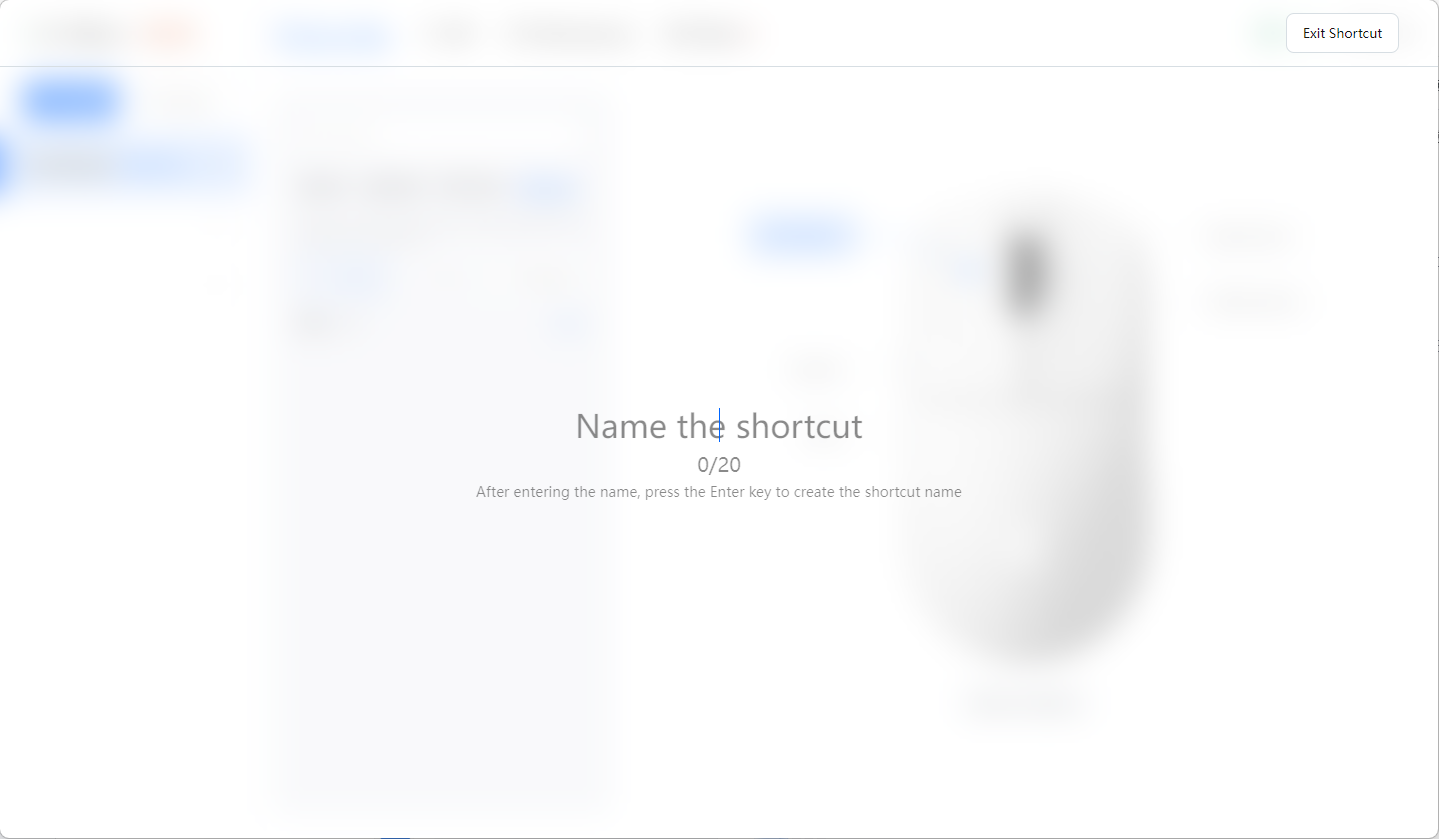

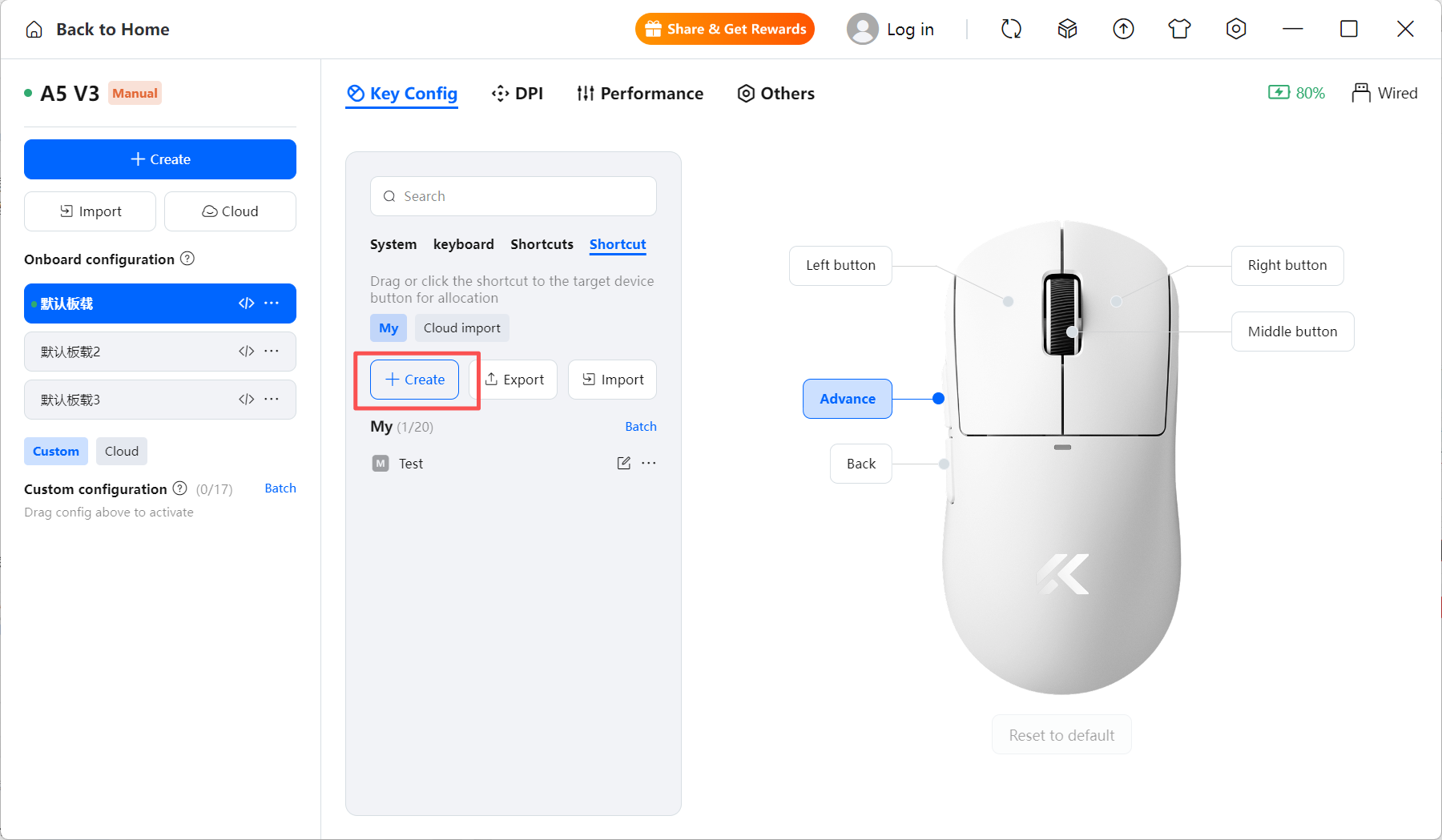

      1.Select New Macro     2. Enter a name and press Enter to name the macro configuration.

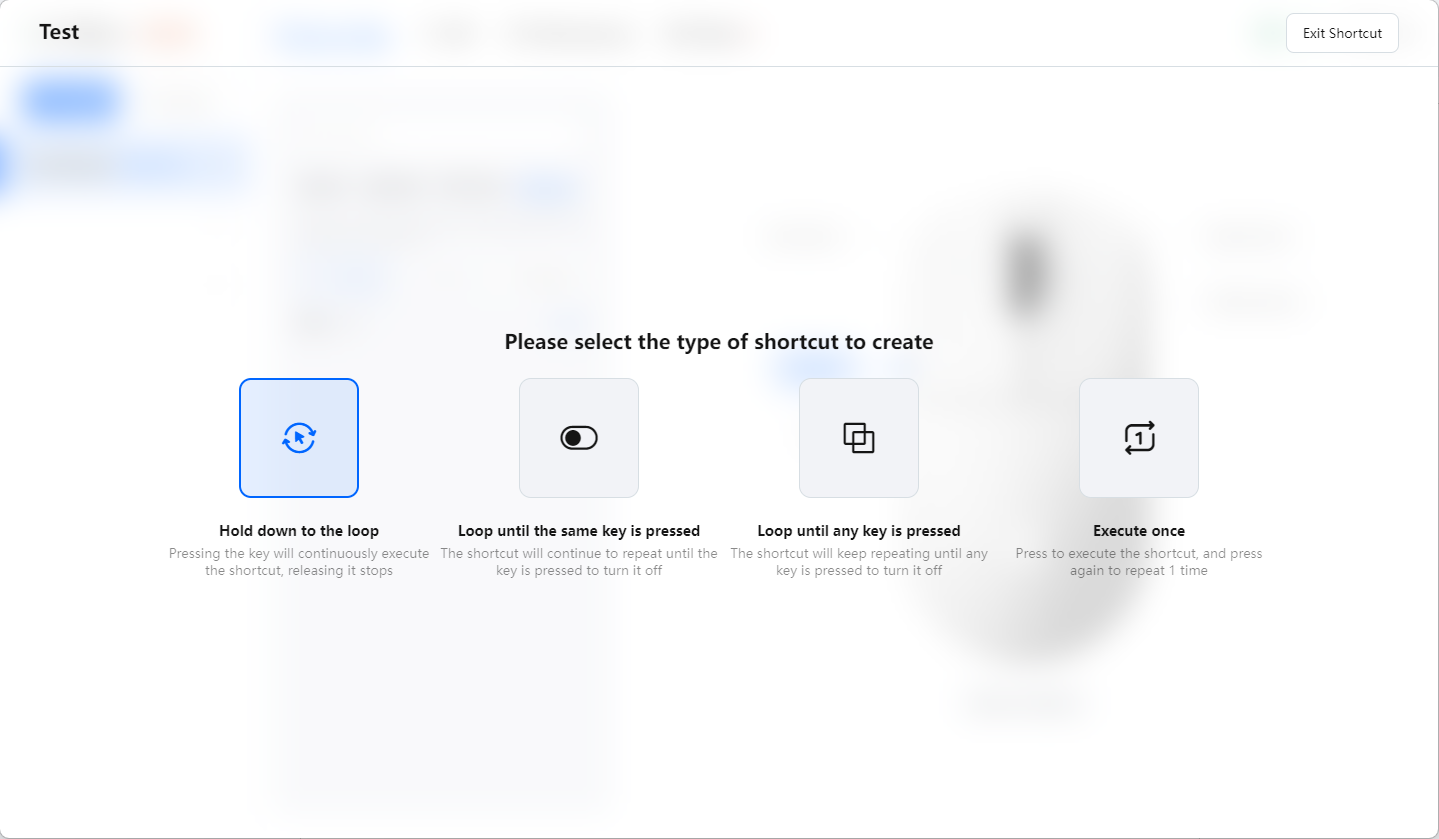

   3. Select loop mode

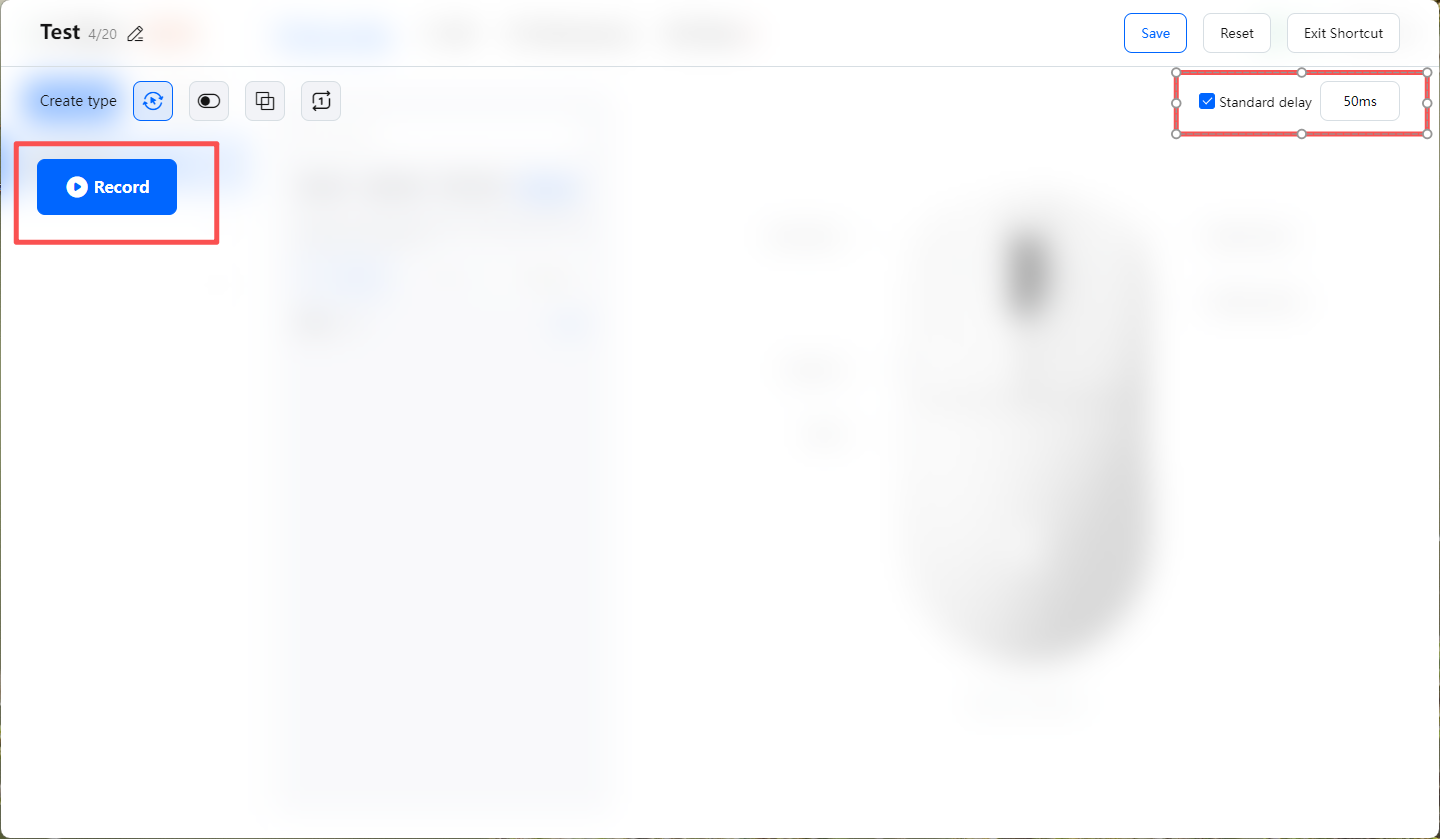

4. To start recording, press the corresponding button combination to complete the recording and save.

5. Simply drag and drop the recorded macro configuration to the corresponding key.

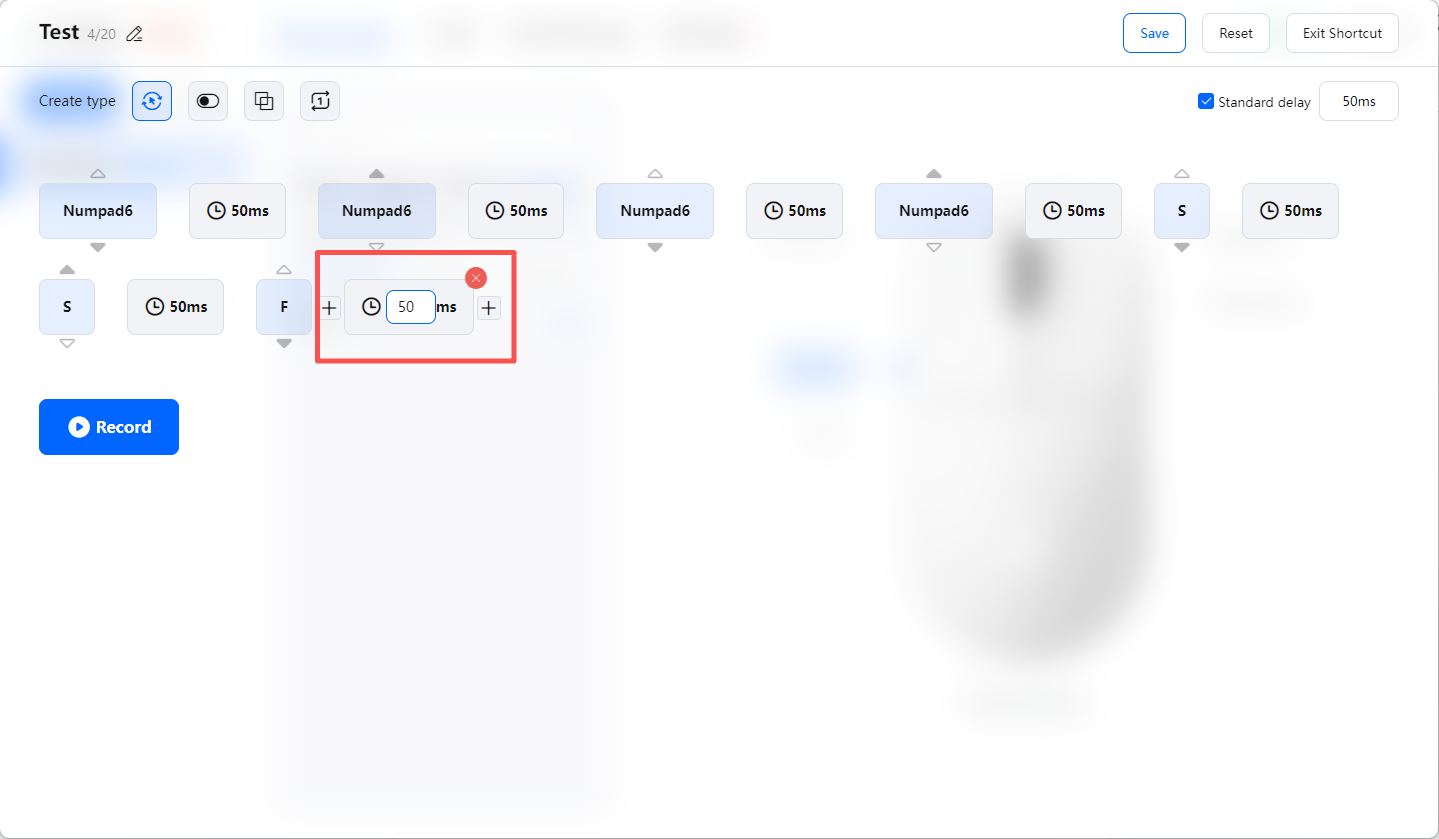

6. To modify the macro interval, simply click the delay time after recording ends.

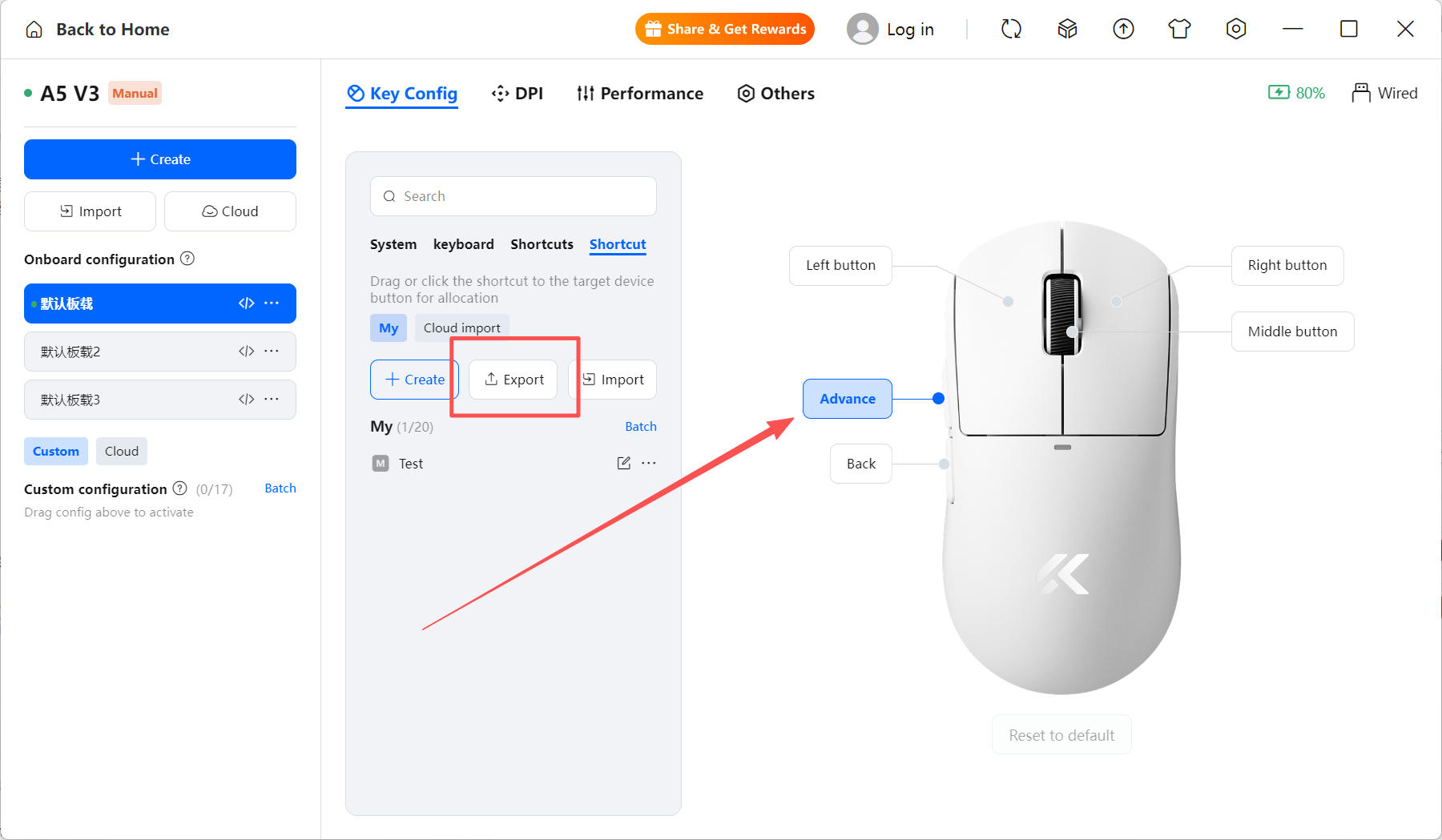

  • Macro import and export are suitable for local saving of macro functions to prevent loss.







Macro Playback Options

Mode Description
Play Once The macro runs one time when the button is pressed.
Repeat While Holding The macro repeats while the assigned button is held.
Loop The macro continues running until stopped.

3.5 Profile Management

MCHOSE HUB allows you to save different configuration profiles for different games or usage scenarios.

Creating a Profile

  1. Open MCHOSE HUB.
  2. Create a new profile.
  3. Configure button settings, DPI, and performance options.
  4. Save the profile.

Recommended Profile Examples

Profile Recommended Settings
FPS Gaming Lower DPI, high polling rate, optimized button layout
Office Work Medium DPI, productivity shortcuts
Creative Applications Custom shortcuts and precise cursor control
Tip: Creating separate profiles allows you to quickly switch between gaming, work, and daily-use configurations.

4. Performance Settings

The A5 V3 provides advanced performance adjustment options through MCHOSE HUB. These settings allow users to optimize tracking accuracy, click response, and overall mouse performance according to different gaming and usage scenarios.

4.1 Polling Rate

Polling Rate refers to how frequently the mouse reports its position and button status to the computer. A higher polling rate can reduce input delay and provide smoother cursor movement, but it also increases power consumption and CPU usage.

Polling Rate Recommended Usage
125Hz Basic office use and low-power scenarios
500Hz Daily use and balanced performance
1000Hz Gaming and general high-performance use
4000Hz / 8000Hz* Competitive gaming (supported models only)
Tip: For most users, 1000Hz provides an excellent balance between responsiveness, system compatibility, and battery life.
Important: Very high polling rates may increase CPU usage. If you experience FPS drops or unstable performance, try reducing the polling rate.

4.2 Debounce Time

Debounce Time controls the delay used to prevent accidental repeated inputs caused by mechanical switch vibration.

  • Lower debounce time: Faster click response.
  • Higher debounce time: Improved click stability and reduced accidental double-clicks.

Recommended Settings

Usage Scenario Recommended Setting
Competitive Gaming Lower debounce time
Daily Use Medium debounce time
Maximum Click Stability Higher debounce time
Note: The optimal debounce setting depends on your preferred balance between speed and click stability.

4.3 Motion Sync

Motion Sync synchronizes sensor data output with the USB polling timing, helping provide more consistent cursor tracking.

When to Enable Motion Sync

  • Smoother cursor movement.
  • More consistent tracking performance.
  • Improved movement stability during normal use.

When to Disable Motion Sync

  • Competitive gaming requiring the lowest possible latency.
  • Users who prioritize maximum sensor responsiveness.
Note: Motion Sync may introduce a small amount of additional latency. The difference is usually minimal and depends on the specific configuration.

4.4 Ripple Control

Ripple Control helps reduce small cursor movements caused by sensor noise when using very high DPI settings.

This feature improves cursor stability by applying additional smoothing to sensor data.

Recommended Usage

  • Enable when using very high DPI settings.
  • Useful for precise desktop operations.
  • May improve cursor stability on some surfaces.
Note: For competitive gaming, some users may prefer disabling additional smoothing features to maintain the most direct sensor response.

4.5 Angle Snapping

Angle Snapping, also known as straight-line correction, adjusts cursor movement to make horizontal and vertical movements appear straighter.

Suitable For

  • Office applications.
  • Drawing assistance.
  • General productivity tasks.

Not Recommended For

  • Competitive FPS gaming.
  • Games requiring precise raw sensor input.
  • Users who prefer natural hand movement tracking.
Important: For competitive gaming, we recommend disabling Angle Snapping to maintain original sensor behavior.

4.6 Lift-off Distance (LOD)

Lift-off Distance (LOD) refers to the height at which the sensor stops tracking when the mouse is lifted from the surface.

Adjusting LOD can help optimize tracking behavior, especially for users who frequently reposition the mouse during gameplay.

LOD Setting Recommended Usage
Low LOD Competitive gaming and reduced cursor movement while lifting the mouse
High LOD Better compatibility with different mouse pad surfaces
Tip: Players who frequently lift and reposition their mouse usually prefer a lower LOD setting.

4.7 Performance Mode

Performance Mode allows users to balance tracking performance, response speed, and battery consumption.

Mode Description
Balanced Mode Provides a balance between performance and battery efficiency.
Performance Mode Prioritizes responsiveness and tracking performance.
Competitive Mode Optimized for high-performance gaming scenarios.

Recommended Settings:

  • Daily Use: Balanced Mode + 500Hz–1000Hz polling rate.
  • Gaming: Performance Mode + 1000Hz or higher polling rate.
  • Competitive Gaming: Competitive Mode with optimized system performance.

5. Additional Functions

This section introduces additional functions of the A5 V3, including firmware updates, factory reset, indicator status, battery management, and safety information.

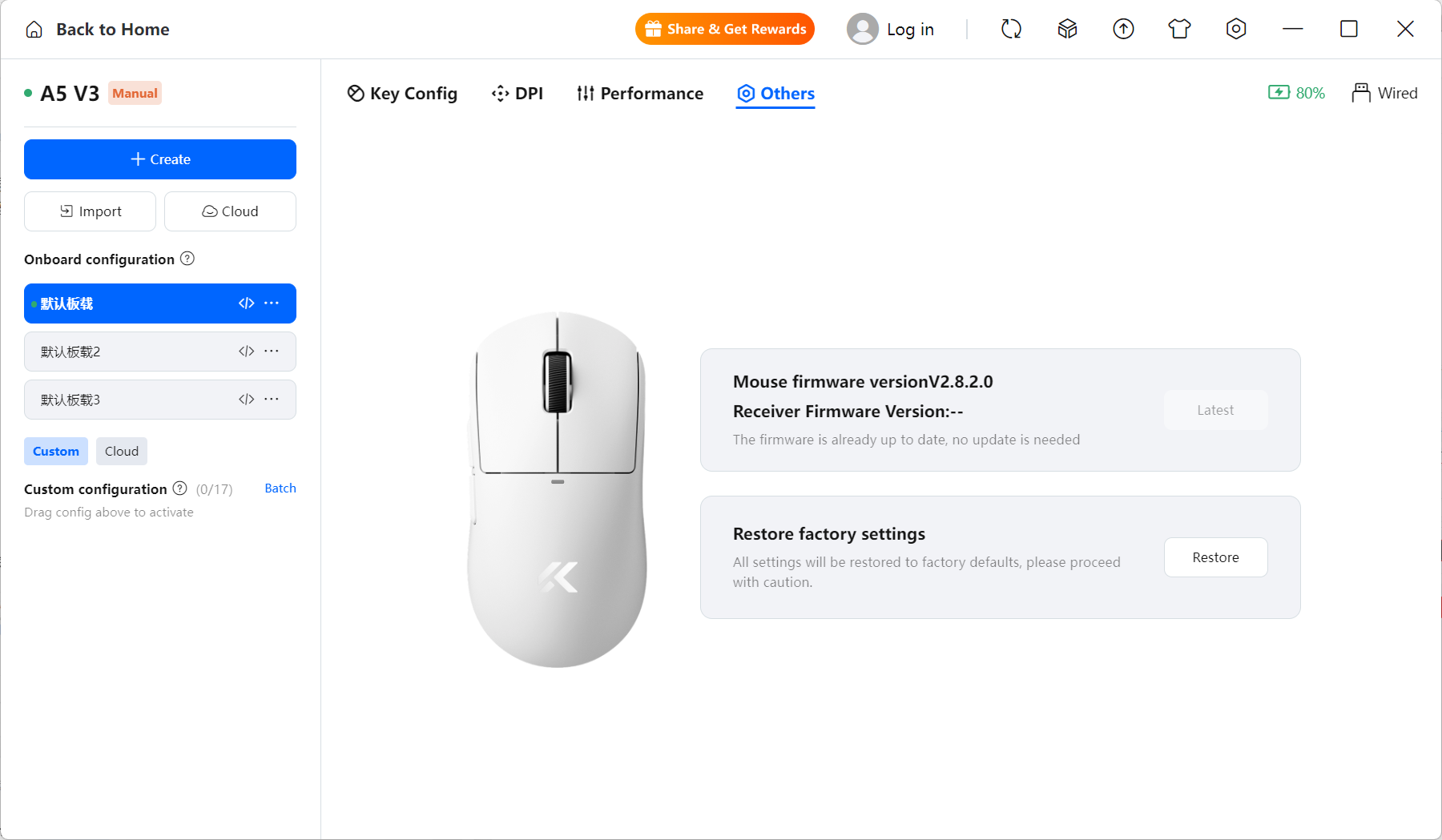

5.1 Firmware Update

Firmware updates improve device compatibility, optimize performance, and fix potential issues. We recommend keeping your A5 V3 firmware updated to ensure the best user experience.

Before Updating Firmware

  • Ensure the mouse has sufficient battery power.
  • Connect the mouse through USB Wired Mode whenever possible.
  • Close unnecessary background applications.
  • Do not disconnect the mouse during the update process.

Firmware Update Steps

  1. Connect the A5 V3 to your computer.
  2. Open MCHOSE HUB.
  3. Check whether a new firmware version is available.
  4. Follow the on-screen instructions to start the update.
  5. Wait until the update is completed.
  6. Restart the mouse after the update finishes.
Important: Do not unplug the mouse, shut down your computer, or interrupt the update process while firmware is being updated. An interrupted update may cause device errors.

5.2 Factory Reset

Factory Reset restores the mouse settings to their default configuration. This can help resolve configuration issues caused by incorrect settings.

Reset Through MCHOSE HUB

  1. Connect the mouse using USB Wired Mode or 2.4GHz Wireless Mode.
  2. Open MCHOSE HUB.
  3. Enter the device settings page.
  4. Select Factory Reset.
  5. Confirm the reset operation.
Note: Factory Reset will restore customized settings such as button assignments, DPI settings, and performance configurations.

5.3 Indicator Status

The A5 V3 uses indicator lights to display different operating states.

Indicator Status Description
Flashing Red Low battery warning
Red Light Charging
Light Off Fully charged or indicator inactive
Rapid Flashing BT pairing mode
Flashing Wireless connection or pairing status
Tip: Indicator behavior may vary slightly depending on firmware version and product configuration.

5.4 Battery Management

Proper battery management can help extend battery lifespan and maintain stable performance.

Battery Usage Recommendations

  • Charge the mouse when the battery level is low.
  • Avoid leaving the mouse completely discharged for long periods.
  • Use the included USB cable or a compatible charging cable.
  • Turn off the mouse when it will not be used for an extended period.

Battery Life Factors

Actual battery life may vary depending on:

  • Polling rate settings.
  • Wireless connection mode.
  • LED lighting settings (if supported).
  • Usage frequency.
  • Performance settings.
Tip: Lower polling rates and optimized performance settings can help extend battery life during wireless use.

5.5 Safety Information

To ensure safe operation and maintain product performance, please follow these guidelines:

  • Do not disassemble or modify the mouse without authorization.
  • Keep the mouse away from water, moisture, and excessive heat.
  • Avoid exposing the device to direct sunlight for extended periods.
  • Do not use damaged cables or incompatible accessories.
  • Keep the sensor and mouse feet clean to maintain tracking accuracy.
  • Store the mouse in a dry and clean environment when not in use.

Cleaning and Maintenance

  • Use a soft, dry cloth to clean the mouse surface.
  • Do not apply liquid directly to the mouse.
  • Remove dust from the sensor area regularly.
  • Keep the mouse feet free from dirt and debris.
Important: Damage caused by improper use, unauthorized modification, liquid exposure, or misuse may affect product performance and warranty coverage.
Thank you for choosing the MCHOSE A5 V3 Tri-mode Gaming Mouse. We hope this guide helps you enjoy a smooth and personalized gaming experience.

Comments

0 comments

Please sign in to leave a comment.

Powered by Zendesk
