This guide helps you set up your MCHOSE Ace60 keyboard for the first time, including wired connection, basic shortcut keys, lighting controls, and system mode switching.
Product Overview
The MCHOSE Ace60 is a compact magnetic switch gaming keyboard designed for fast response, precise control, and customizable performance settings through M HUB.

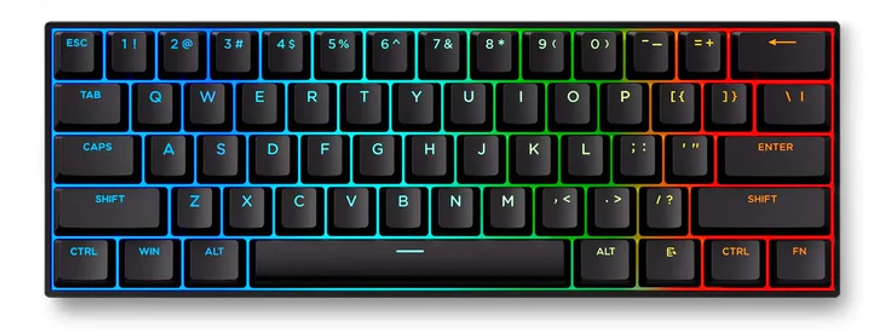

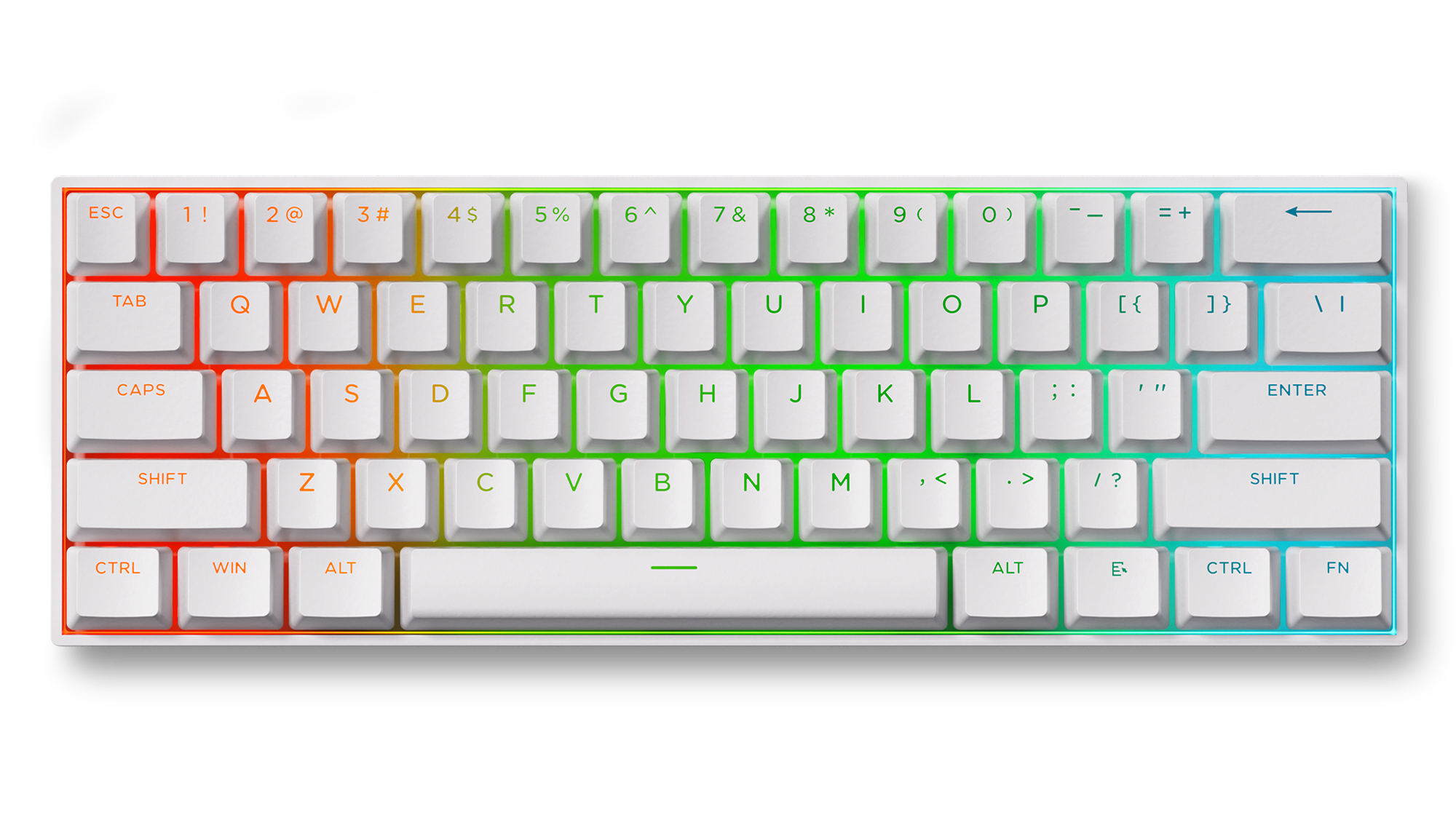

Available Colors
Black
White
Wired Connection
The Ace60 supports wired connection only.

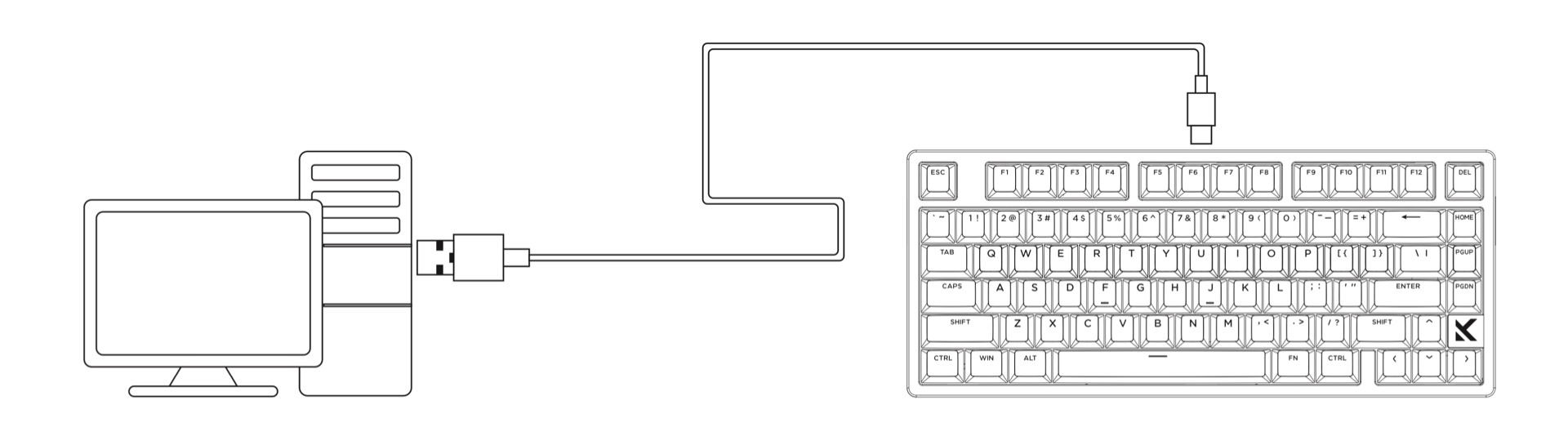

How to Connect the Keyboard

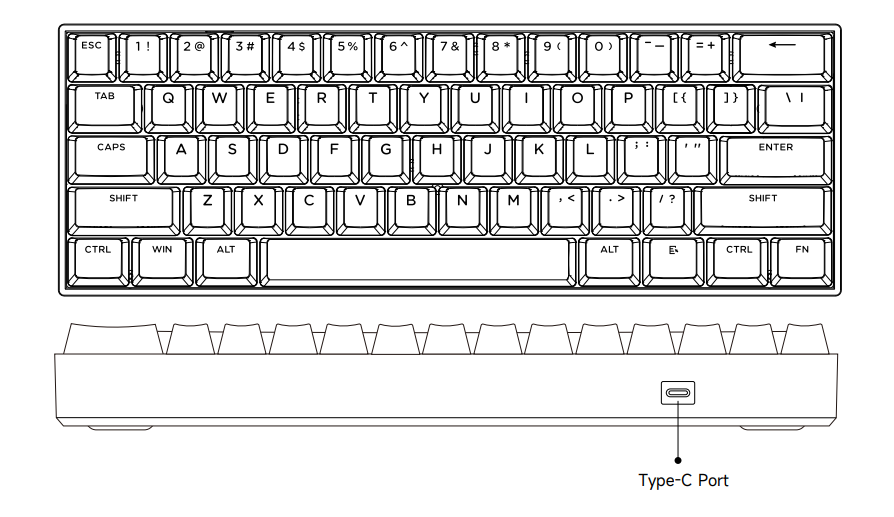

- Plug the Type-C end of the USB cable into the keyboard.
- Plug the USB-A end of the cable into your computer.
- Once the indicator light turns on, the keyboard is connected successfully.
Note: For the most stable connection, connect the keyboard directly to your computer’s USB port. Avoid using an external docking station or USB hub when setting up the keyboard or updating firmware.
Backlight Shortcut Keys
| Shortcut | Function |
|---|---|
| Fn + . > | Switch backlight color |
| Fn + [{ | Decrease backlight brightness |
| Fn + ]} | Increase backlight brightness |
| Fn + ;: | Decrease backlight speed |
| Fn + '" | Increase backlight speed |
| Fn + \| | Switch backlight mode |
You can also adjust lighting effects, colors, brightness, and speed in M HUB.

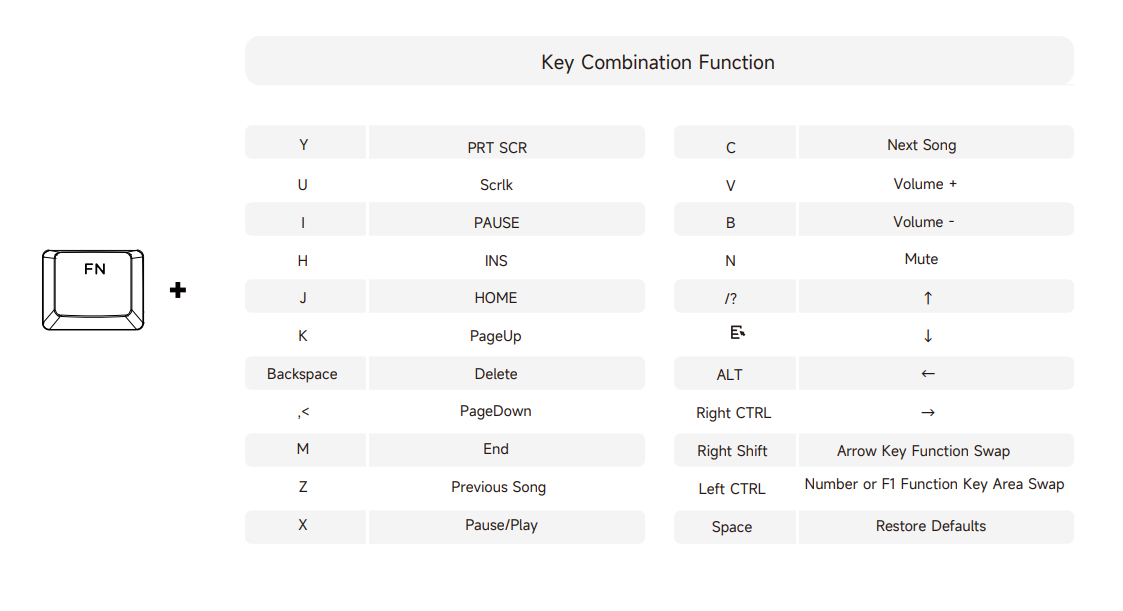

F-Row and Symbol Shortcut Keys
| Shortcut | Output |
|---|---|
| Fn + Esc | `~ |
| Fn + 1! | F1 |
| Fn + 2@ | F2 |
| Fn + 3# | F3 |
| Fn + 4$ | F4 |
| Fn + 5% | F5 |
| Fn + 6^ | F6 |
| Fn + 7& | F7 |
| Fn + 8* | F8 |
| Fn + 9( | F9 |
| Fn + 0) | F10 |
| Fn + -_ | F11 |
| Fn + =+ | F12 |
Switch Between Windows and macOS Mode
If the Win and Alt keys appear to be swapped, the keyboard may be in the wrong operating system mode.
| Shortcut | Function |
|---|---|
| Fn + O | Switch to Windows mode |
| Fn + P | Switch to macOS mode |
Factory Reset
If your keyboard settings are abnormal or you want to restore the default configuration, press and hold Fn + Esc for 5 seconds to reset the keyboard.
Note: A factory reset will restore keyboard settings such as trigger parameters, key remapping, and lighting settings to default.
Download the Manual
You can download the Ace60 instruction manual here:https://cdn.shopify.com/s/files/1/0846/5727/5175/files/Ace_60_instruction-EN.pdf?v=1730859167
