Welcome to the MCHOSE A7 V2 Tri-Mode Gaming Mouse User Guide. This guide covers product setup, connection modes, MCHOSE HUB configuration, and supported performance settings.
Note: Features and specifications may vary between A7 V2 models. Check your product page or packaging for model-specific information.
Table of Contents
- 1. Product Overview
- 2. A7 V2 Product Line
- 3. Package Contents
- 4. Connection Modes
- 5. MCHOSE HUB
- 6. Button Settings
- 7. DPI Settings
- 8. Performance Settings
- 9. Firmware Updates
- 10. Factory Reset

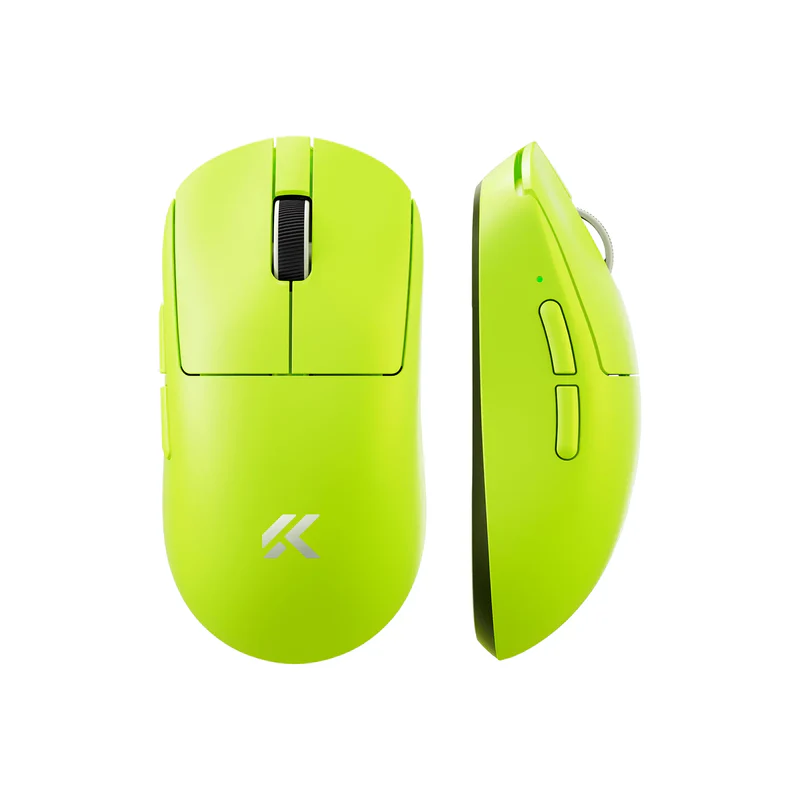

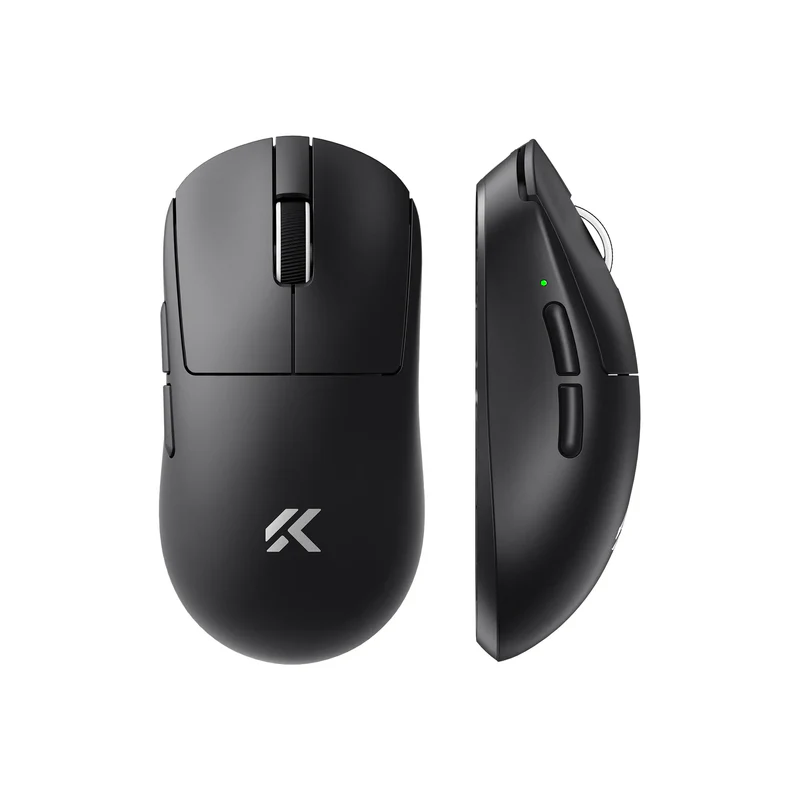

1. Product Overview
The MCHOSE A7 V2 is a lightweight tri-mode gaming mouse designed for competitive gaming, productivity, and everyday use. It supports three connection methods and offers extensive customization through MCHOSE HUB.
Key Features
- Tri-mode connectivity (Wired / 2.4GHz Wireless / BT)
Key Features
- Tri-mode connectivity: USB Wired, 2.4GHz Wireless, and BT
- Adjustable DPI and polling rate
- Programmable buttons
- Macro support
- Configurable sensor and performance settings
- Onboard storage for supported settings
- MCHOSE HUB support on compatible Windows systems
2. A7 V2 Product Line
The A7 V2 Series includes multiple models with different sensors, battery capacities, polling rates, and included accessories.
| Model | Sensor | Battery | Approximate Weight | Maximum Polling Rate |
|---|---|---|---|---|
| A7 V2 | Model-dependent | 300mAh | Approx. 56g | Model-dependent |
| A7 V2 Pro | PAW3395 | 500mAh | Approx. 59g | Up to 8,000Hz* |
| A7 V2 Ultra | PAW3950 | 500mAh | Approx. 59g | Up to 8,000Hz* |
| A7 V2 Pro+ | PAW3395 | 500mAh | Approx. 59g | Up to 8,000Hz* |
| A7 V2 Ultra+ | PAW3950 | 500mAh | Approx. 59g | Up to 8,000Hz* |
*Maximum polling rate depends on the model, receiver, connection mode, firmware, and system compatibility.
3. Package Contents
- A7 V2 Gaming Mouse
- 2.4GHz USB Receiver
- USB-C Cable
- User Documentation
- Model-dependent accessories
Package contents may vary by model and region. Check the product packaging for the exact contents.

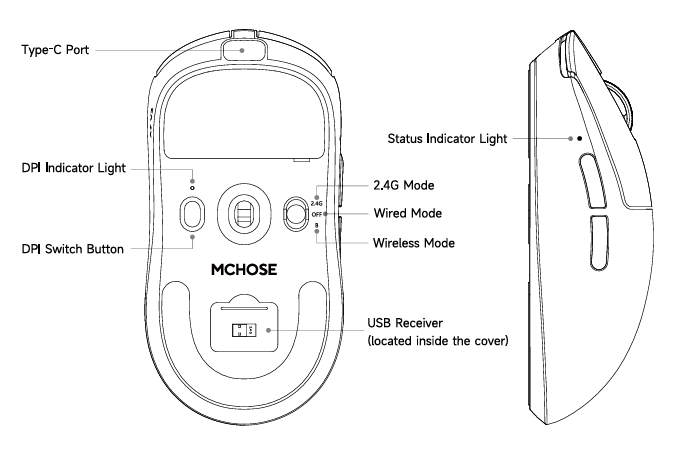

4. Connection Modes
USB Wired Mode
- Connect the USB-C cable to the mouse.
- Connect the other end to a computer USB port.
- Wait for the operating system to recognize the mouse.
USB Wired Mode allows you to use the mouse while charging and is recommended for firmware updates.
- Connect the mouse to your computer using the included USB Type-C cable.
- The mouse will automatically enter wired mode.
- The battery will charge while connected.
Best For
- Firmware updates
- Maximum stability
- Lowest latency

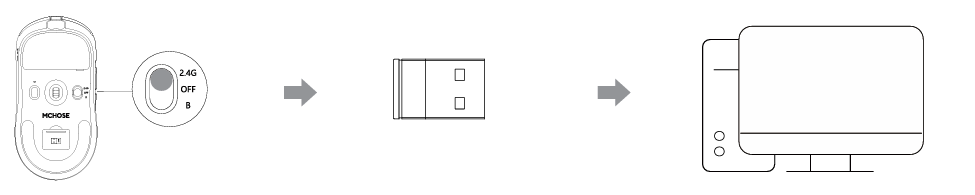

2.4GHz Wireless Mode
- Insert the USB receiver into your computer.
- Move the bottom switch to 2.4G.
- The mouse should connect automatically within a few seconds.
Recommendation
For the best wireless performance, use the included extension cable or adapter to position the receiver closer to the mouse.

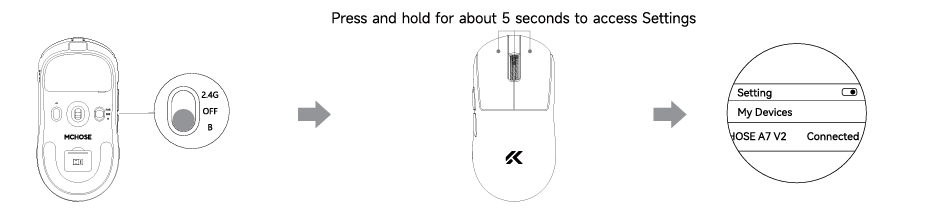

BT Mode
- Switch the mouse to BT mode.
- Put the mouse into BT pairing mode.
- Open your device's BT settings.
- Select MCHOSE A7 V2 from the available devices.
5. MCHOSE HUB
MCHOSE HUB allows you to configure supported A7 V2 settings, including:
- Button assignments
- DPI stages
- Polling rate
- Macros
- Performance settings
- Sensor settings

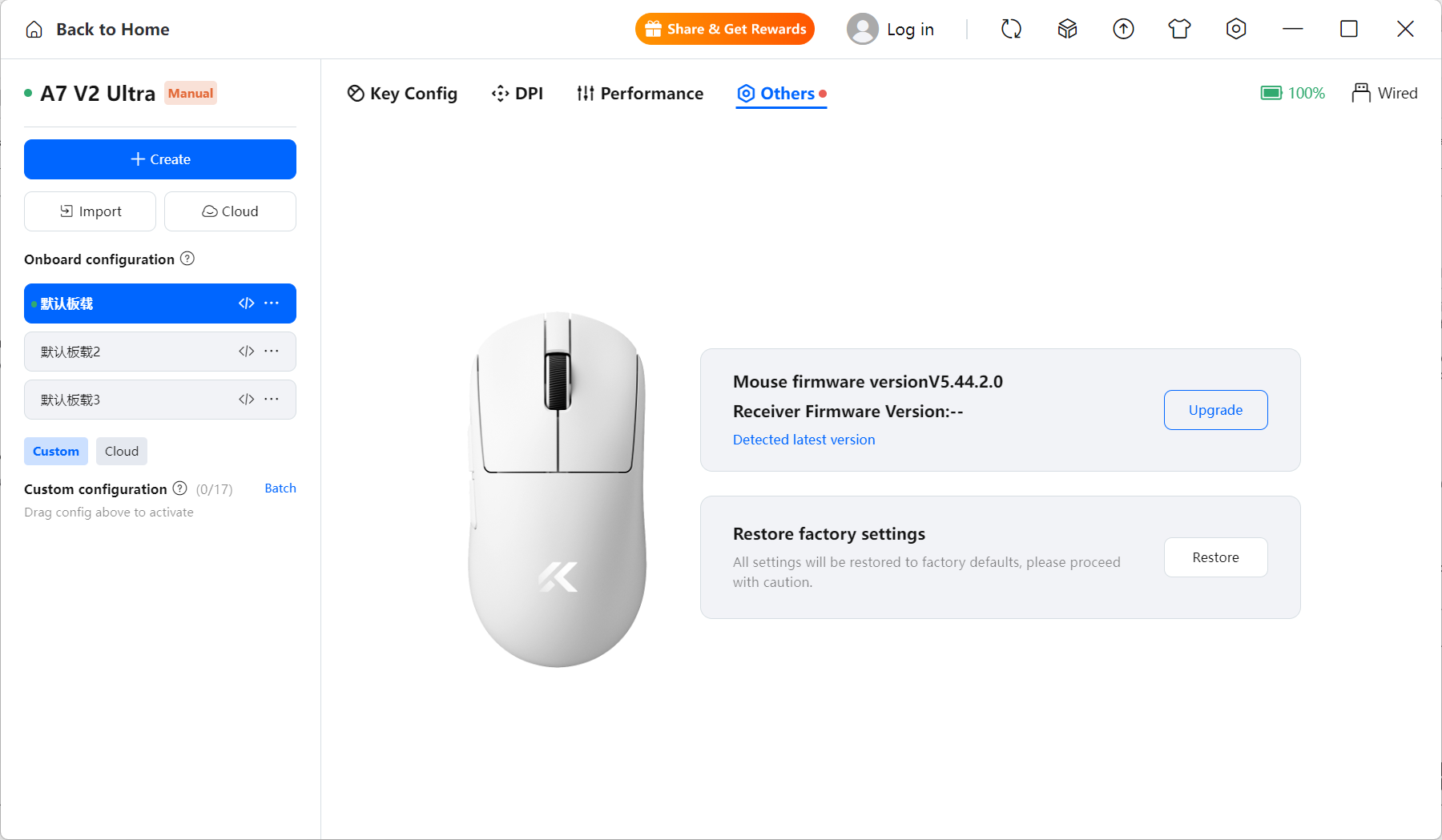

- Firmware updates
- Factory reset

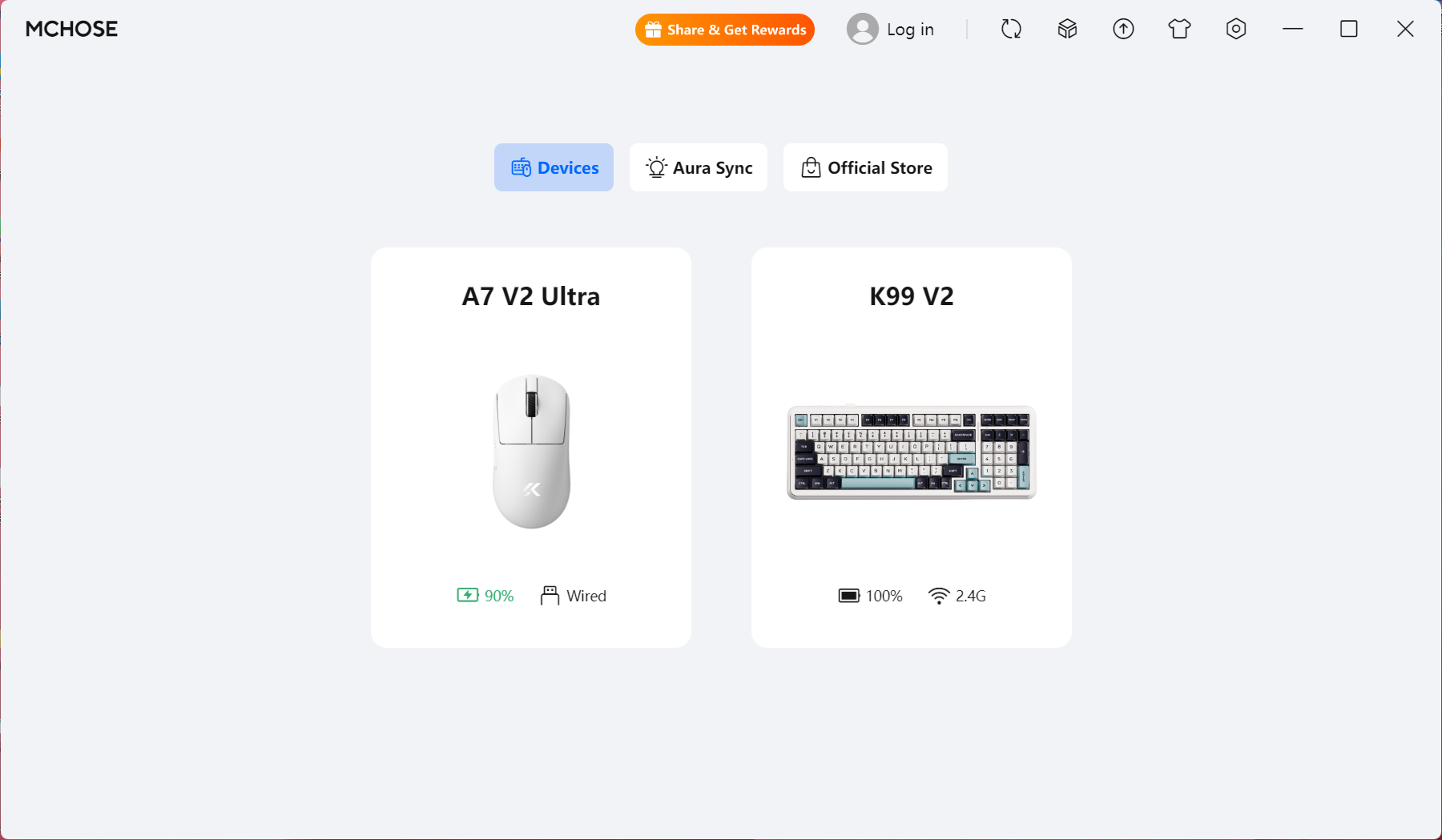

Connection Successful
If the device information appears on the Home page of MCHOSE HUB, your mouse has been connected successfully and is ready for customization.
9. Button Assignment

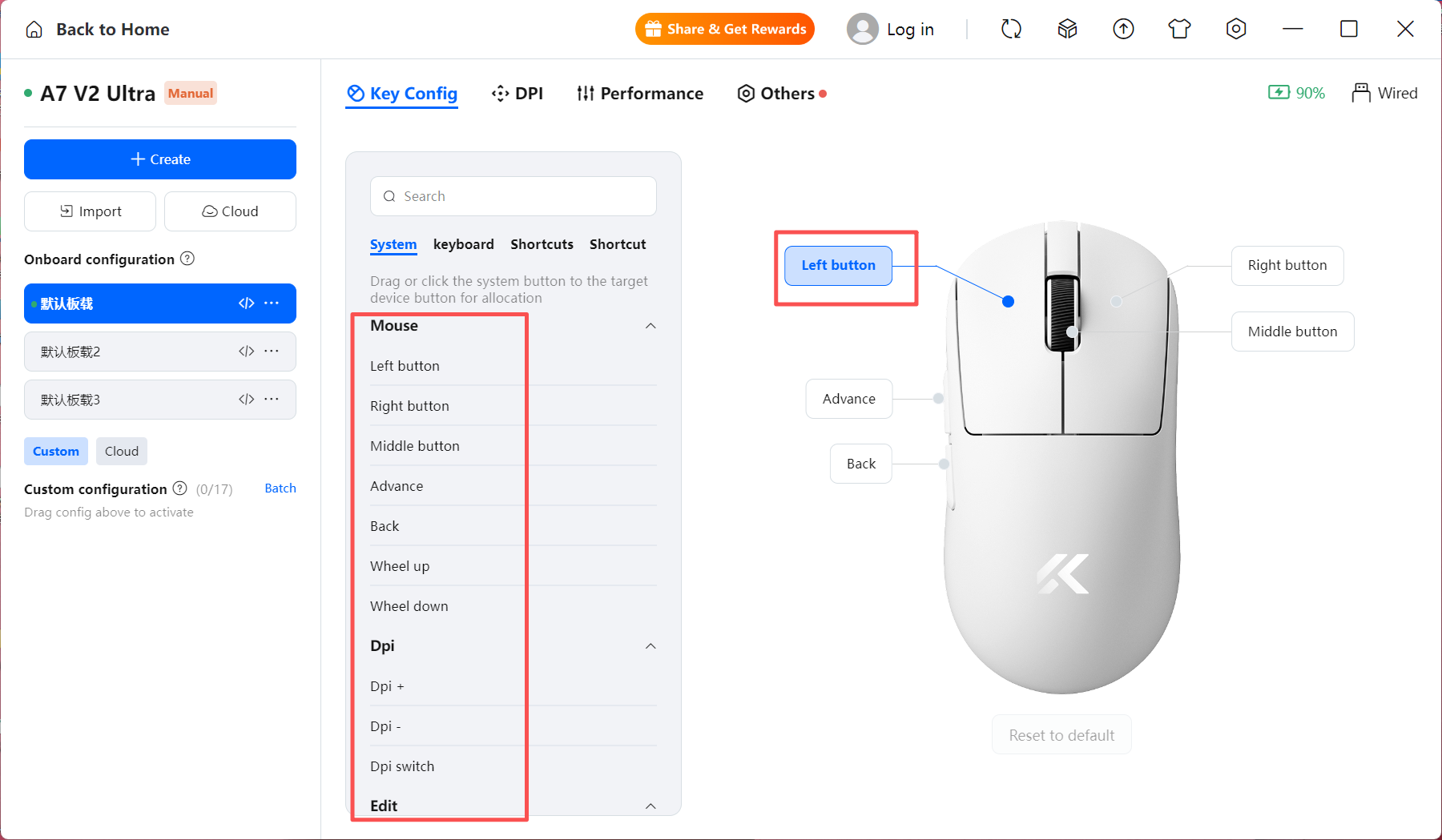

MCHOSE HUB allows you to customize each programmable button according to your workflow or gaming preferences. Button assignments are saved to the mouse's onboard memory and remain effective after disconnecting from the software.
Tip
Only programmable buttons can be reassigned. The available options may vary depending on the mouse model.
Available Button Functions
| Function Type | Description |
|---|---|
| Mouse Functions | Assign standard mouse actions such as Left Click, Right Click, Middle Click, DPI Switch, Forward, Backward, and more. |
| System Functions | Control operating system features such as Volume Up/Down, Mute, Play/Pause, Screen Brightness, Calculator, and other shortcuts. |
| Keyboard Mapping | Assign any keyboard key or key combination to a mouse button. |
| Macro | Assign recorded macro sequences for games or productivity tasks. |
| Disabled | Disable a button if it is not needed. |
System Functions
System Functions allow you to trigger commonly used operating system shortcuts directly from your mouse.
Examples include:
- Volume Up / Down
- Mute
- Play / Pause
- Next / Previous Track
- Screen Brightness Adjustment
- Calculator
- Task View
Example
You can assign the side button to Mute during meetings or Play/Pause when listening to music.

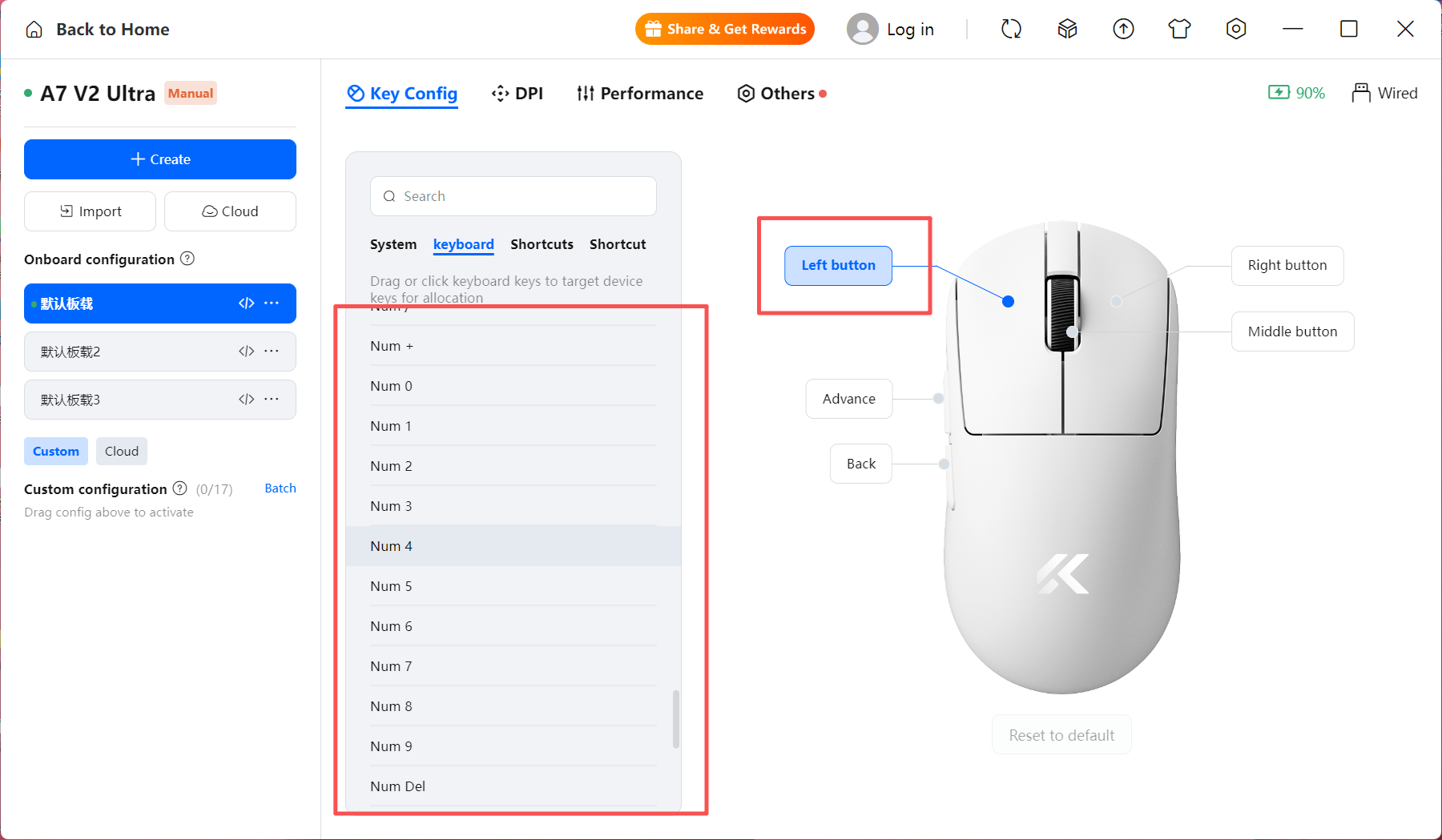

Keyboard Mapping
Keyboard Mapping lets you replace a mouse button with any keyboard key.
For example:
- Assign the A key to a side button.
- Assign the Arrow Keys for quick navigation.
- Assign commonly used shortcuts such as Ctrl, Shift, or Alt.
Note
Keyboard Mapping is supported when using MCHOSE HUB under Windows. Function availability may differ on macOS.
10. Macro Configuration
The Macro Manager allows you to record and assign complex button sequences to improve efficiency in games and productivity applications.
Important
Some online games prohibit the use of macros. Please ensure your configuration complies with the rules of the game or software you are using.

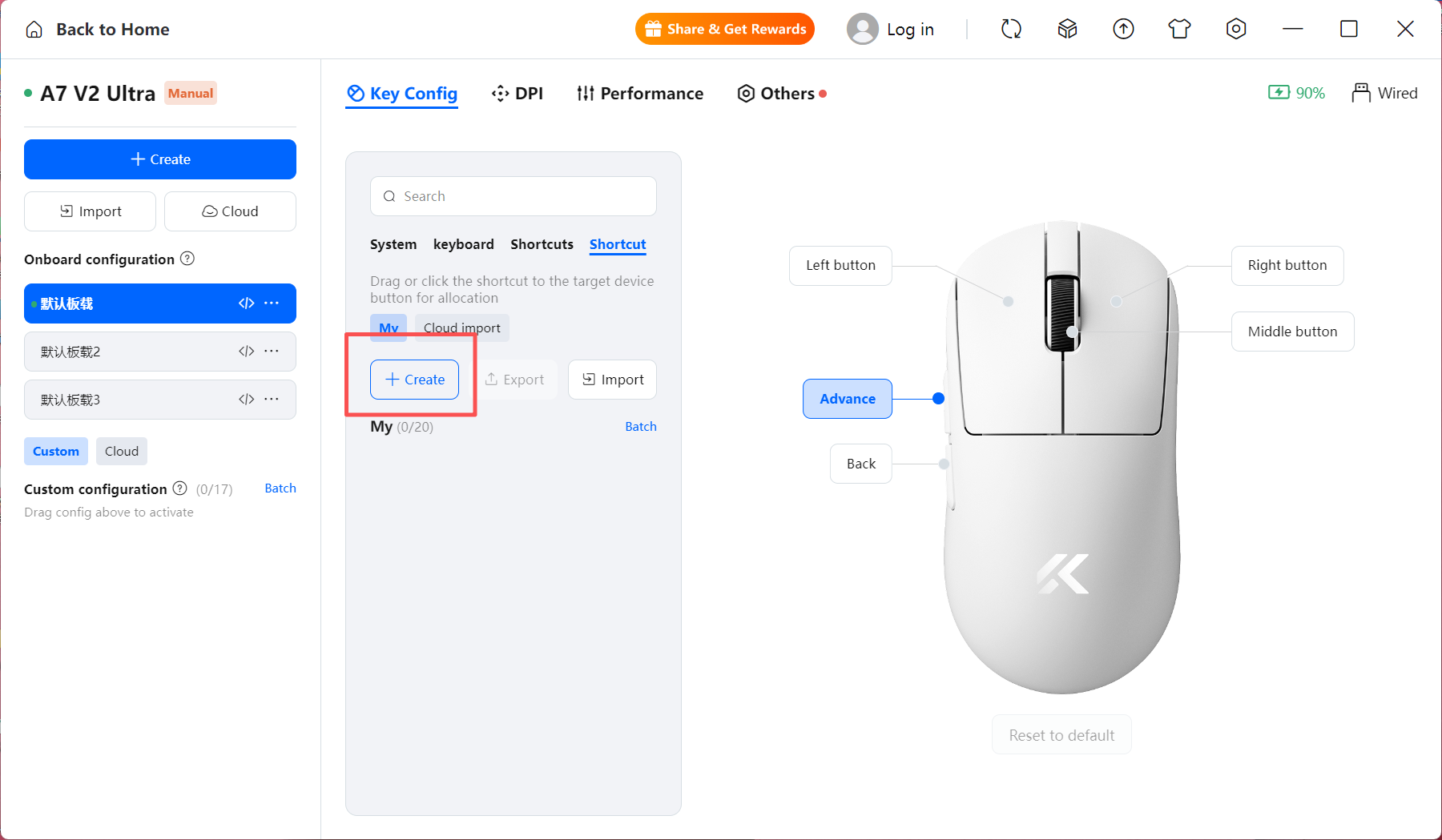

Create a New Macro
|
1.Open MCHOSE HUB and Select the Macro tab |
2.Click New Macro. |
|

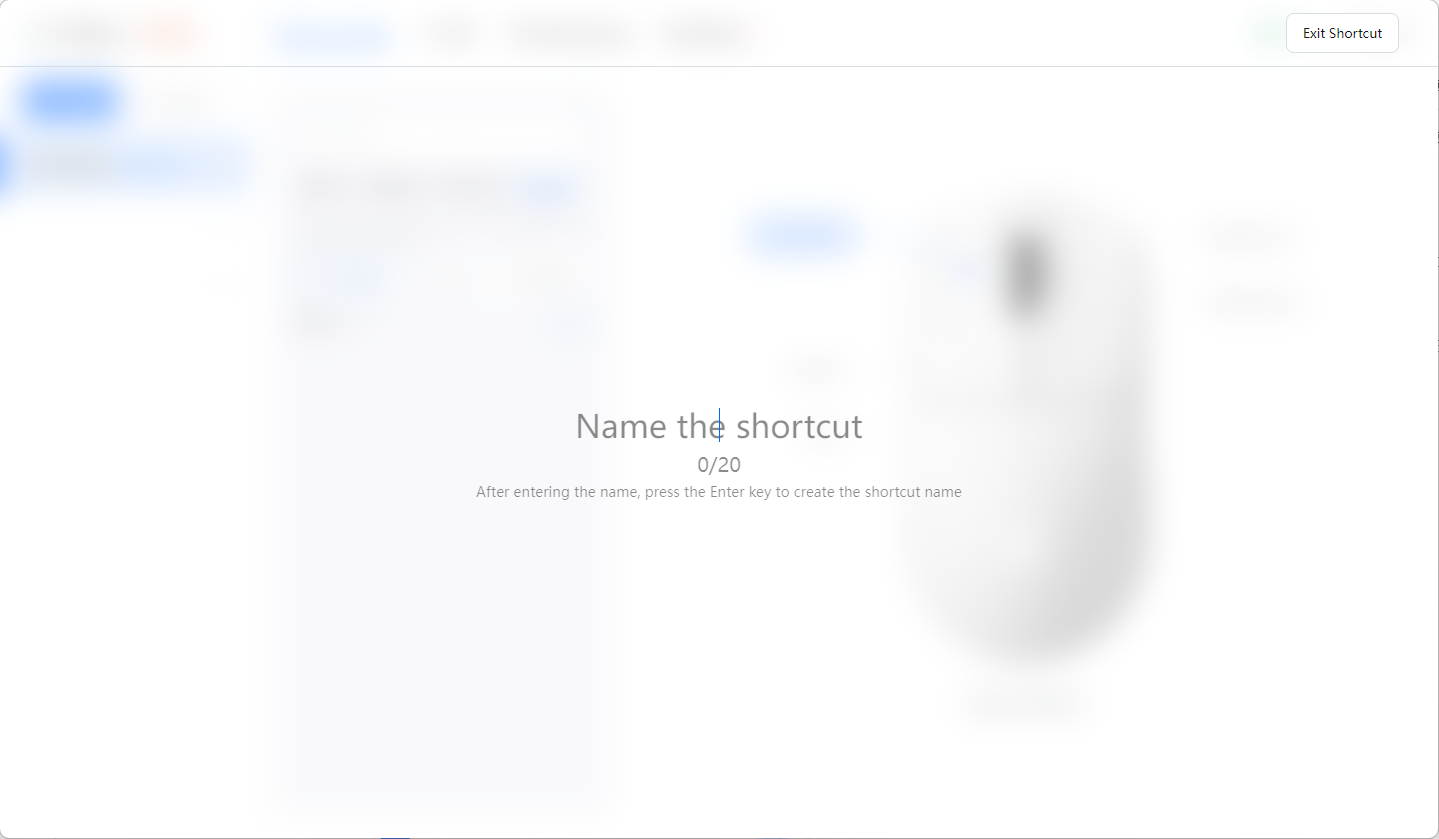

3.Enter a name for the macro. |

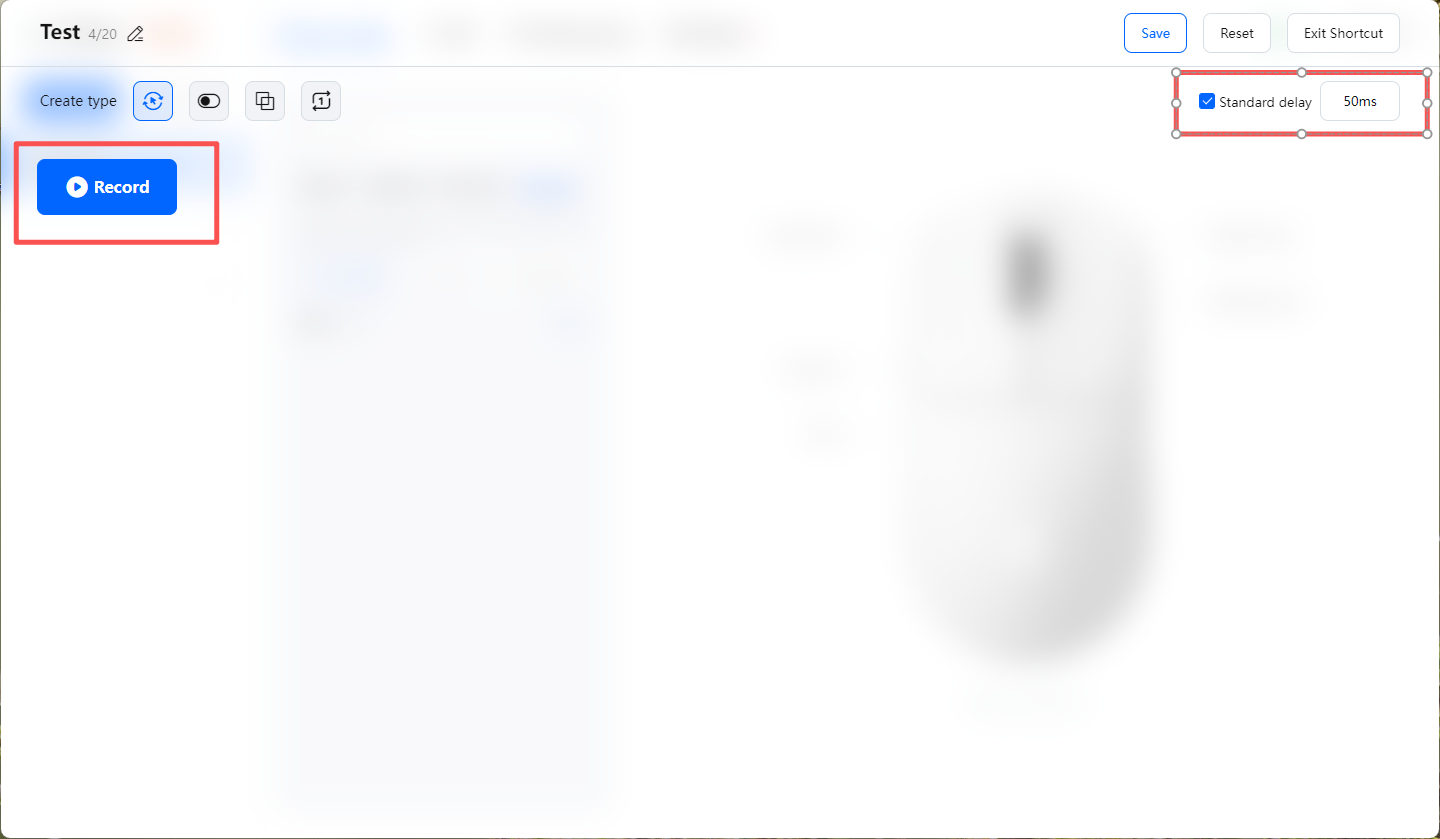

4.Click Start Recording. |
| 5.Perform the desired key sequence. |
6.Stop recording and save the macro. |
|

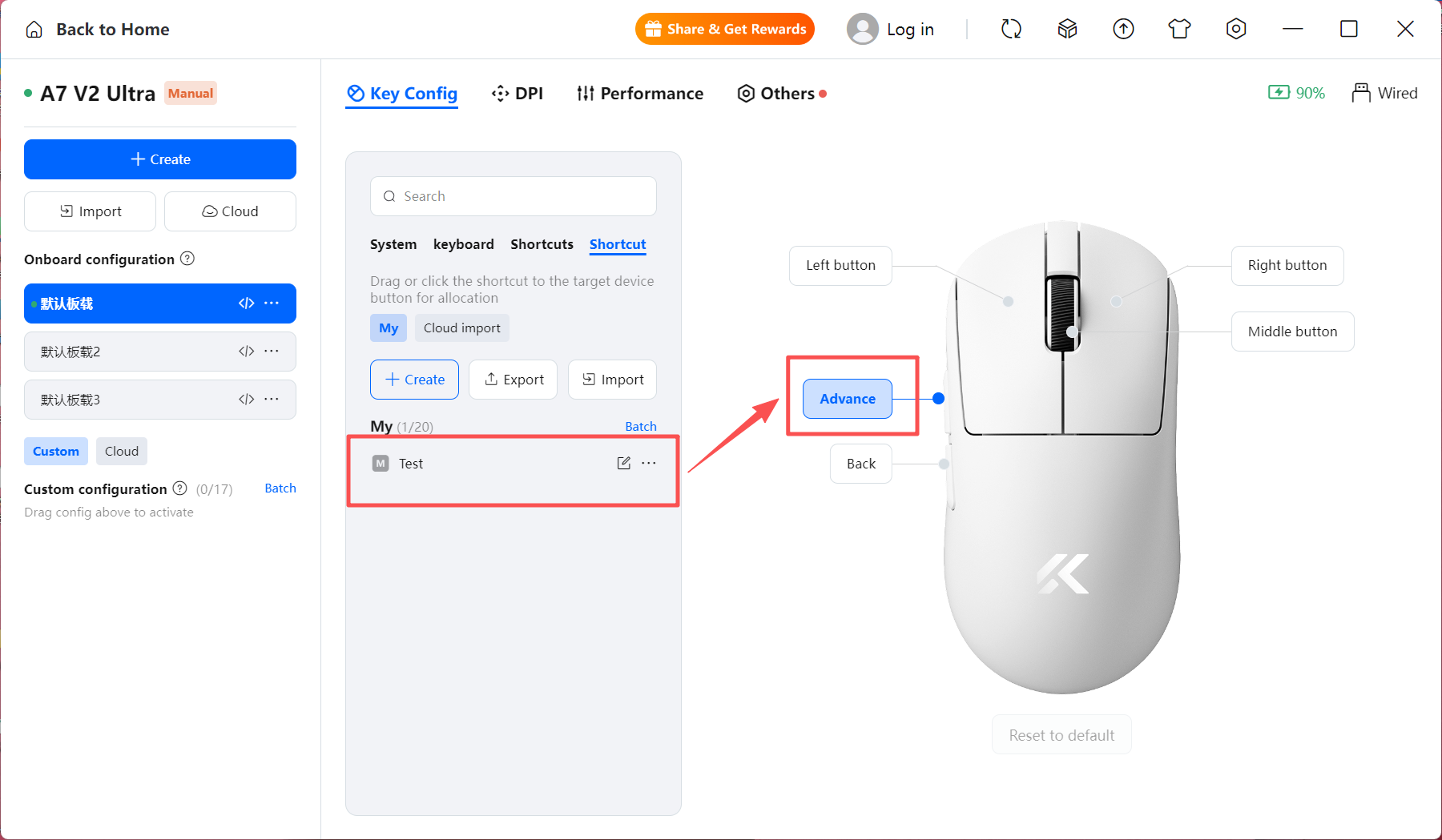

7.Drag the saved macro onto the desired mouse button. | |

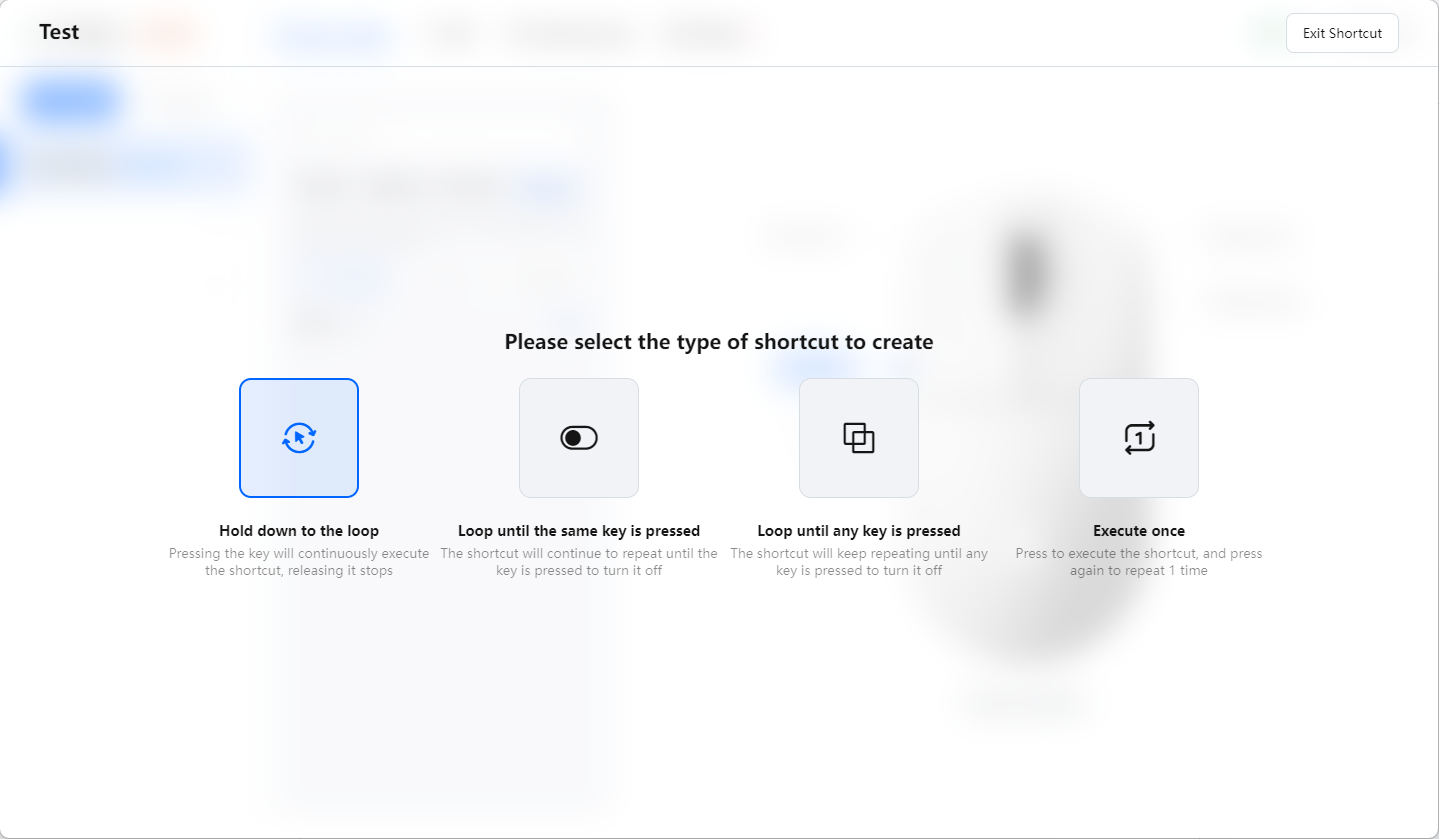

Macro Playback Modes
| Mode | Description |
|---|---|
| Play Once | Executes the macro one time for each button press. |
| Repeat While Pressed | Repeats the macro continuously while the assigned button is held. |
| Toggle Repeat | Starts repeating after one press and stops after pressing the button again. |

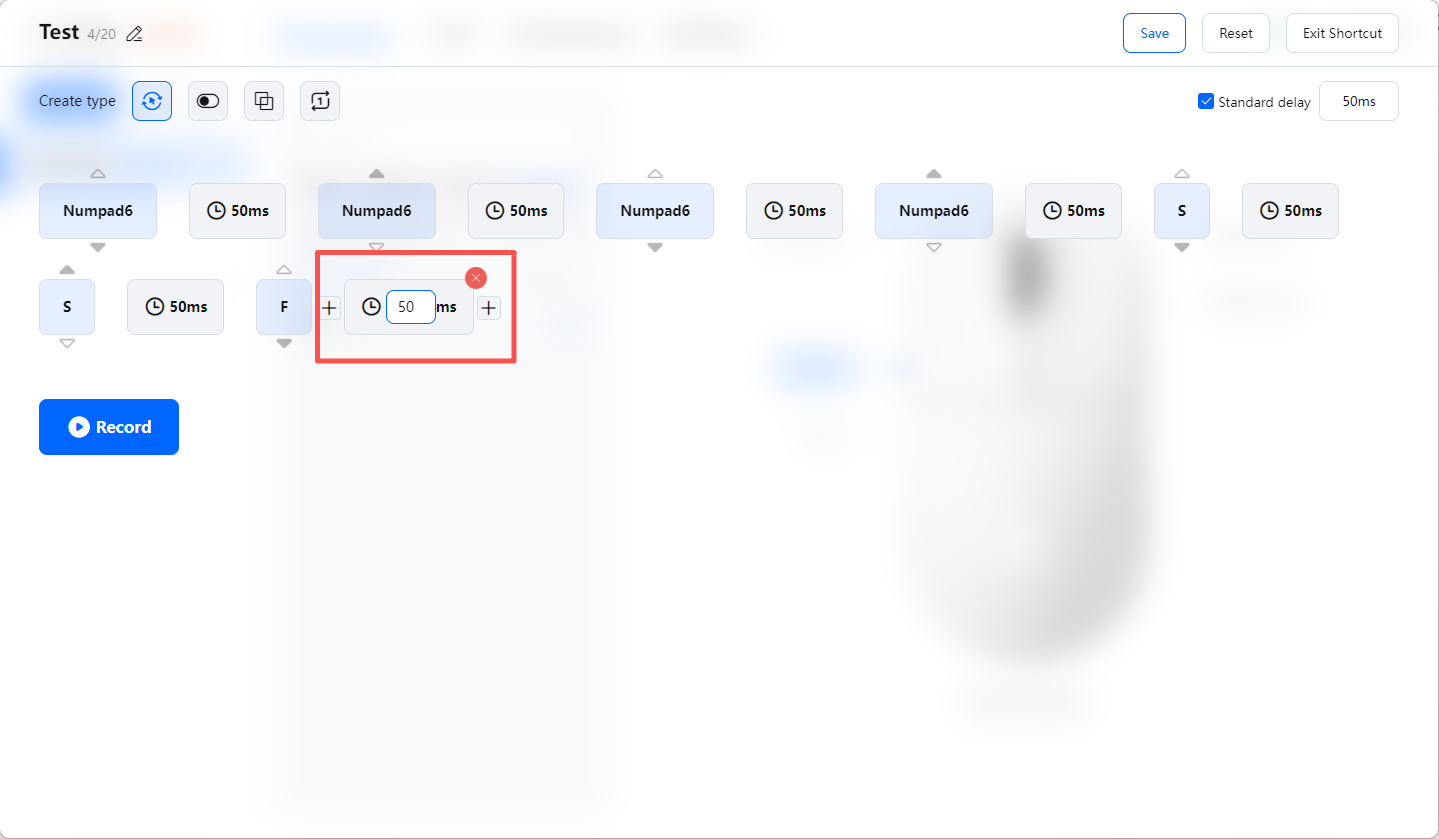

Edit Macro Timing
After recording, each action's delay can be modified individually.
You can:
- Edit delay values manually.
- Delete unnecessary actions.
- Insert additional delays.
- Reorder actions.
Tip
Shorter delays generally result in faster execution, while longer delays may improve compatibility with certain applications or games.

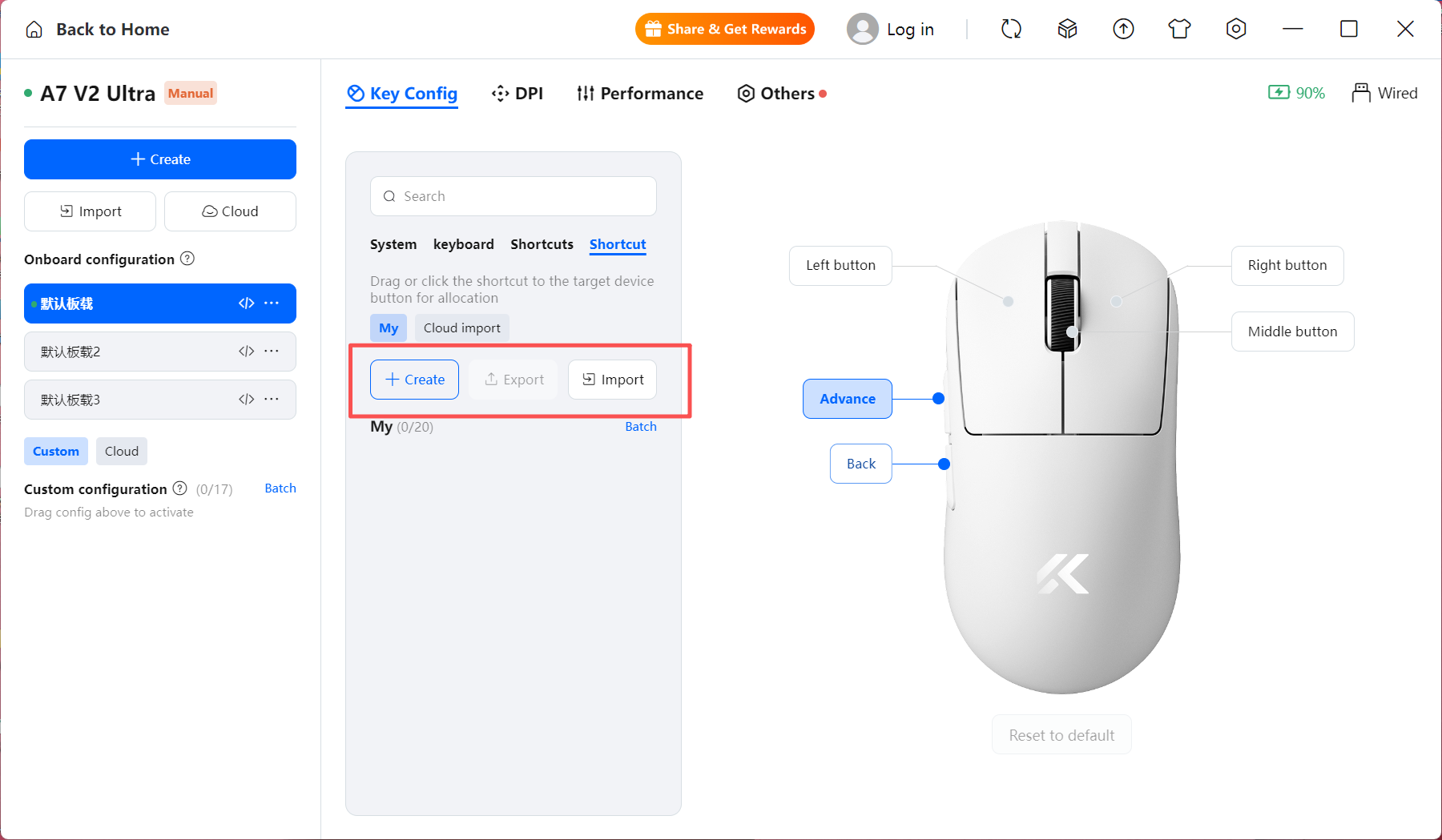

Import & Export Macros
MCHOSE HUB supports importing and exporting macro files for backup and sharing.
- Export macros for future use.
- Restore saved macro profiles.
- Transfer macros between supported devices.
11. DPI Settings
DPI (Dots Per Inch) determines how far the cursor moves relative to physical mouse movement.

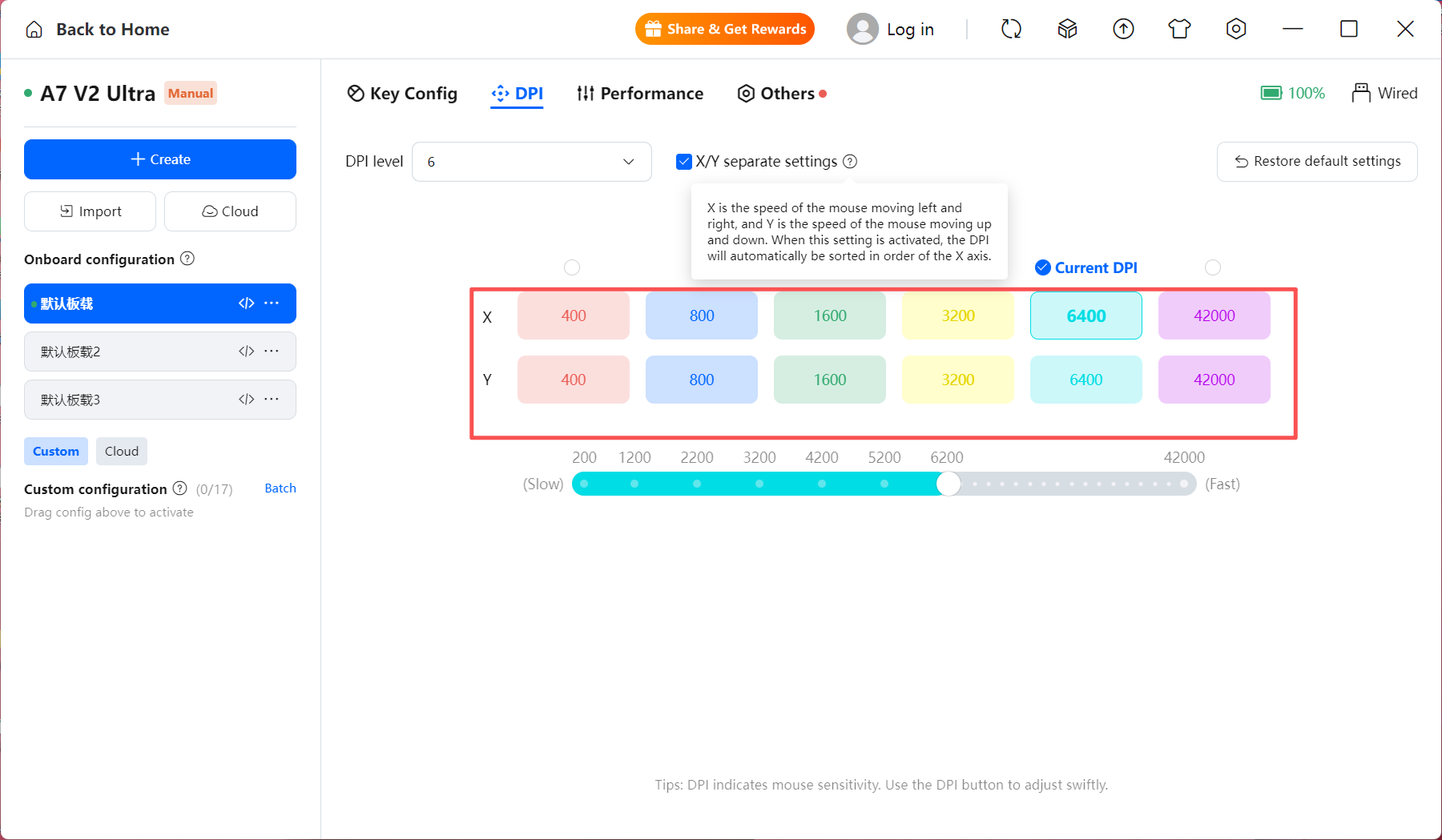

DPI Levels

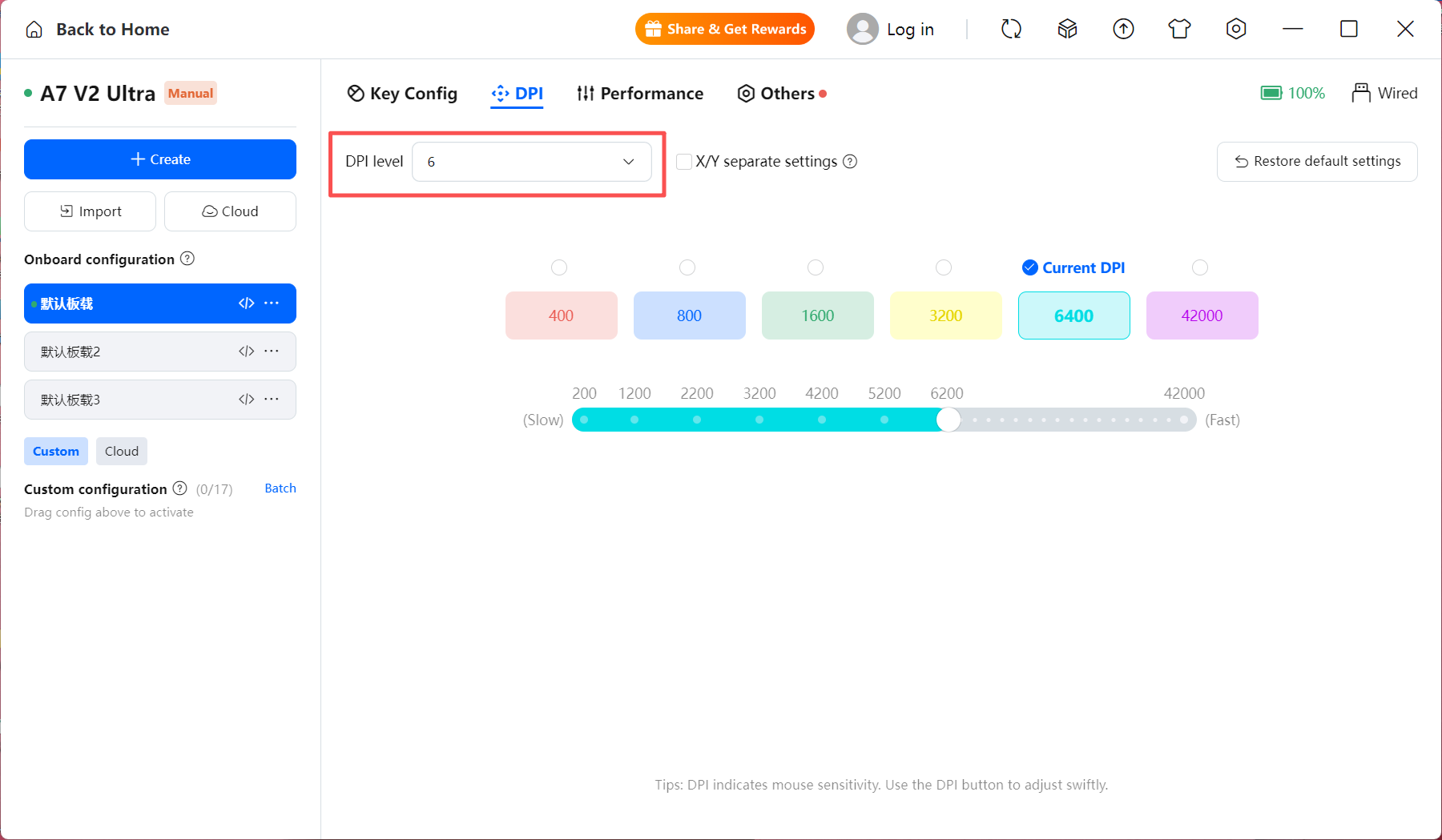

The A7 V2 supports up to six independent DPI levels, allowing quick switching using the DPI button.
| Setting | Description |
|---|---|
| Number of Levels | 1–6 configurable DPI stages |
| X/Y Axis | Independent horizontal and vertical DPI adjustment |
| Switching | Instant switching using the assigned DPI button |
Note
Higher DPI increases cursor speed, while lower DPI provides finer control. There is no universally "best" DPI—choose the setting that best matches your usage habits.
Independent X/Y DPI
MCHOSE HUB allows the horizontal (X-axis) and vertical (Y-axis) sensitivity to be configured separately.
- X Axis – Controls horizontal cursor movement.
- Y Axis – Controls vertical cursor movement.
This feature is useful for users who prefer different movement speeds in horizontal and vertical directions.
DPI Recommendations
| Scenario | Suggested DPI |
|---|---|
| Office Work | 800–1600 DPI |
| General Use | 1200–2000 DPI |
| FPS Games | 400–1600 DPI (based on personal preference) |
| High-Resolution Displays | 1600 DPI or above |
Recommendation
The preset DPI profiles included in MCHOSE HUB are intended as starting points. You can freely customize each level to suit your own workflow or gaming style.
12. Lighting Settings

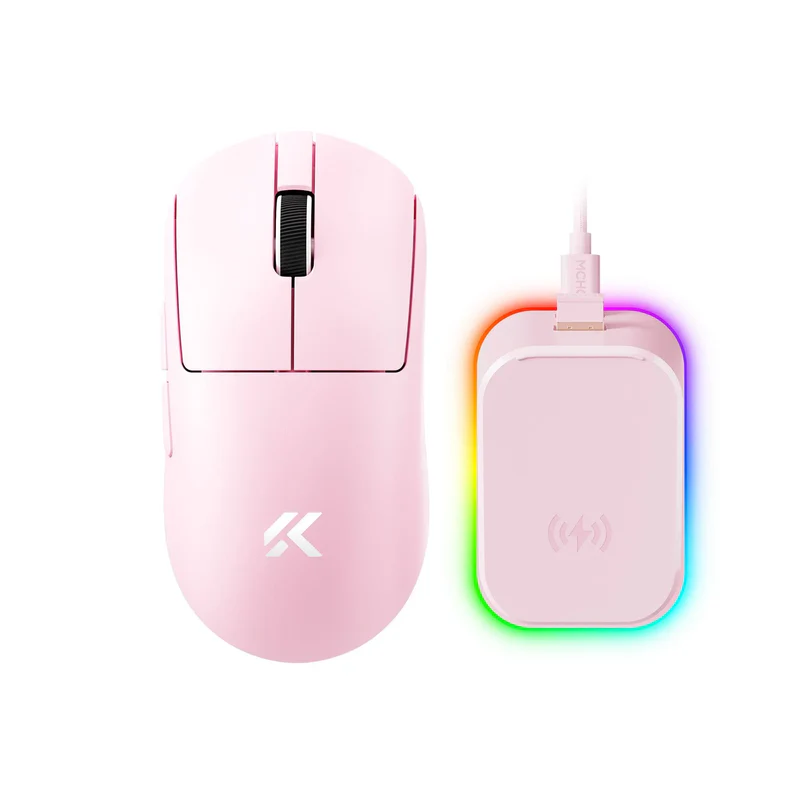

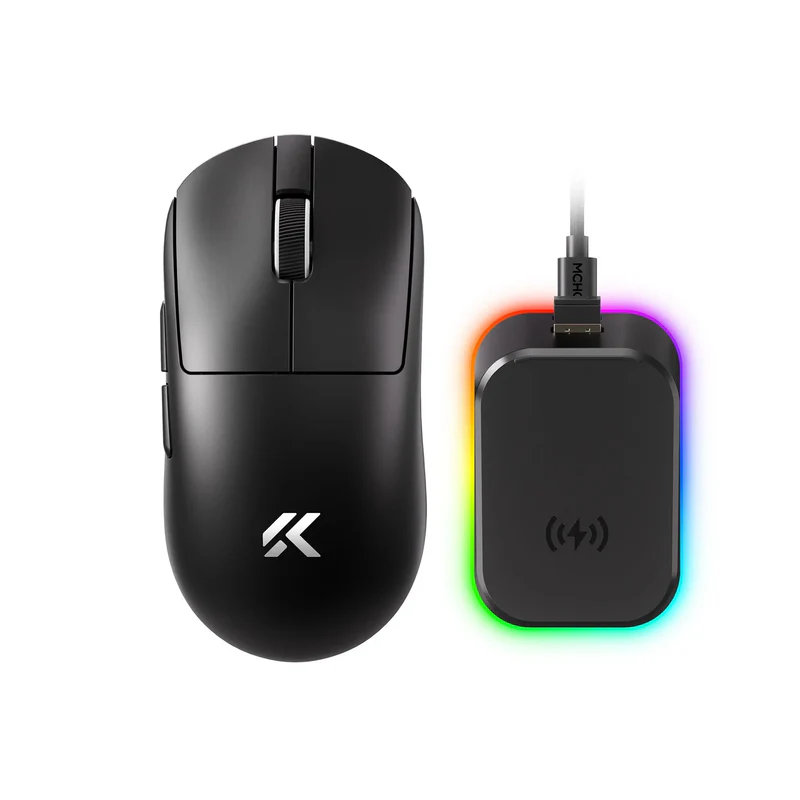

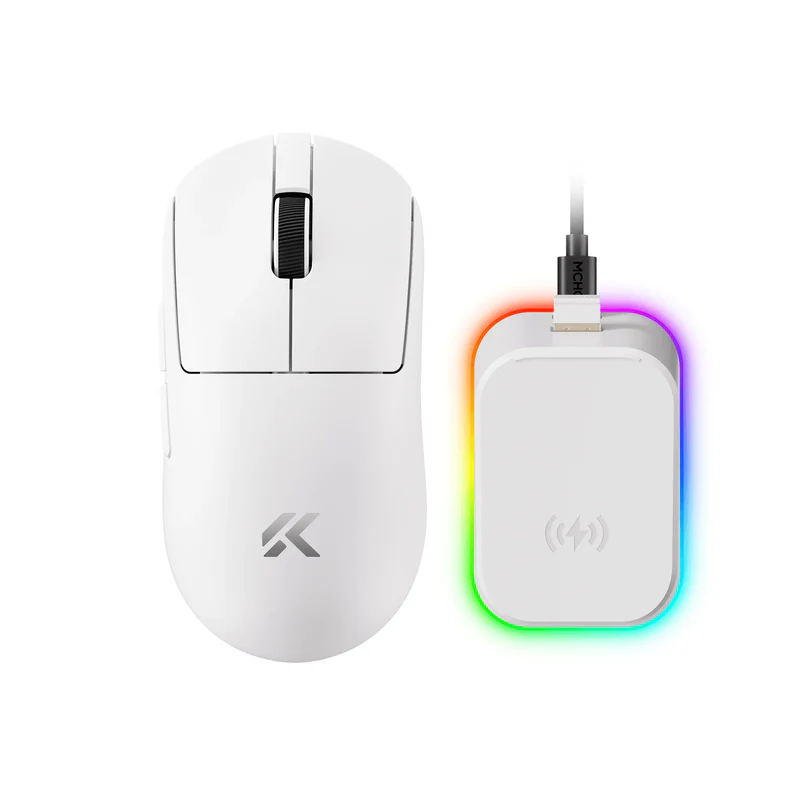

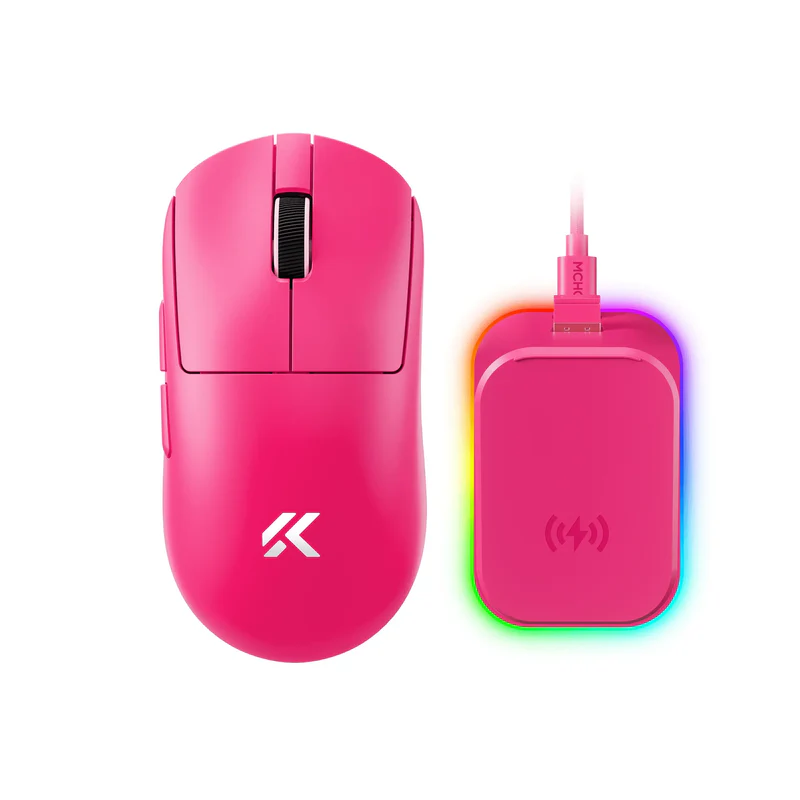

Lighting controls are available on supported models equipped with the optional magnetic charging dock.

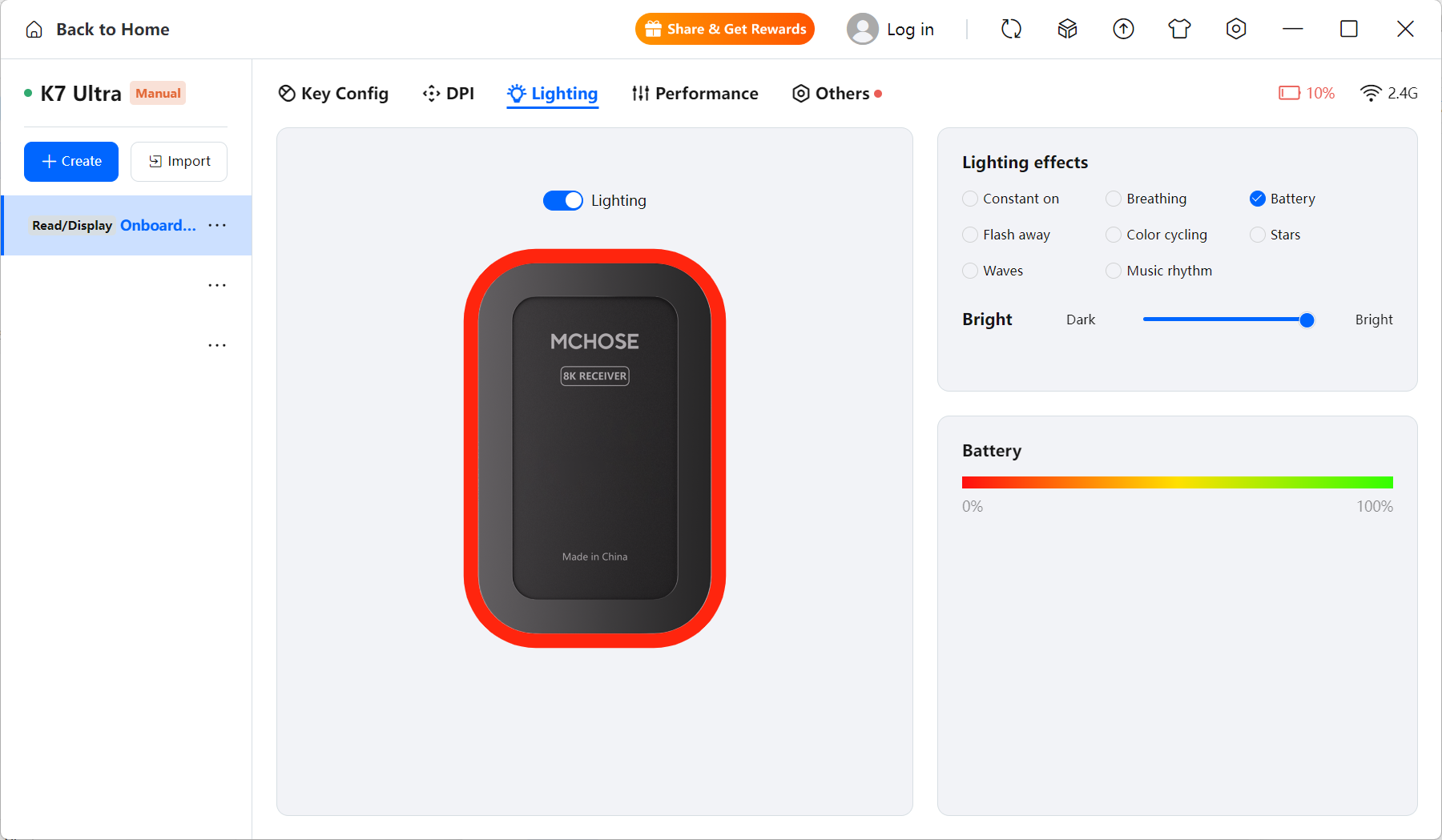

Within MCHOSE HUB, you can customize the dock lighting to match your desktop setup.
Depending on your model, available options may include:
- Lighting Effects
- Static Lighting
- Breathing Effect
- Brightness Adjustment
- Lighting On/Off
Note
Lighting customization is available only on models that include RGB charging dock functionality. Standard A7 V2 models without the charging dock do not support these lighting options.
13. Performance Settings
MCHOSE HUB provides a range of advanced performance options, allowing you to fine-tune the A7 V2 for different usage scenarios—from everyday productivity to competitive gaming.
Tip
Unless otherwise specified, all performance settings are stored in the mouse's onboard memory after they are applied.
Sleep Settings
The Sleep Settings feature helps extend battery life by automatically putting the mouse into sleep mode after a period of inactivity.
Default Sleep Behavior
- The mouse enters sleep mode after 3 minutes of inactivity by default.
- Available in 2.4GHz Wireless and BT modes.
- Sleep settings can be customized through MCHOSE HUB.
How to Change the Sleep Timer
- Open MCHOSE HUB.
- Navigate to Performance Settings.
- Select Sleep Settings.
- Choose your preferred timeout (such as 1 minute, 5 minutes, or Never).
- Apply the settings.
Tip
If you primarily use the mouse for gaming, setting a longer sleep timeout or disabling sleep can reduce the delay when resuming use.
Wake from Sleep
After entering sleep mode, the mouse can be reactivated as follows:
- Move the mouse.
- Press a mouse button.
Note for Optical Switch Models
Models equipped with optical switches cannot be awakened by button presses while sleeping. Simply move the mouse to wake it.
Polling Rate
Polling Rate refers to how frequently the mouse reports its position and button status to the computer.
| Polling Rate | Reports Per Second | Recommended Usage |
|---|---|---|
| 125Hz | 125 | BT Mode (Fixed) |
| 500Hz | 500 | Office & General Use |
| 1000Hz | 1000 | Recommended for Most Users |
| 2000Hz | 2000 | Competitive Gaming |
| 4000Hz | 4000 | High-Performance Systems |
| 8000Hz | 8000 | Professional Esports & Supported Models |
Recommendation
- Office / Productivity: 500–1000Hz
- Gaming: 1000Hz or higher
- Competitive FPS: 4000Hz–8000Hz (supported hardware only)
Important
Higher polling rates require more CPU resources. On lower-performance systems or unsupported games, extremely high polling rates may reduce FPS or affect overall system performance.
Button Debounce Time
Button Debounce Time controls how long the mouse waits before registering another click after a button press.
| Setting | Effect |
|---|---|
| Lower Value | Faster click response with a higher chance of accidental double-clicks caused by switch bounce. |
| Higher Value | More stable click detection with reduced risk of unintended double-clicking. |
Recommendation
For most users, a debounce time between 8–12 ms provides an excellent balance between responsiveness and stability.
Lift-Off Distance (LOD)
Lift-Off Distance (LOD) determines the height at which the sensor stops tracking when the mouse is lifted.
| LOD Setting | Behavior |
|---|---|
| 0.7 mm | Maximum precision for supported mouse pads. |
| 1 mm | Recommended for most gaming mouse pads. |
| 2 mm | Better compatibility with a wider range of surfaces. |
Note
Very low LOD settings require a compatible mouse pad. Some glass or highly reflective mouse pads may not perform reliably at 0.7 mm.
Ripple Control
Ripple Control helps smooth cursor movement by filtering small sensor fluctuations at high DPI levels.
| Enabled | Disabled |
|---|---|
| Smoother cursor movement at high DPI. | Maximum raw sensor responsiveness. |
| Recommended for very high DPI settings. | Recommended for competitive gaming. |
Recommendation
If your DPI is below approximately 3200, disabling Ripple Control usually provides the most direct and responsive tracking experience.
Straight Line Correction
Straight Line Correction automatically reduces small deviations during horizontal movement.
| Enabled | Disabled |
|---|---|
| Smoother straight-line movement. | True 1:1 sensor tracking. |
| Helpful for office work and drawing. | Recommended for FPS, RTS, and MOBA games. |
Gaming Recommendation
If accurate raw tracking is important, such as in FPS or competitive esports titles, it is recommended to disable Straight Line Correction.
Motion Sync
Motion Sync synchronizes sensor data with USB reports to improve tracking consistency.
| Enabled | Disabled |
|---|---|
| Smoother tracking with more consistent cursor movement. | Lowest possible input latency. |
| Slight increase in input latency. | Preferred for competitive esports. |
Recommendation
For everyday use, Motion Sync can improve cursor smoothness. Competitive gamers seeking the lowest latency may prefer to disable it.
14. Sensor Angle Adjustment
Sensor Angle Adjustment allows you to rotate the sensor's tracking axis to better match your natural mouse movement. This feature can improve control for users whose hand movement is slightly angled rather than perfectly horizontal.
Supported Models
This feature is available only on models equipped with the PAW3395 or PAW3950 sensor.
How to Configure
- Open MCHOSE HUB.
- Go to Performance Settings.
- Select Sensor Angle.
- Adjust the angle to match your preferred hand movement.
- Click Apply to save the settings.
Recommendation
For most users, the default setting of 0° provides the most accurate tracking. Adjust this option only if you consistently move the mouse at an angle.
15. Performance Modes
The A7 V2 supports multiple performance modes, allowing you to balance tracking performance, responsiveness, and battery life.
| Mode | Sensor FPS | Best For |
|---|---|---|
| Performance Mode | Approx. 1K FPS | Daily use and extended battery life |
| Competitive Mode | Approx. 13K FPS | Gaming with high polling rates enabled |
| Hyper Competitive Mode* | Over 20K FPS | Maximum tracking performance for esports |
*Model Compatibility
Hyper Competitive Mode is available only on supported models equipped with the PAW3950 sensor.
Performance Mode
Performance Mode is optimized for balanced performance and lower power consumption.
- Improved battery life
- Stable performance for everyday use
- Recommended for office work and general gaming
Competitive Mode
Competitive Mode increases the sensor frame rate to improve tracking accuracy during fast movements.
- Higher sensor sampling frequency
- Designed for high polling rate operation
- Suitable for fast-paced gaming
Hyper Competitive Mode
Hyper Competitive Mode unlocks the highest available sensor performance for supported models.
- Sensor frame rate exceeds 20,000 FPS
- Improved tracking accuracy during rapid movement
- Optimized for competitive FPS gaming
Important
Hyper Competitive Mode increases power consumption. If maximizing battery life is your priority, consider using Performance Mode instead.
16. Understanding Sensor FPS
Sensor FPS (Frames Per Second) refers to how many surface images the optical sensor captures every second.
Unlike Polling Rate, which determines how often data is sent to the computer, Sensor FPS determines how frequently the sensor analyzes movement.
| Feature | Purpose |
|---|---|
| Sensor FPS | Measures sensor tracking performance and movement accuracy. |
| Polling Rate | Measures how frequently movement data is transmitted to the computer. |
How They Work Together
A higher Sensor FPS improves tracking precision, while a higher Polling Rate reduces communication latency. Together, they provide a smoother and more responsive experience.
17. Firmware Information
MCHOSE regularly releases firmware updates to improve stability, compatibility, and overall performance.
Check Firmware Version
- Open MCHOSE HUB.
- Connect the mouse using USB or 2.4GHz Wireless mode.
- Open the Settings page.
- View the current firmware version.
Note
Firmware updates are available only when the mouse is connected in Wired or 2.4GHz Wireless mode. BT mode does not support firmware updates.
Firmware Update Recommendations
- Keep both the mouse firmware and receiver firmware up to date.
- Use the original USB Type-C cable during updates whenever possible.
- Do not disconnect the mouse while the update is in progress.
Important
If both the receiver and the mouse require updates, always update the receiver firmware first, followed by the mouse firmware.
18. Factory Reset
If you experience configuration issues or unexpected behavior, restoring the mouse to its factory settings may help.
How to Reset
- Open MCHOSE HUB.
- Navigate to Settings.
- Select Factory Reset.
- Confirm the reset.
- Wait for the process to complete.
Note
Factory Reset restores all settings—including button assignments, DPI profiles, macros, lighting, and performance options—to their default values.
19. Best Performance Recommendations
For the best experience with your A7 V2 mouse, we recommend the following settings based on your usage scenario.
| Scenario | Recommended Settings |
|---|---|
| Office & Productivity | 500–1000Hz Polling Rate, Performance Mode, Motion Sync Enabled |
| General Gaming | 1000Hz Polling Rate, Competitive Mode, 1mm LOD |
| Competitive FPS Gaming | 4000–8000Hz Polling Rate*, Hyper Competitive Mode, Motion Sync Disabled, Straight Line Correction Disabled |
| Maximum Battery Life | Performance Mode, Lower Polling Rate, Longer Sleep Timeout |
*System Requirements
Ultra-high polling rates (such as 4K or 8K) require compatible hardware and may increase CPU usage. If you notice lower FPS or reduced system performance, lower the polling rate to improve overall stability.
You're All Set!
Your MCHOSE A7 V2 is now ready to use. Customize your preferred settings in MCHOSE HUB to create the experience that best matches your workflow or gaming style.
If you encounter any issues, please refer to the A7 V2 Driver & Hardware Issues or A7 V2 Mouse FAQ & Troubleshooting Guide for additional troubleshooting steps.
Comments
0 comments
Please sign in to leave a comment.
