Advanced Key Settings
| Feature | Full Name | Explanation |
|---|---|---|
| RS | Rapid Switch | One key performs two actions based on press depth. |
| SOCD | Simultaneous Opposite Cardinal Direction | Determines which opposite key (like left/right) takes priority when pressed together. |
| DKS | Dynamic Keystroke | One key can trigger up to 4 actions depending on press depth. |
| MT | Mod Tap (Hold/Tap) | One key does different actions when tapped quickly or held. |
| TGL | Toggle | Tap to toggle on/off; hold to use normally. |

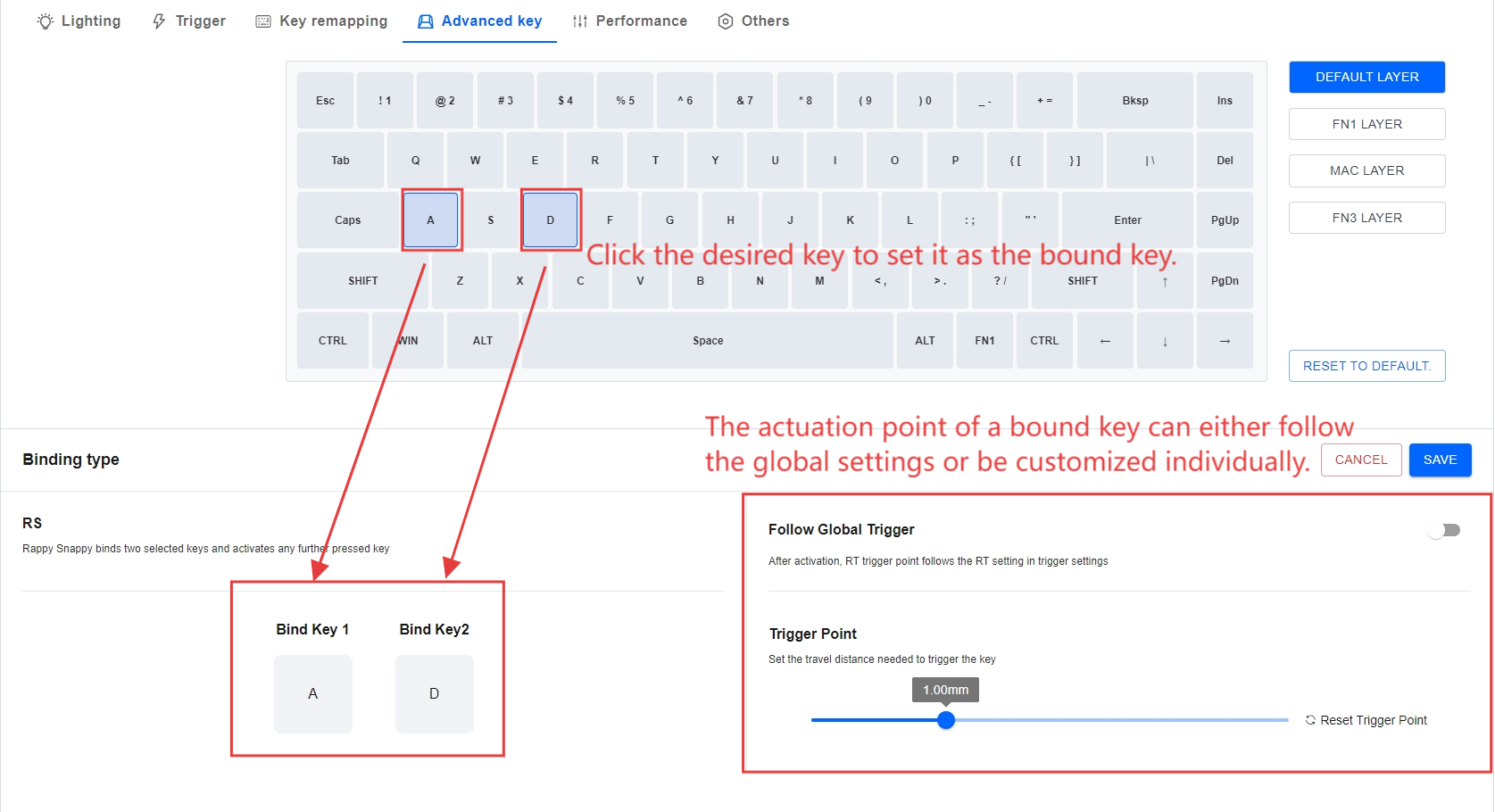

RS (Rapid Switch)
- Bind two keys; function depends on press depth.
- Setup: Select 2 keys and define their actuation depths.
Example:

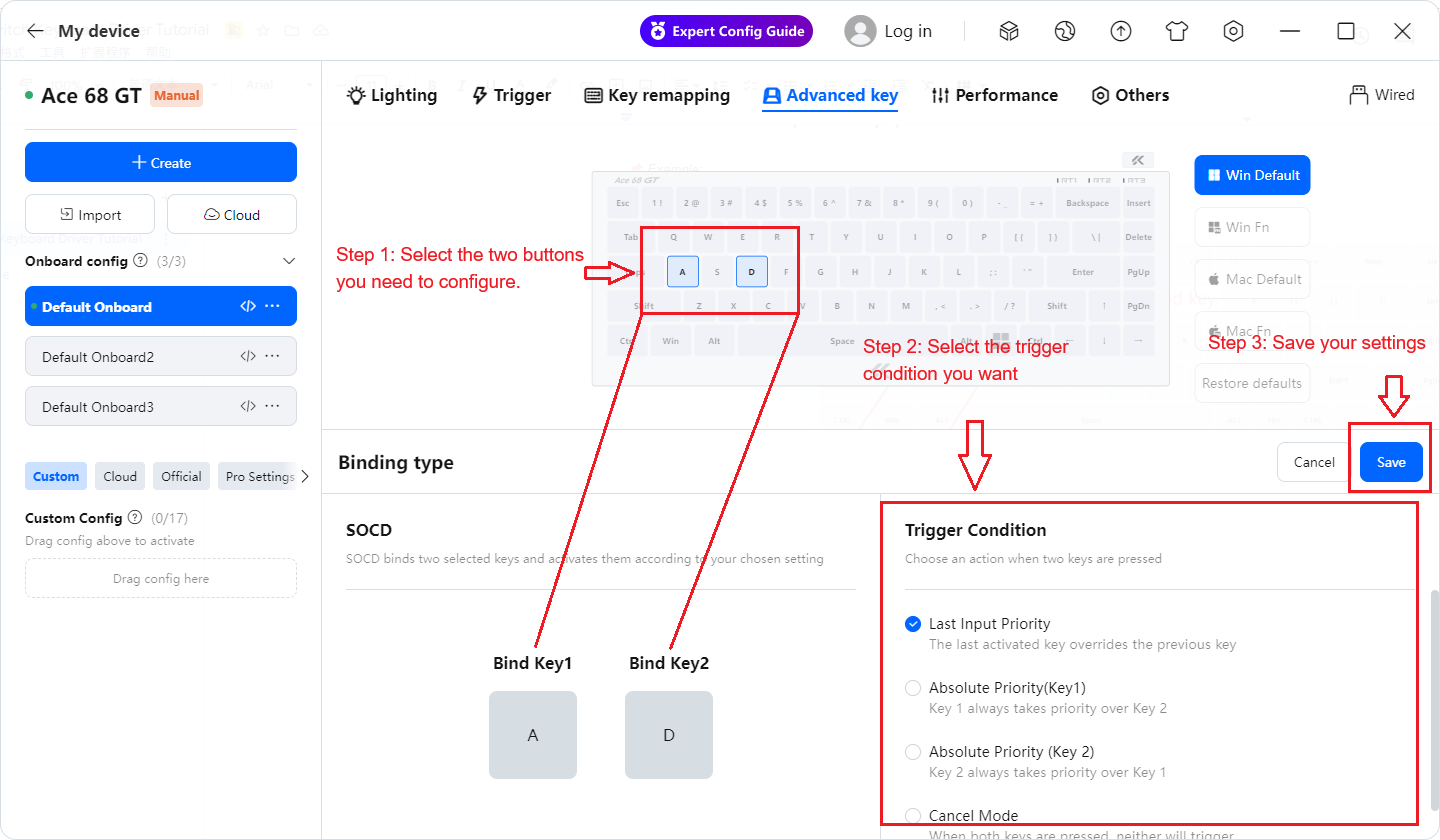

SOCD (Simultaneous Opposite Cardinal Direction)
Allows you to press opposing directions smoothly (like left and right simultaneously) without any issues, ensuring better control and fluid movements.
- Bind two keys and trigger based on priority rules.
- Modes available:
- Last Input Wins
- Key 1 Priority
- Key 2 Priority
- Cancel Both (Neutralize input)
Example:

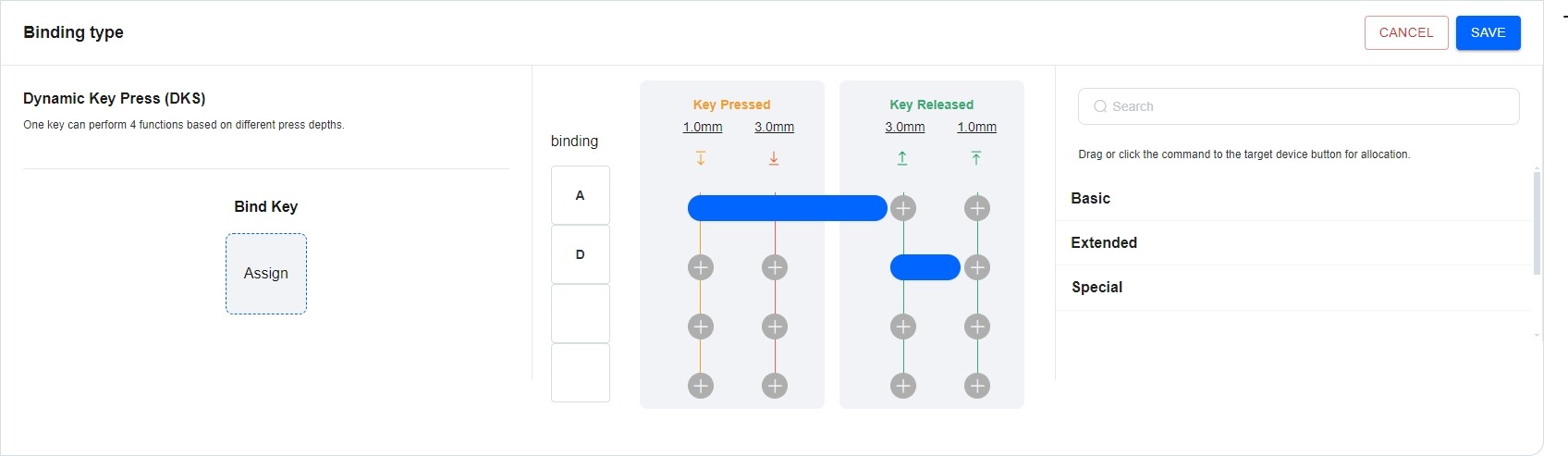

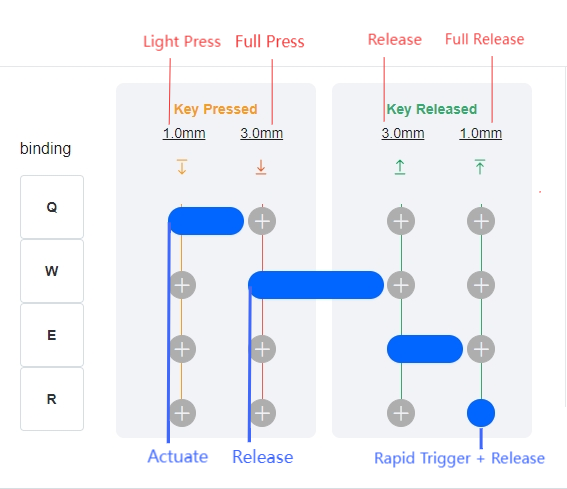

DKS (Dynamic Keystroke)
- Assign up to 4 functions to one key based on depth zones.
- How to set:
Bind 1 key → Add 1–4 actions → Set depth range for each action.
Example:

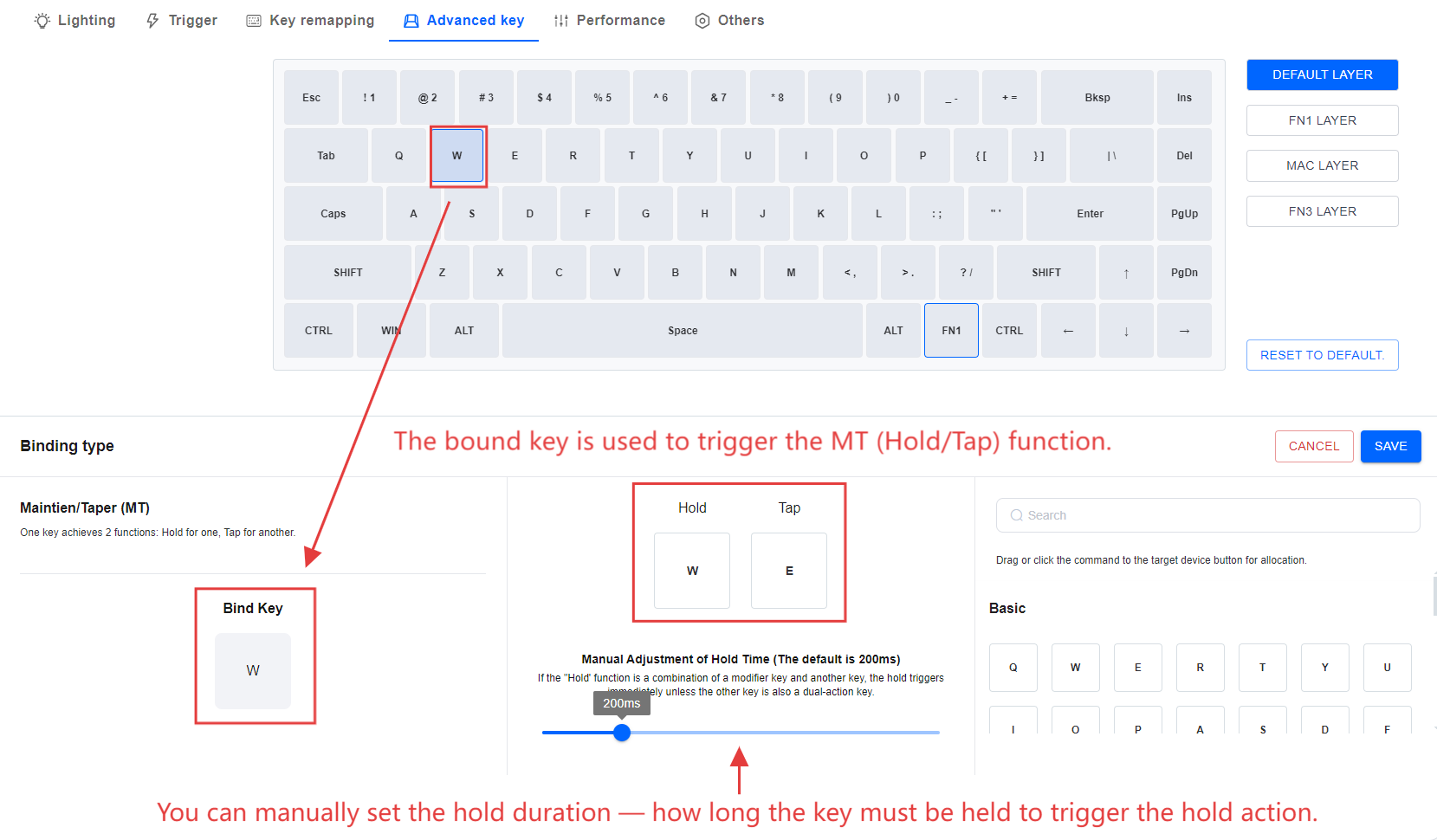

MT (Hold/Tap)
- Bind 1 key to perform two actions:
- Tap = Action 1
- Hold = Action 2
- How to set: Choose 1 key, 2 actions, and define hold duration.
Example:

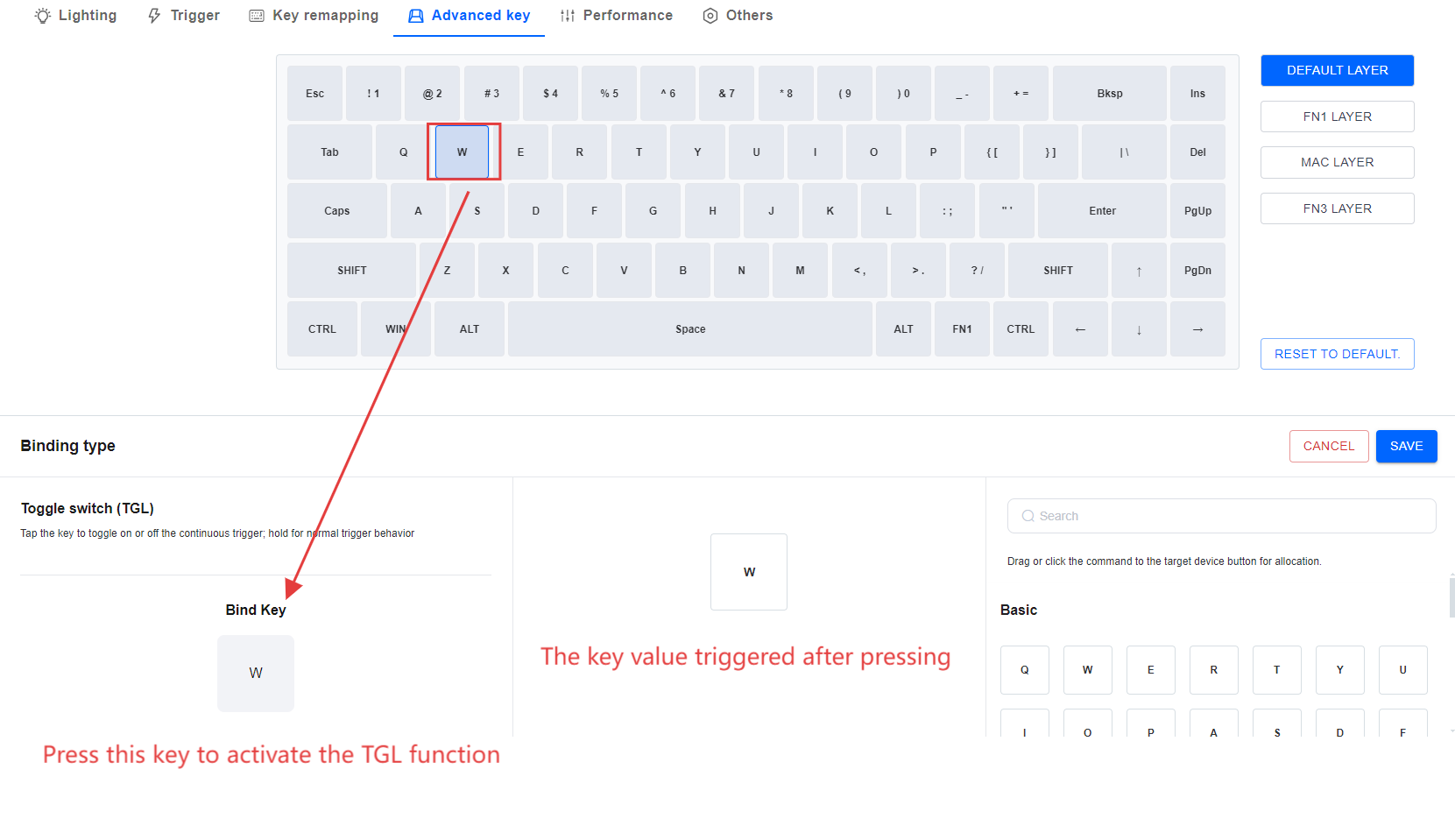

TGL (Toggle Switch)
- Tap once to toggle the continuous trigger
- Hold to use as normal trigger key
Example:
Important Notes
- Advanced features can be set up only in the Custom Profile.
- They work only with the Default or Mac Layer.
- Some functions like SOCD might disable Rapid Trigger (RT); you'll need to configure these separately.
- To reset to factory settings, hold Fn + Space for 5 seconds (this will clear all remaps).
