Trigger Settings

Actuation Point Adjustment

• Standard actuation range ( 0.1mm – 3.4mm)
• Rapid Trigger (RT) supports 0.005mm to 3.4mm
  • If your RT settings are ≤  0.04mm ultra-low actuation, you’ll need to enable “Berserk Mode”(on the Performace setting) to improve trigger reliability.

Preset & Custom Profiles

• Comes with 3 built-in profiles:

  1. Beginner Configuration – Balanced and easy to control

  2. FPS Configuration – Prioritizes rapid deactivation

  3. Extreme Configuration – Max performance with minimal key travel

• Custom profiles allow you to set different actuation points for specific keys (e.g. WASD for gaming)

Dead Zone Settings

How to Adjust Deadzone Parameters

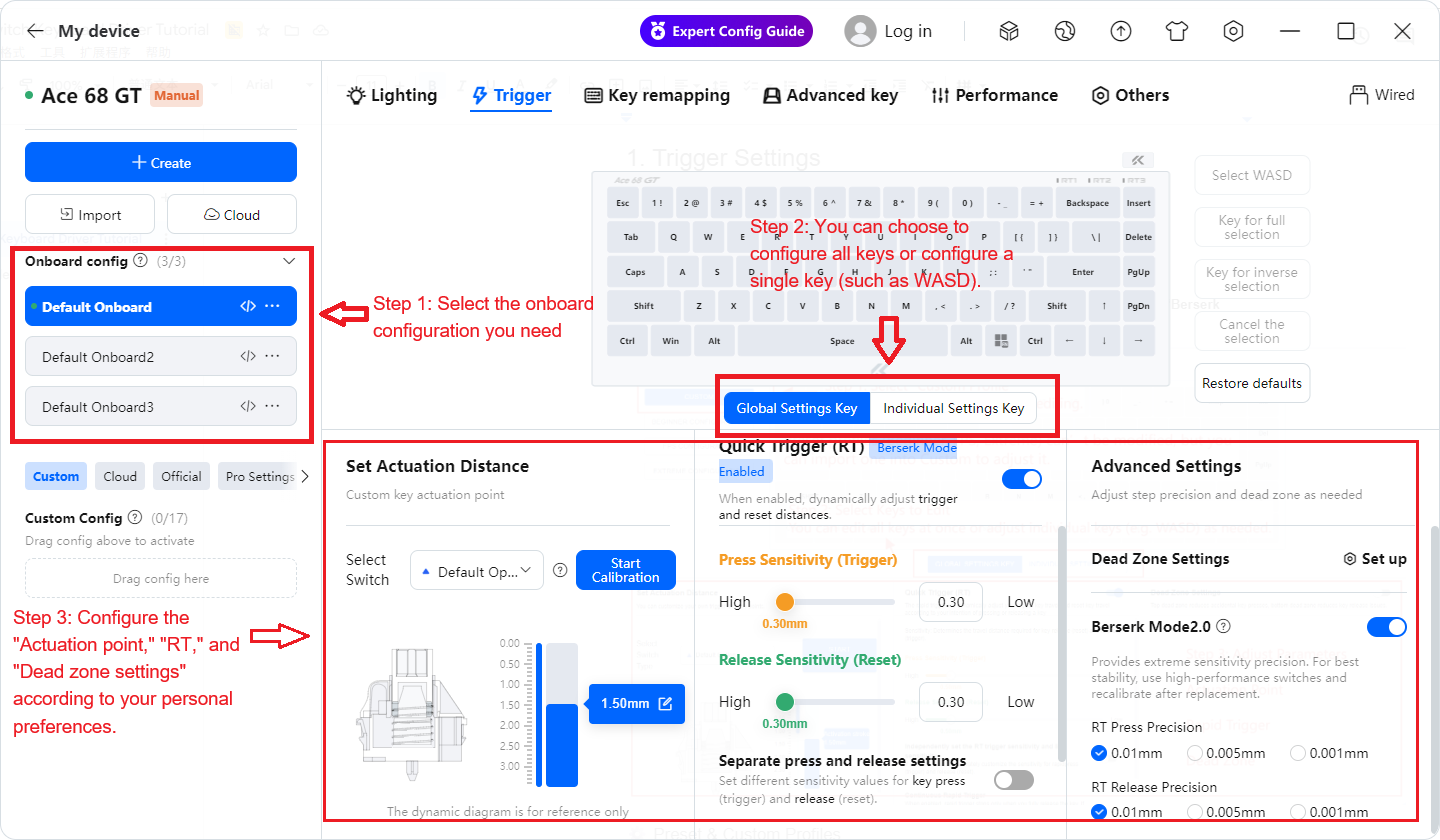

1. Access the Trigger Settings Page
   Open the driver software and go to the Trigger Settings page—this is required to adjust dead zone parameters.

2. Select a Custom Profile
   Only the Custom Configuration allows you to modify dead zone settings. Default presets like Beginner, FPS configuration, or Extreme do not allow changes.

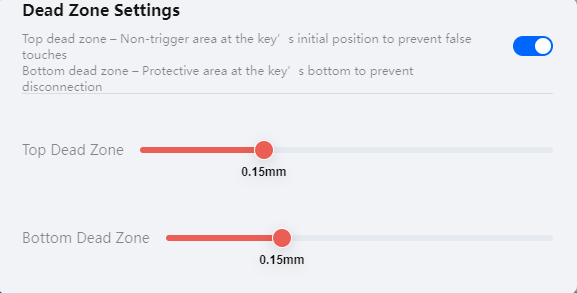

3. Adjust Deadzone Ranges
   • Top Deadzone (Prevent Mistouch): Recommended to keep the default value of 0.00mm
   • Bottom Deadzone (Prevent Unintended Release): Recommended to set to 0.05mm. You can adjust using the slider.
4. Optimization Tips
   • If Rapid Trigger (RT) sensitivity is set below 0.04mm, it’s advised to also set a bottom dead zone to prevent unintended key behavior.
   • For extreme settings, enable Stability Mode to improve key response consistency.

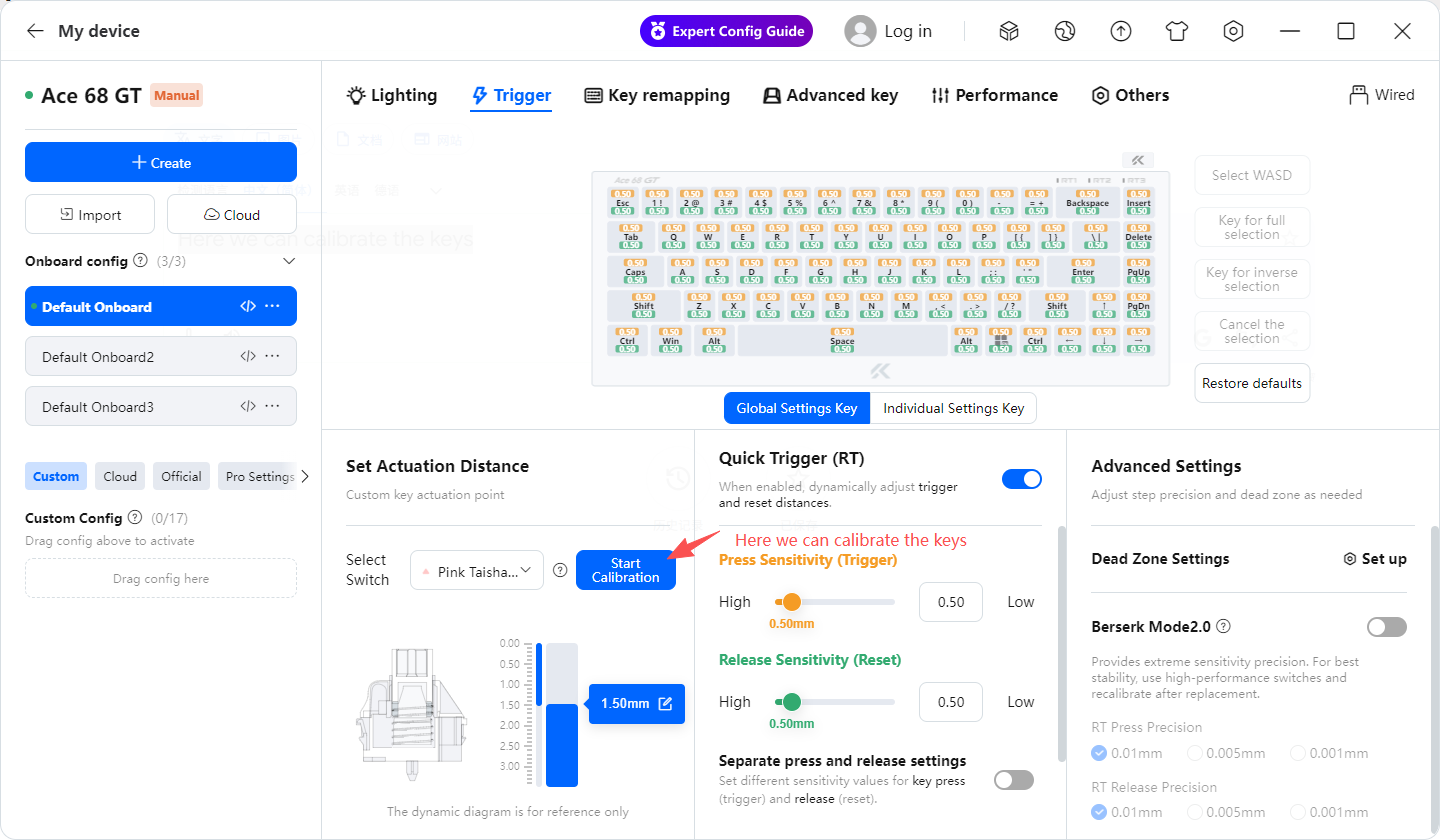

5. Calibration
   After changes, it’s recommended to manually calibrate:
   • Either hold Fn + Space for 5 seconds to reset,
   • Or use the calibration button in the software.

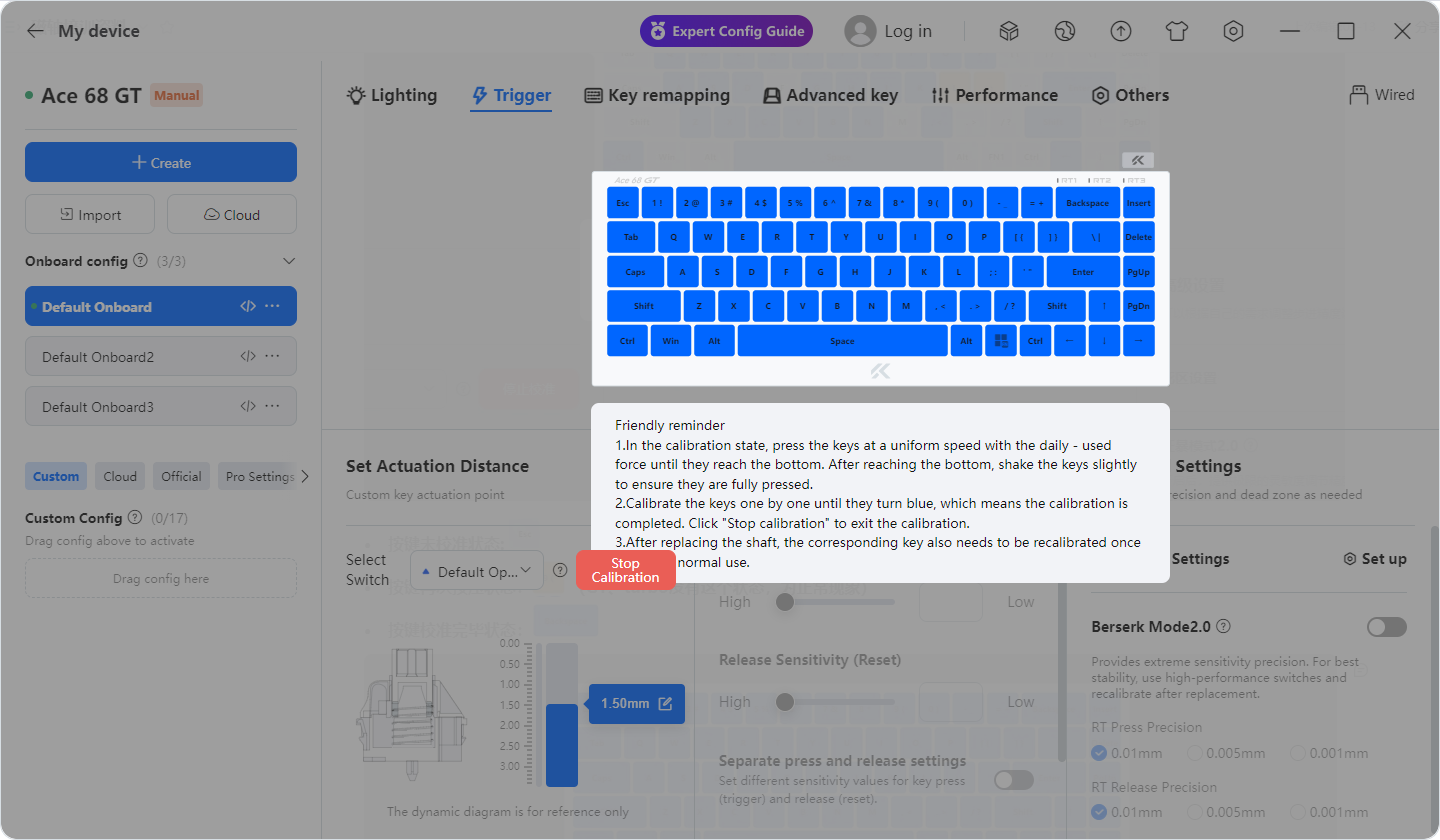

   • When calibration is complete, key LEDs should show a solid blue light. Click stop calibration

Orange: Indicates that the key has not been calibrated successfully. The key trigger has been detected and needs to be pressed again until the calibration is successful. (This status is not present on the Ace 68 GT/turbo, which is normal.)

Gray: Indicates that the key trigger has not been detected and needs to be pressed multiple times until the calibration is successful.

Blue: Indicates that the key has been calibrated successfully
